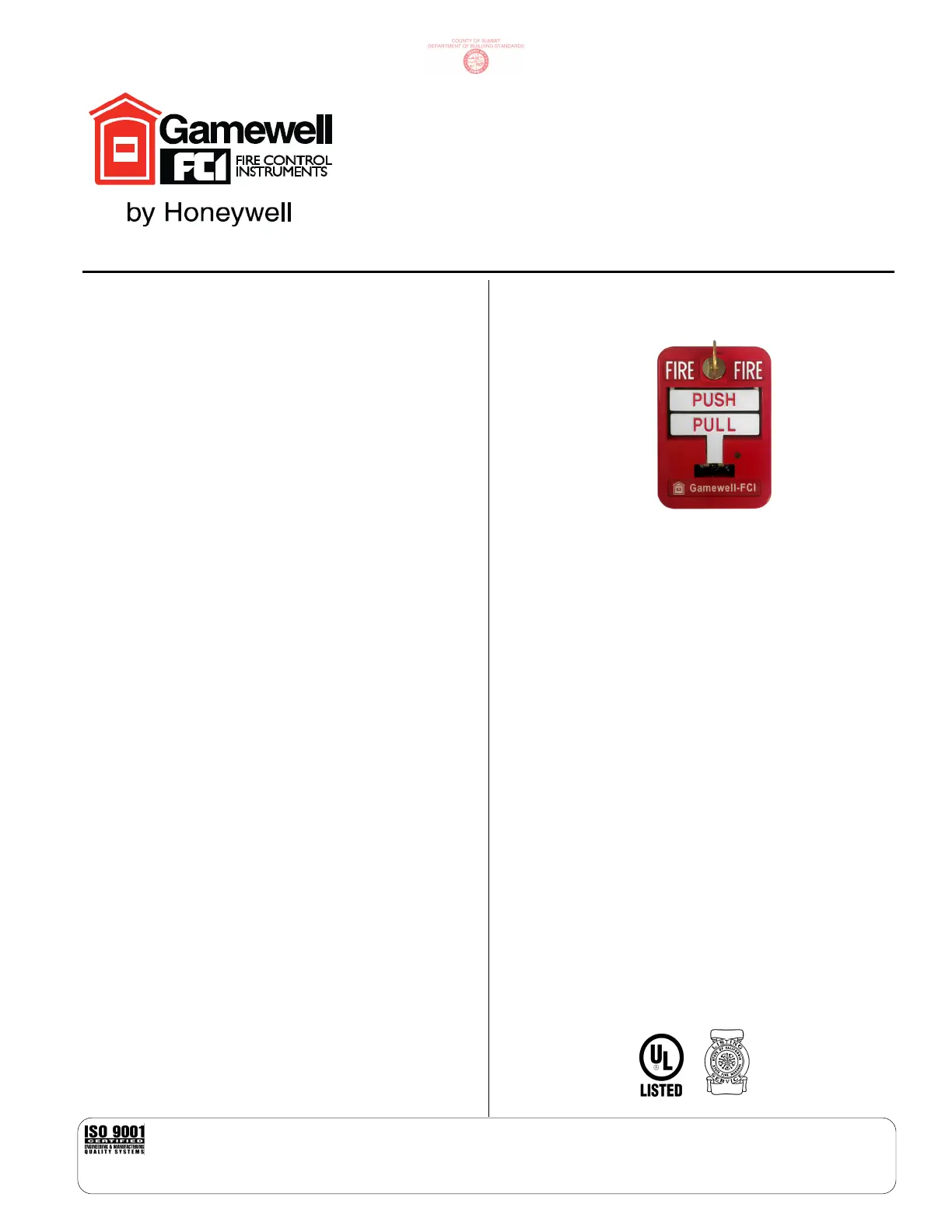

MS-95, MS95-T
Addressable Manual Pull Station
Description
The Gamewell-FCI MS-95/MS-95T Addressable Manual
Pull Station is a non-coded, single-action, manual pull sta-
tion with a key-lock reset feature. Its rugged toggle switch
design offers exceptional resistance to accidental alarms
caused by a sudden vibration or shock. The MS-95 can be
used for surface and semi-flush installations. It is compati-
ble with the following Gamewell-FCI addressable fire alarm
control panels (FACPs).
• 600 Series, IdentiFlex 602
•E3 Series
®
, ILI95-E3 Series
• S3 Series, SLC95-PM
The MS-95/MS-95T are approved to UL
®
Standard 38 for
manual pull stations that comply with the architectural
requirements in all building interiors, and is readily accessi-
ble in a fire emergency. In addition, the pull stations meet
the following American with Disabilities Act (ADA), AG
Controls and Operating Mechanisms Guidelines
(Section 4.1.3).
•5 lb. (2 kg.) maximum pull force.
• Mounting installation height of 4 ft. (1.2m), (42” (106.48 cm)
min. to 48” (121.92 cm) max. off the center).
Operations
To activate the manual pull station, press the lever
(marked, “PUSH”) inward. Then, pull the handle (marked,
“PULL”) downward until the handle locks into place. After
the handle is pulled, this lever locks-in the alarm position
and remains there until it is manually reset.
To reset the alarm lever and release the front cover of the
pull station, insert and turn the key on the front of the pull
station. This action unlocks the front cover and lowers the
cover. After the front cover is lowered, the toggle switch is
reset.
An optional breakglass rod may be used with all pull sta-
tions. The self-clearing design prevents jamming of the
station and there is no danger to the operator from broken
particles of glass. Space is provided within the station
housing for storage of an additional replacement glass rod.
The MS-95 connects directly to the analog addressable cir-
cuit via two wires. The electronic circuitry has been
designed to transmit data that can be interpreted as the
following three output operations:
• normal standby operation
• alarm operation
• trouble operation
In its standby mode of operation, the pull station’s circuit
monitors the switch for alarm conditions. A trouble condi-
tion occurs when the pull station is addressed by the con-
trol panel and either reports back a trouble response or
does not respond at all. With the standard priority interrupt
feature, the MS-95 will report its condition instantly to the
Gamewell-FCI FACP.
E3 Series
®
is a registered trademark of Honeywell International Inc.
UL
®
is a registered trademark of Underwriter’s Laboratories, Inc
Features
• Complies with UL
®
Standard 38
• Meets ADA AG Controls and Operating Mechanisms
Guidelines requirements for a 5 lb. pull force and
complies with the 4 ft. (1.2m) mounting height
• Compatible with the following Gamewell-FCI,
addressable fire alarm control panels (FACP):
- 600 Series, IdentiFlex 602
- E3 Series
®
, ILI95-E3 Series
- S3 Series, SLC95-PM
• Constructed of durable die-cast metal
• Designed for use as a compact unit that blends with the
interior
• Contains a recessed pull lever that prevents accidental
operation
• Includes a key reset option
• Used for surface or semi-flush installations
• Shows a visible status LED
• Provides field programming
• Offers both wire and terminal block, single action
options
• Available in the terminal block model (MS-95T)
MS-95/MS-95T
7300-1703:0136
SIGNALING
S281
