Before You Begin
Before you begin, check that you have received all of the parts listed below. If any parts are
missing or damaged, contact your dealer immediately.
• Camera
• Installation CD
• Quick installation guide
• Allen key (L-wrench)
• Self-tapping screws (×4)
• Plastic wall anchors (×4)
• Mounting template
Required tools
• Phillips screwdriver
• Drill with appropriate bit for pre-drilling wall anchor holes
CAUTION Installation and servicing should be performed only by qualified and
experienced technicians to conform to all local codes and to maintain your warranty.
Preparing the Mounting Surface
1. Inspect the site where you want to install the camera. The mounting surface must be
flat and capable of supporting at least three times the weight of the camera.
2. Remove the backing from the mounting template sticker and affix the sticker to the
mounting surface.
Note If you are using the side exit for the cable, note the orientation of the cable
exit notch. In outdoor installations the notch should point downwards to prevent
water from entering the camera housing.
3. Drill three screw holes at the locations indicated on the mounting template sticker
and insert the three supplied plastic anchors in the holes.
4. If you want to store the cables inside the wall or ceiling, drill a hole at the cable exit
position on the mounting template and then pull the cables through the hole.
Mounting the Camera
1. If local storage is needed, insert a microSD card into the microSD card slot according
to the following steps:
a. Use a Phillips screwdriver (not supplied) and remove
the control panel cover on the outside of the camera.
b. Insert the microSD card into the microSD card slot as
shown in the picture to the right.
c. Replace the control panel cover.
2. Connect the camera with the Ethernet cable and the power cable.
a. Connect one end of the Ethernet cable to the RJ-45 port on the camera.
b. If the other end of the Ethernet cable is NOT connected to a PoE (Power-over-
Ethernet) switch or NVR, connect the power connector of the camera to a 12 VDC
power source.
3. Attach the camera assembly to the mounting surface using the supplied screws.

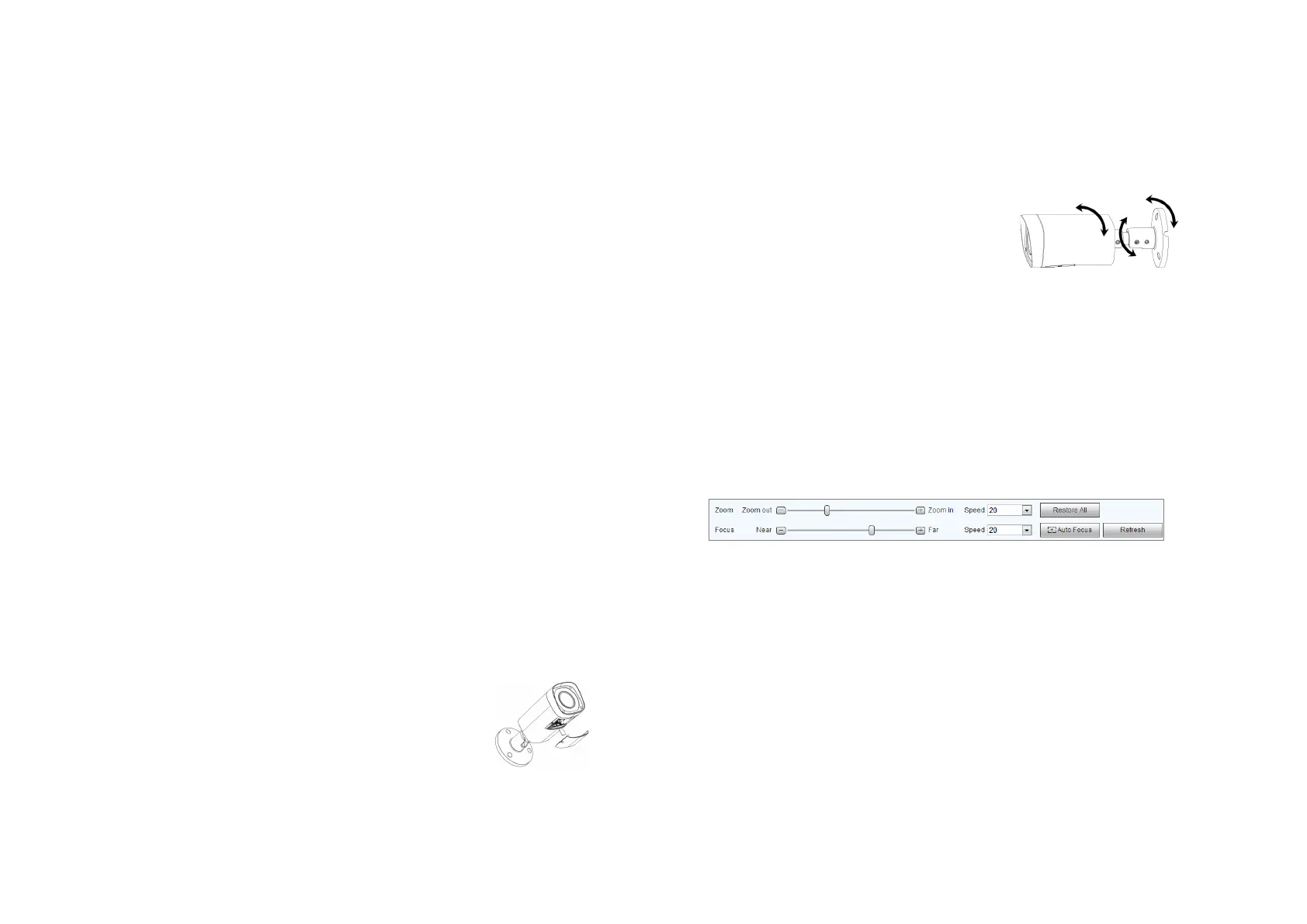

Aiming the Camera
1. Use the supplied Allen key to loosen the adjusting
screws on the bracket arm.
2. Set the camera to the desired position.
3. Tighten the adjustment screws.
Adjusting the Zoom and Focus
If the camera is connected to the PoE port of a Honeywell Embedded NVR, you can log on
to the camera directly from the NVR.
To log on to the camera from a PC:
1. Install the Honeywell Config Tool from the installation CD.
2. Use the Config Tool to discover the camera and open the camera’s webpage.
3. Log on to the camera as the admin user. The default user name is admin (case-
sensitive) and the default password is 1234.
Note Only Internet Explorer 11 and Firefox 46.0.1 (or later) browsers are supported.
4. Go to Setup CameraConditionsZoom and Focus. The following panel
appears:
• Click Zoom in + or Zoom out - to zoom in or out.
• Click Near - or Far + to focus near or far, or click Auto Focus to enable auto
focus.
