SEMI-PERMANENT INSTALLATION (CONTINUED)

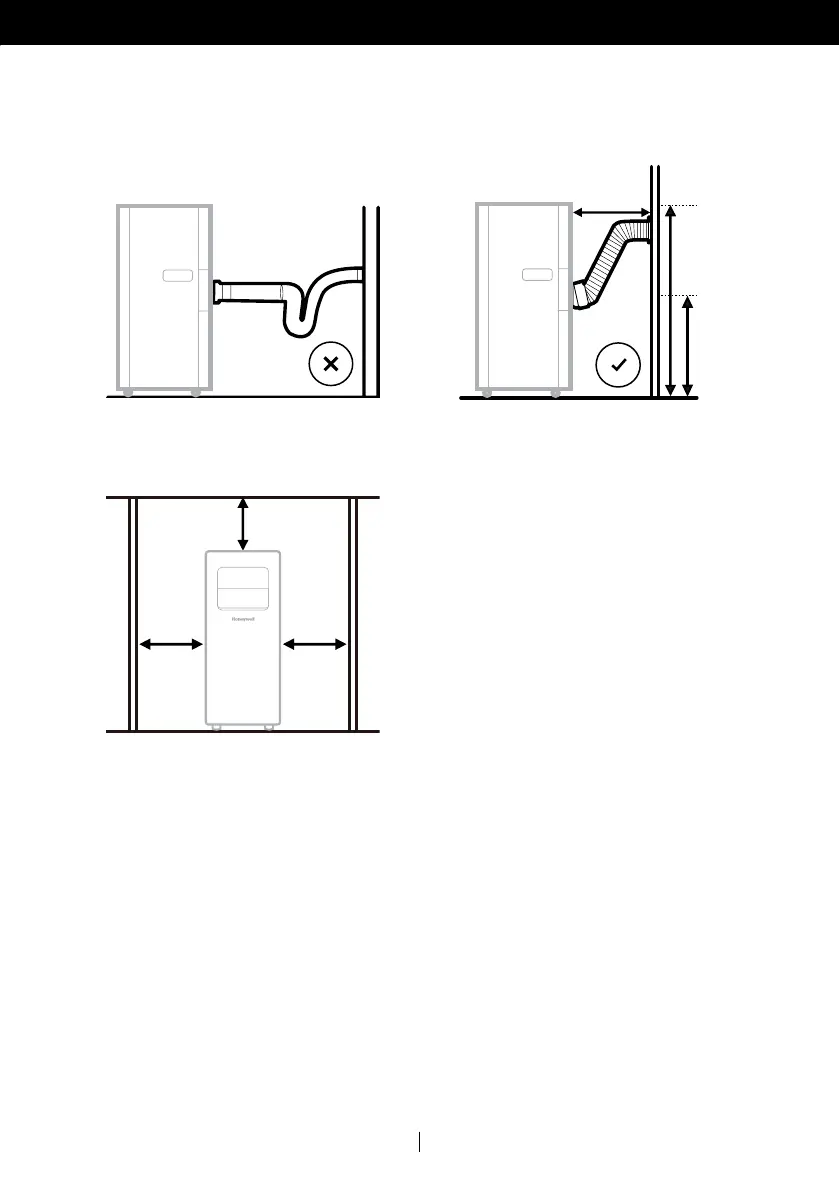

NOT RECOMMENDED RECOMMENDED
31.5" (80 cm)
EN
MINIMUM AIR SPACE
20" (50 cm)
20"
(50 cm)
20"
(50 cm)
IMPORTANT: Do not replace or lengthen the Exhaust Hose as this could cause the unit to malfunction
and will void your warranty.
MAX. 14" (36 cm)
MAX. 40" (102 cm)
The maximum installation height of the Flange Fixture + Hole Cover is 40" (102 cm), whilst the
minimum installation height is 14" (36 cm)
The supplied Exhaust Hose has a diameter of 5.9" (15 cm) and can be extended from
10.6" to 59" (27 cm to 150 cm).
Do not bend (to the extent shown above) the Exhaust Hose. A bent hose will block exhaust air and
cause the unit to malfunction or shut off.
Make sure the back of the unit is at least 31.5" (80 cm) away from the wall and the minimum air
space from top/front/left/right is 20" (50 cm). Do not place the unit in front of curtains or drapes
as this could obstruct the airflow.
•
•
•
•
WARNING: Any warranties included with this product will be voided if an extra extension hose is used
in addition to the one provided or if the installation is performed differently than the manufacturer's
instructions without proper consultation. Please contact Customer Support for help with installation
procedures if needed.
