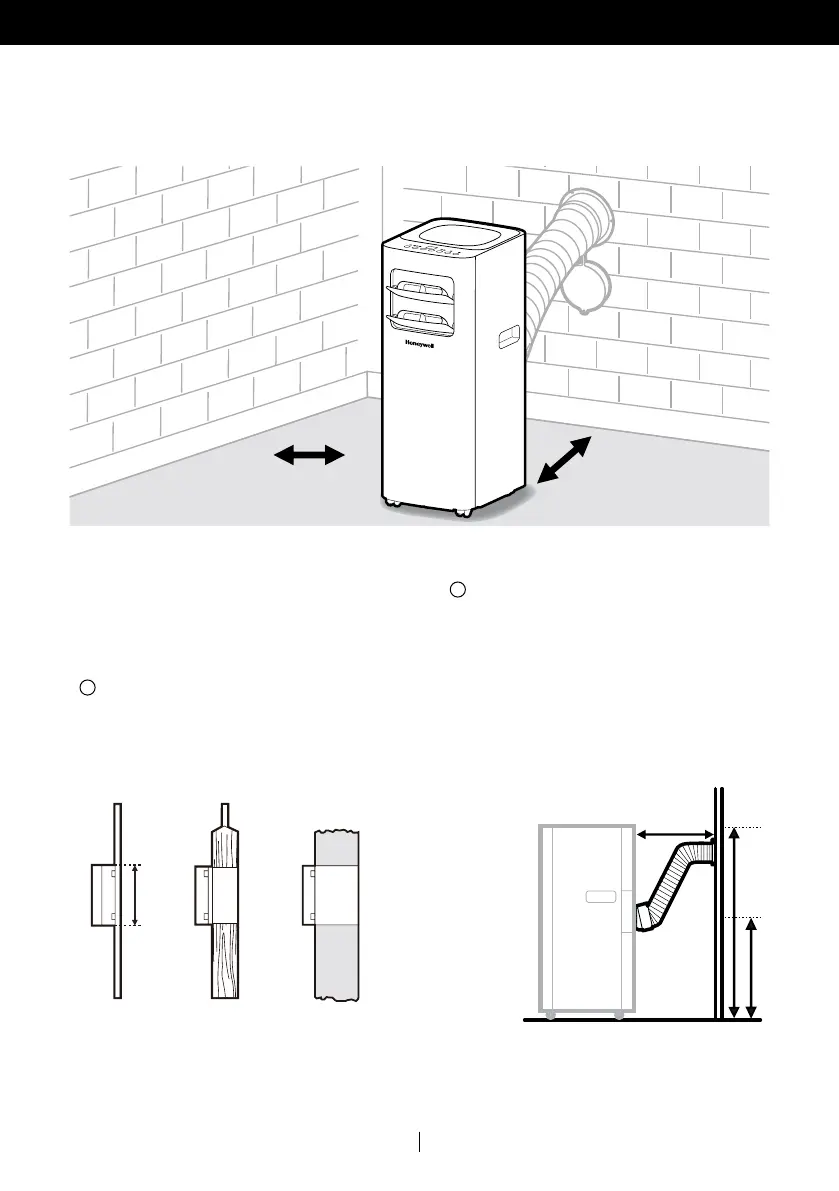

SEMI-PERMANENT INSTALLATION

If required, your Portable Local Air Conditioner can be installed semi-permanently though a hole

in the wall or window.

Drill a hole through an outside wall or through a window pane. Ensure the MIN/MAX dimensions

for the hole size and its position are adhered to. (Fig. 1 and Fig. 2).

Insert and secure the Flange Fixture + Hole Cover

into the newly drilled hole, so that the cap

side is facing the room.

When assembling the Exhaust Hose and Connector, follow step 1, 2 and 4 in the previous

“installation through a window” section. Do not connect the Nozzle.

Fix the Unit Connector end of the assembled Exhaust Hose into the Flange Fixture + Hole Cover

that was secured on the wall.

MIN 20" (50 cm)

Fig.1 Fig.2

In the

window

panel

In the wooden

kickboard

of a french

window

In the wall: we

recommend you to

insulate the section

of wall using suitable

insulation materials

31.5" (80 cm)

MAX. 14" (36 cm)

5.9" (15 cm)

MAX. 40" (102 cm)

Note: When the unit is not in use, remove the Exhaust Hose from the Flange Fixture on the wall and

use the included Hole Cover to cover the hole in the wall.

Honeywell HC09CESAWK User Manual
