Honeywell HM700A1000 Installation Instructions

HM700A1000
7 33-00118—01
Steam Distributor
The HM700 requires a steam distributor installed in the
supply-side of ductwork. The HM700 can distribute steam into
a ventilation duct using the distributor shown in Table 5.
The steam distributor should be installed as close as possible
to the humidifier. Short steam distribution lines minimize
condensate loss and the possibility of generating
backpressure in the steam distribution line.

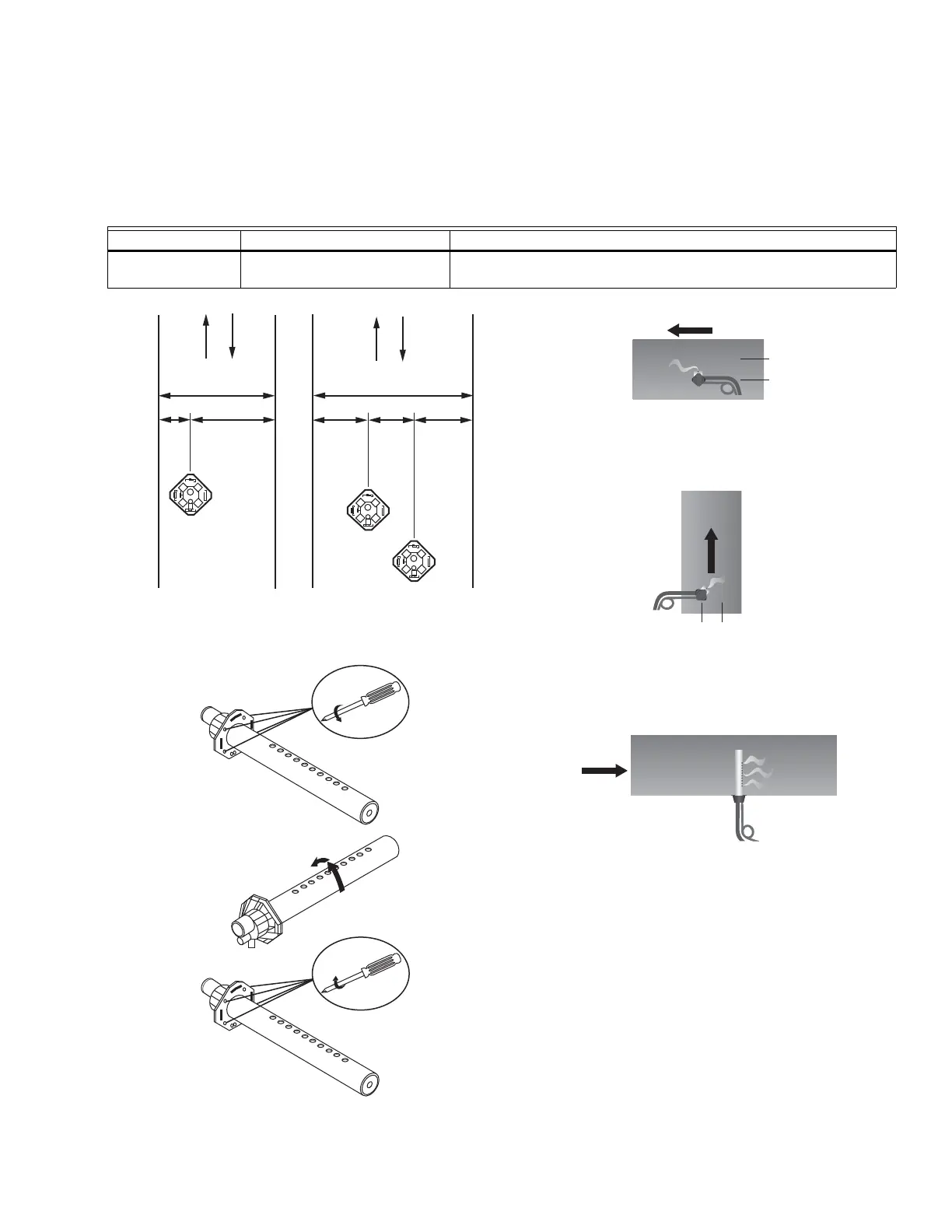

Table 5. Steam distributor.
Fig. 5.
Fig. 6.
Fig. 7. Distributor installed horizontally
in a horizontal duct.
Fig. 8. Distributor installed horizontally in a vertical duct.
Rotate the distributor 45º so that steam is discharged
toward the center of duct, in the direction of the air flow.
Fig. 9. Distributor installed vertically in a horizontal duct.
This configuration is not recommended.
Part Number Description Notes
HM700ADISTKIT
Stainless Steel Distribution
Remote Mount Kit
Includes a steam distributor, 5 ft. insulated steam hose, condensate
hose, and installation hardware.
W
2/3W
1/3W
MIN. W=8 (203)
H
1/3W
1/3W
1/3W
M35755
M35756
1 TURN
1
2
3
+45˚
–45˚
M35764
AIR FLOW
1/3
2/3
M35765
AIR FLOW
1/3
2/3
M35766
AIR FLOW
