2.2 The switch and reset mechanism
The switch and reset mechanism SVC086 is used standard on all HON HSV safety
shut-off devices. When the stroke of the HON HSV is smaller than 110 mm, the
SVC086 may be mounted directly onto the body.

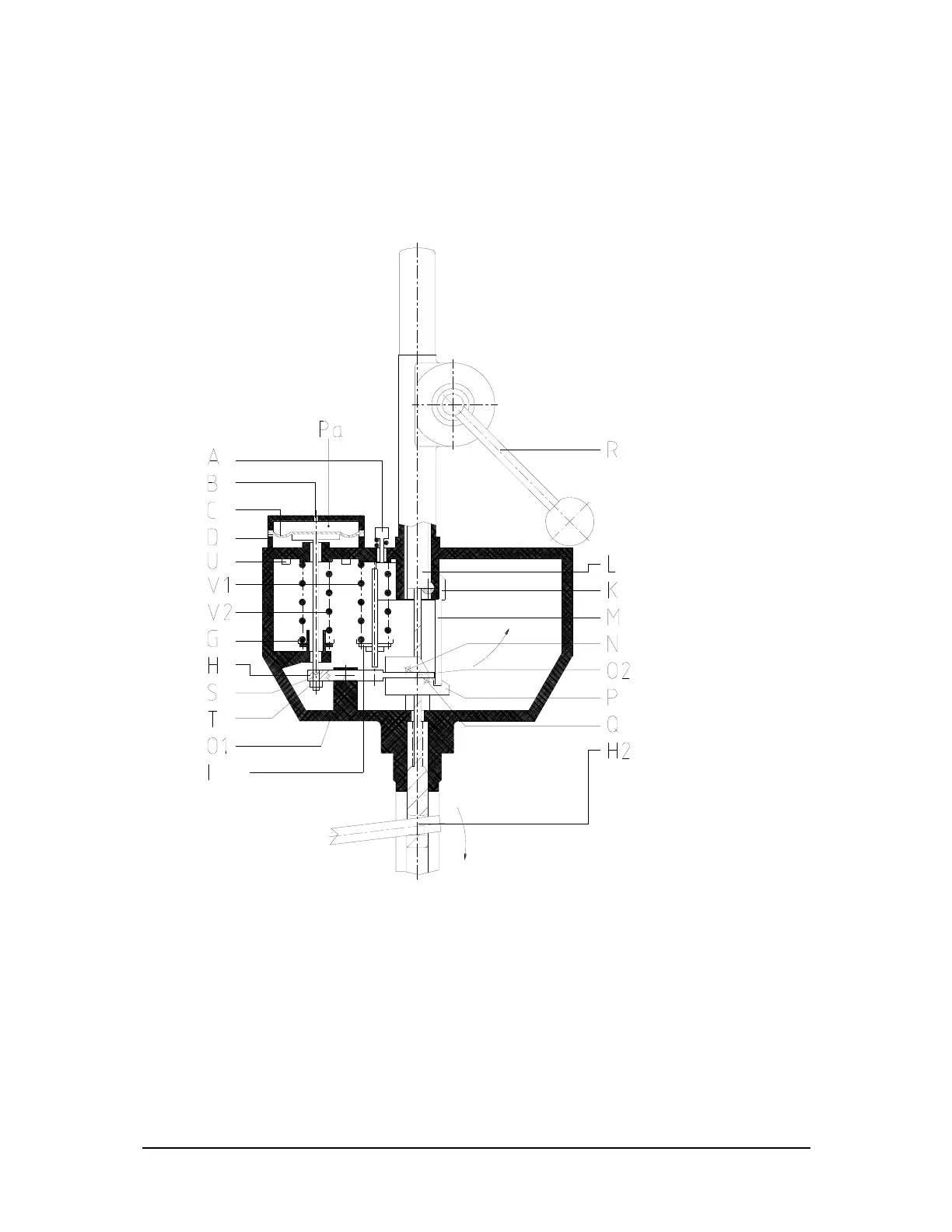

Figure 2: Working principle of the switch and reset mechanism SVC086
