Installation of indoor unit
The max. distance between the indoor unit and outdoor unit is 4 m.
The height difference between indoor unit and floor should not be less than 2 m.
Select the installation location
1. Ensure that the installation of indoor unit meets the requirements of under
mentioned installing dimensions, leaving enough space for maintenance. It should
be positioned so that the air can circulate freely.
2. Place the unit where air filters and active carbon filters can be taken out easily.

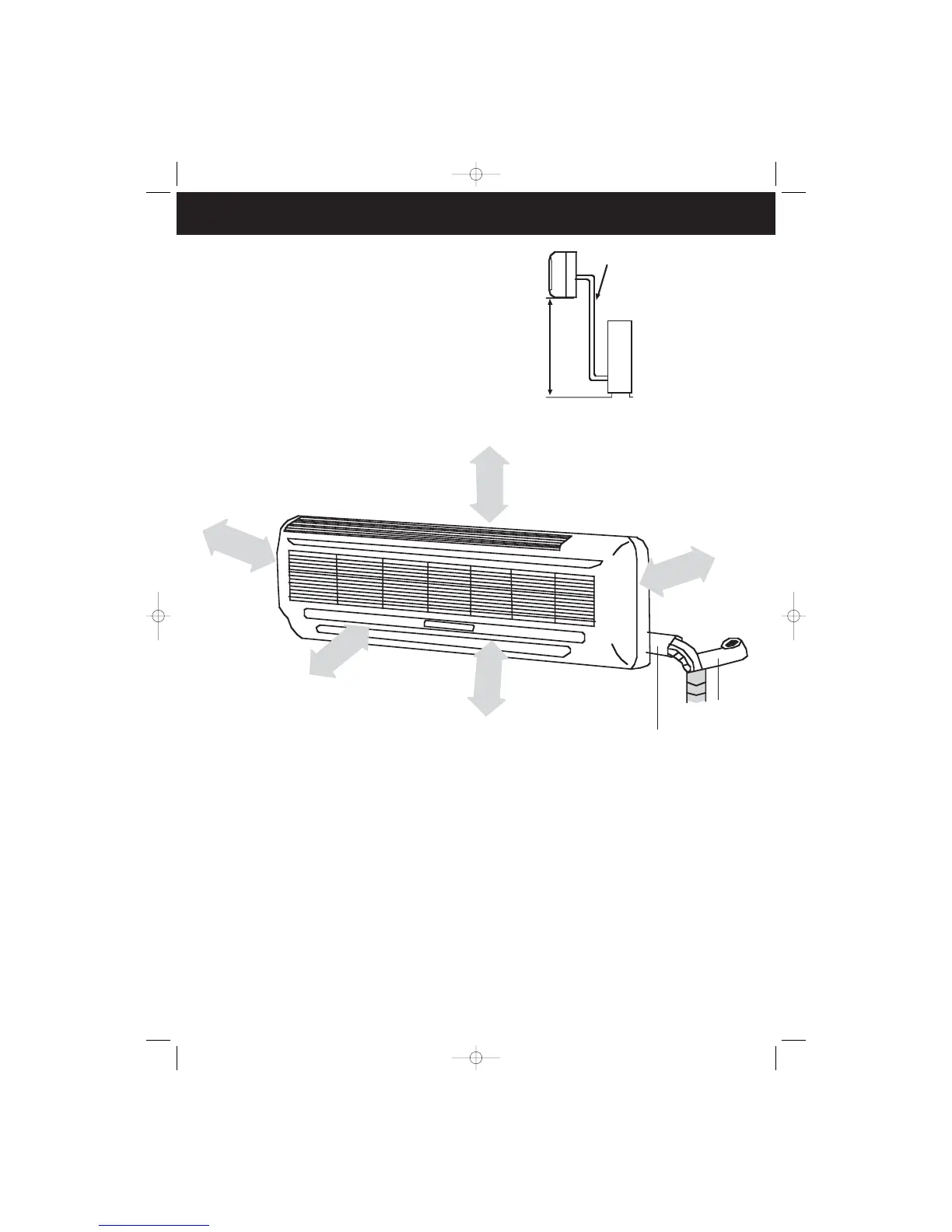

Above 15 cm
Above 300 cm
Wall pipe
Above 200 cm
Above 15 cm
Above 15 cm
Distance between
unit and wall
Distance between
unit and ceiling
Distance between
unit and floor
Air discharge
Distance between
unit and wall
Wrap tape
(1 roll)
2 m
4 m
INDOOR UNIT
OUTDOOR UNIT
