Honeywell HW4CEDAWW0 - Installation Procedure; Installation Kit Contents; Exhaust Hose Assembly

3EN
INSTALLATION
It is important that the installation instructions below are followed for successful installation of this
Portable Air Conditioner. Please call Customer Support if you have any difficulties or questions
regarding these installation procedures.

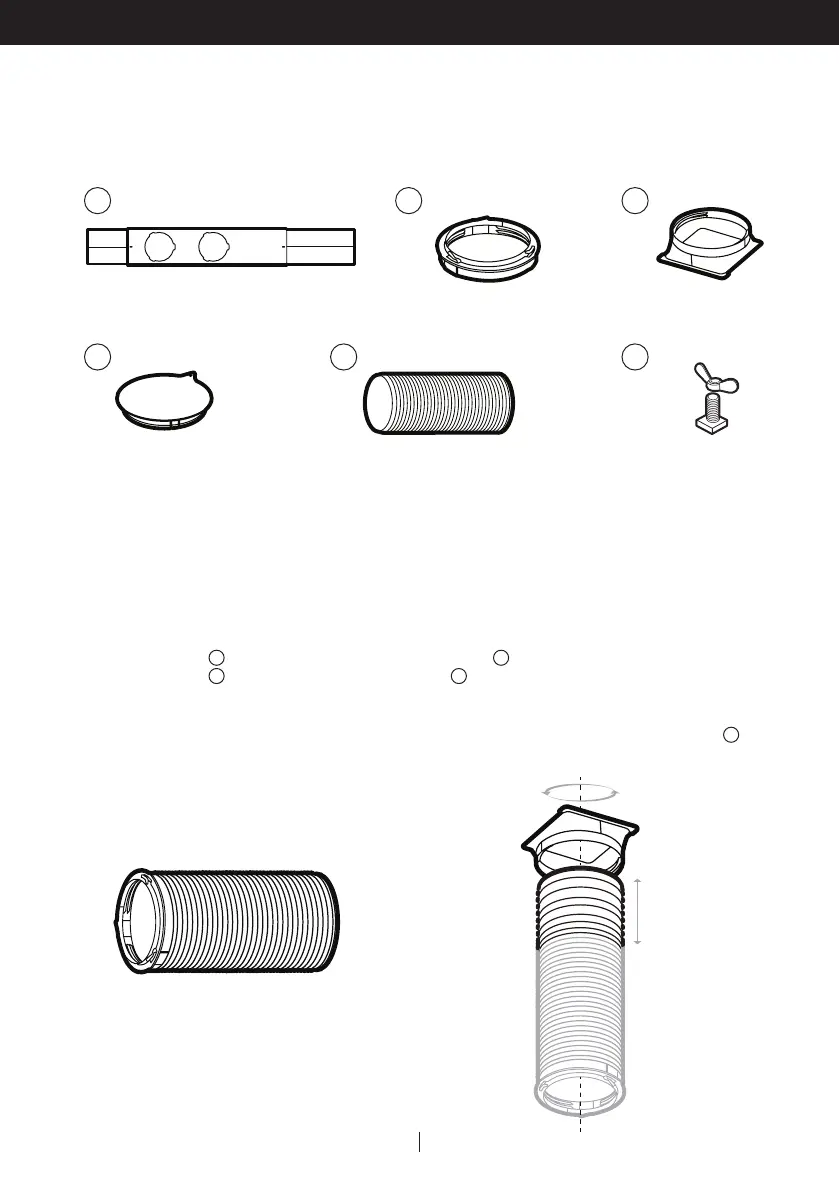

Installation Kit:
Installation Steps:
The Exhaust Hose and Window Bracket Panel Adapter are pre-assembled inside the package.
The Exhaust Hose and Exhaust Hose Connector require assembly. Please follow the below
steps:
Expand the unassembled end of hose 4” to 8” then carefully thread Hose connections
.
Rotate the Hose connector counter clockwise for 3 or 4 turns until threading is complete.
1.
2.
1. Window Bracket Kit (1 Set) 4. Hole Covers (2 Pieces)
2. Window Bracket Panel Adapters (2 Pieces) 5. Exhaust Hoses (2 Pieces)
3. Exhaust Hose Connectors (2 Pieces) 6. Butterfly Screws (2 Pieces)
1 3
x1
x2 x2
2
Exhaust Hose:
Length: 12" to 47" (30 cm to 120 cm)
5
5 3
3
2
6
x2 x2
4 5
x2
4" to 8"
(10 cm to 20 cm)
a.
b.
a.
b.
1
.
2
.
