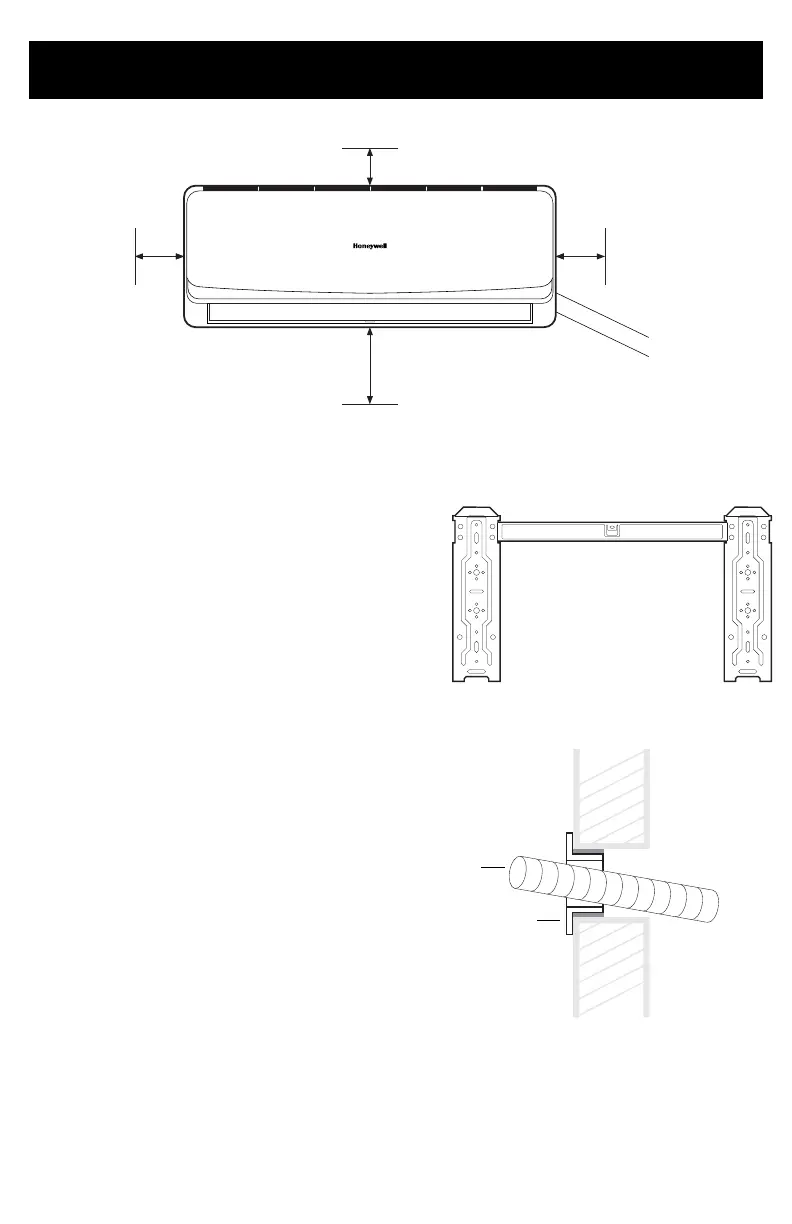

Clearance Requirements for Indoor Installation
INSTALLATION: INDOOR UNIT
10
5.9 in
7.9 in 7.9 in
78.7 in
NOTE: All measurements should be no less than posted from obstructions.
Mounting Plate
1. The wall for installation of the indoor unit
shall be hard and firm to prevent vibration.
2. Use the “+” type screw to fasten the
mounting plate. Horizontally mount the
mounting plate on the wall and ensure it is
level with the wall.
3. Pull the mounting plate by hand after
installing to confirm if it is solid.
Wall-Through Hole
1. Make a 60-80mm hole as appropriate, where
there are no obstructions for drilling. The
indoor connection pipe should slant
outwardly by 10-20
°.
2. To protect the piping and the cables from
being damaged running through the wall,
the pipe protecting ring shall be installed and
sealed with the putty that is included on the
inside wall of the dwelling.
NOTE: Usually, the wall hole is 60mm ~ 80mm. Avoid
wiring and studs to maintain structural integrity of the
enclosure.
Indoor Outdoor
Pipe
Protection
Ring
To Next Page
