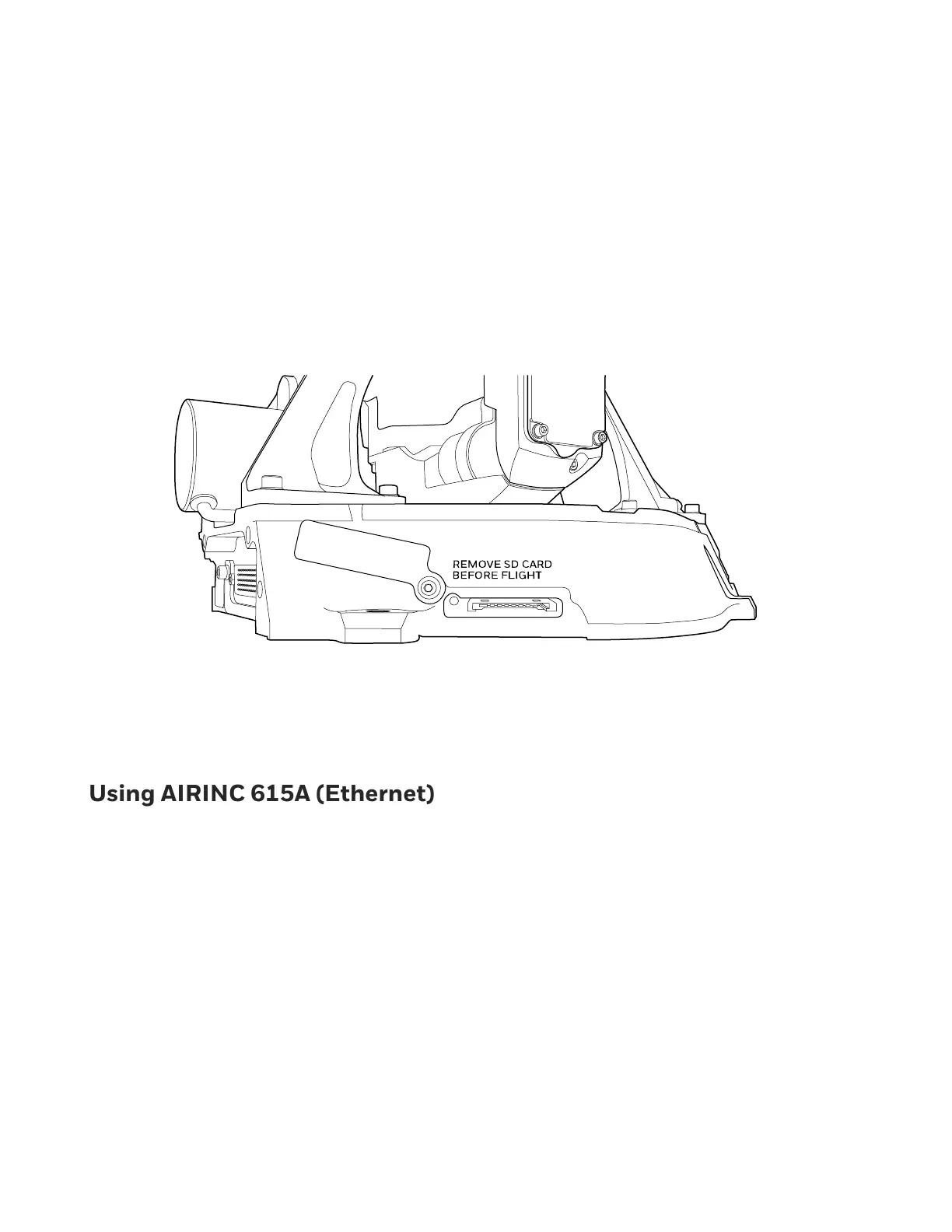

Fig. 3. SD Card Slot
If the SD card contains valid files, uploading will commence.
Observe the LED to determine the success of the uploading operation.
Once the data loading operation has successfully completed, remove the SD card by
pushing it in (it will then pop out) and replace the rubber cover.
Re-start the radar (power down and then power up again).i.
• Flashing Green = In progress
• Green = Data fully loaded
• Yellow = Invalid SD card or contents
• Red = Failed, try again
f.
g.
h.
Using AIRINC 615A (Ethernet)
Power up the radar.
At power-up, the radar software will look for the presence of an ARINC 615A data loading
device.
Re-start the radar (power down and then power up again).
If this data loading device is detected, the radar system will perform the appropriate data
loading function.
a.
b.
d.
c.
Power up the radar.e.
