TESTING
Ensure that all personnel are a safe distance from the radar.
Power up the radar.
Select TEST from the Controller or the Aircraft Maintenance System.
Confirm that the color test pattern is displayed on the radar display.
Close the radome and secure it.
Power down the radar.
Allow approximately 60 seconds for TEST to finish.
Confirm that the correct equipment and software part numbers are displayed. If any
software part number is incorrect, refer to the installation manual for complete loading
instructions.
Verify that no errors are reported by the technician at the Controller or the Aircraft
Maintenance System; any faults are displayed after the completion of the TEST
sequence.
a.
b.
c.
d.
h.
i.
e.
g.
f.

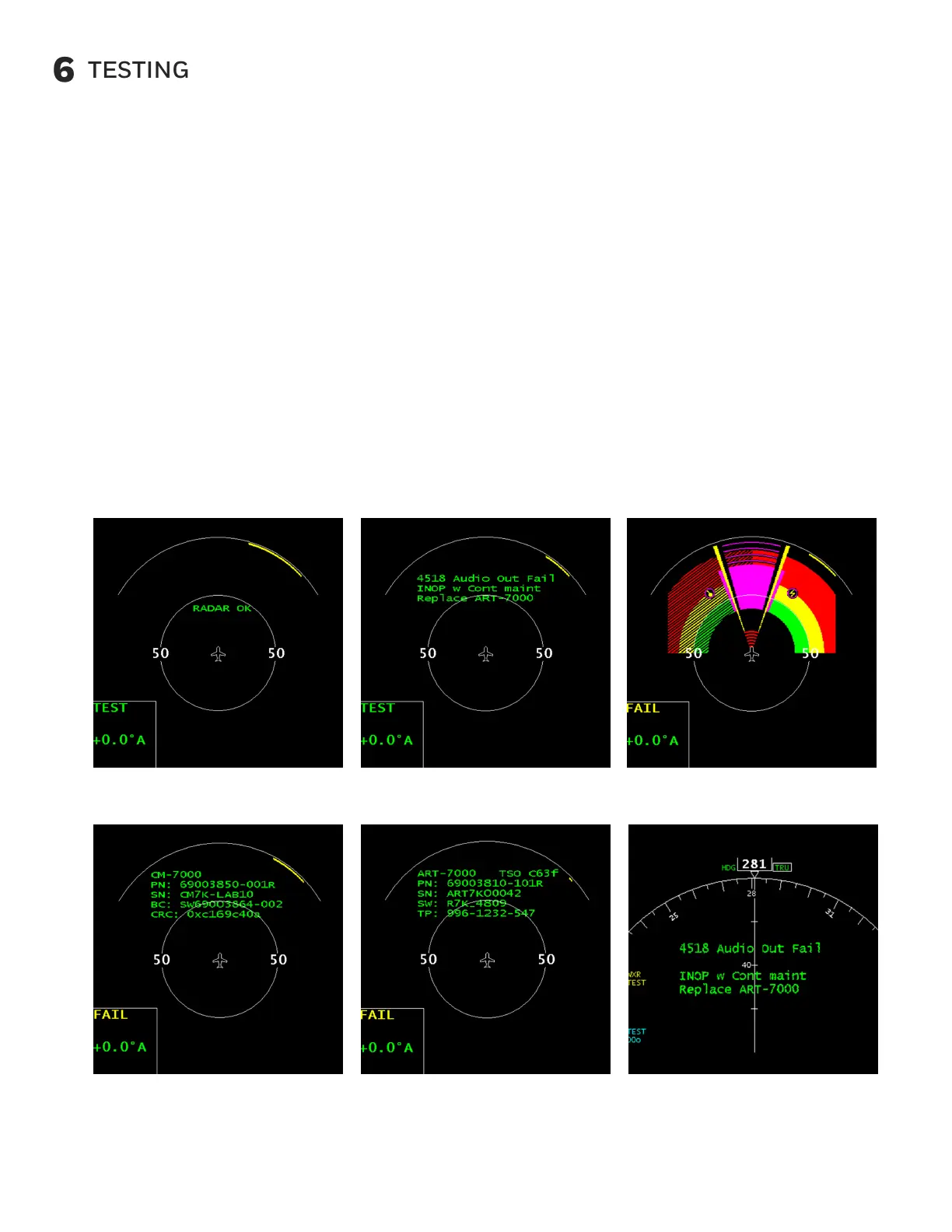

Fig. 7. Part Number Fig. 8. Part Number Fig. 9. Fault Number
Fig. 4. No Fault Fig. 5. Fault Number Fig. 6. Test Pattern
