Honeywell L41.. User Manual

11 EN2R-9005 0406R3-NE
L6190 SINGLE AQUASTAT - SURFACE MOUNTING
SPECIFICATIONS AND DIMENSIONS
Specifications
Ambient temperature limits
0 ... 70°C
Electrical connection
6.3 mm spade terminals or screw terminals
Enclosure
IP40
Electrical rating
10 A at 250 Vac, resistive load
2,5 A at 250 Vac, inductive load
15 A at 250 Vac, locked motor
Terminal data
C-1 breaks and C-2 makes on temperature rise
Capilliary length
55 mm

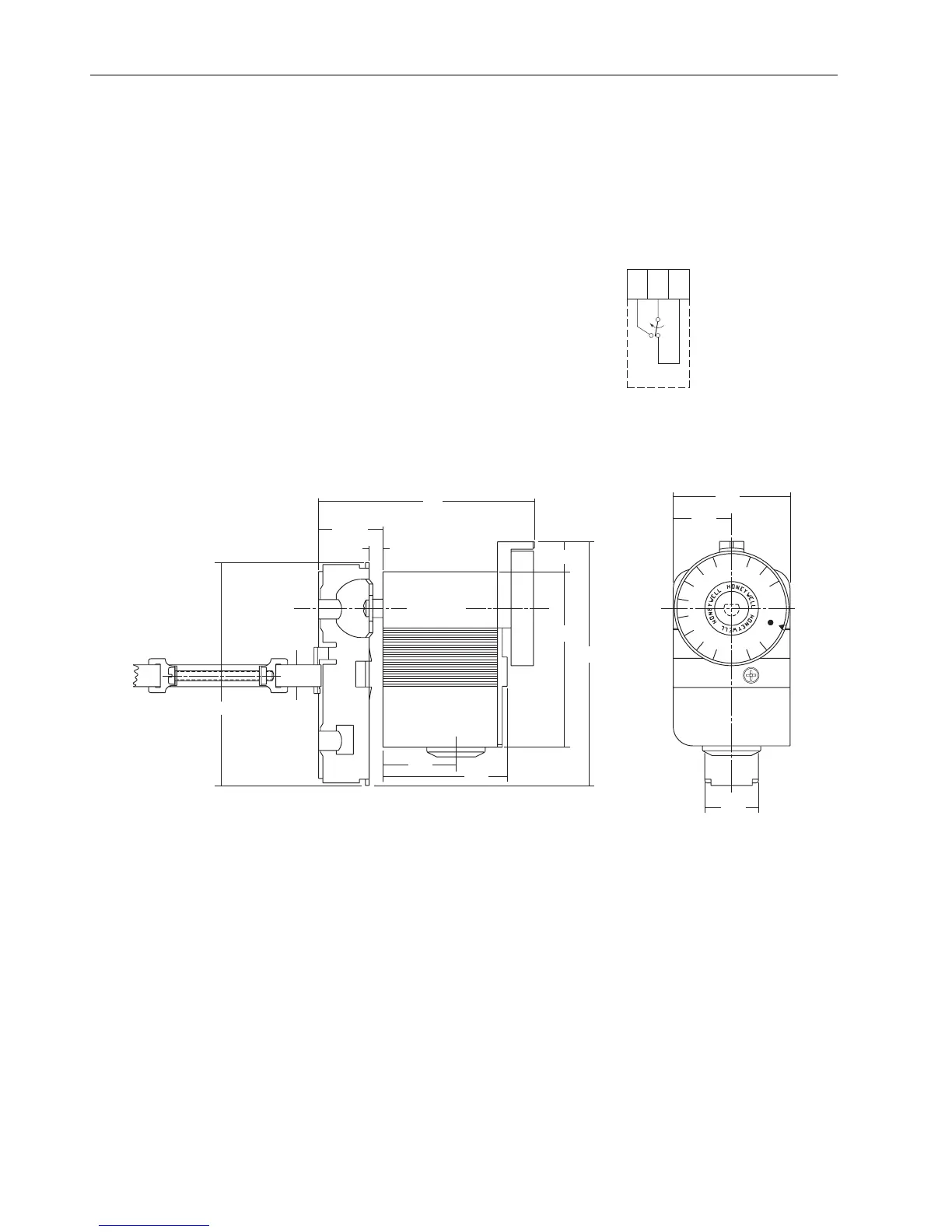

Fig. 5. Internal schematic L6190
Fig. 6. Dimensional drawing L6190
+
C
SPDT
12
6
72
6
26.5
100
12
51
30
92 9
24
48
24
