Honeywell L41.. User Manual

7 EN2R-9005 0406R3-NE
L4188 - L6188 SINGLE AQUASTAT - DIRECT IMMERSION
Specifications
Ambient temperature limits
0 ... 70°C
Electrical connection
6.3 mm spade terminals
Enclosure
IP40
Electrical rating
10 A at 250 Vac, resistive load
2.5 A at 250 Vac, inductive load
15 A at 250 Vac, locked motor
250 mA at 30 mVdc (special option)
Terminal data
C-1 breaks on temperature rise (SPDT and SPST)
C-2 makes on temperature rise (SPDT only)
Accessories
Immersion wells, see page 18

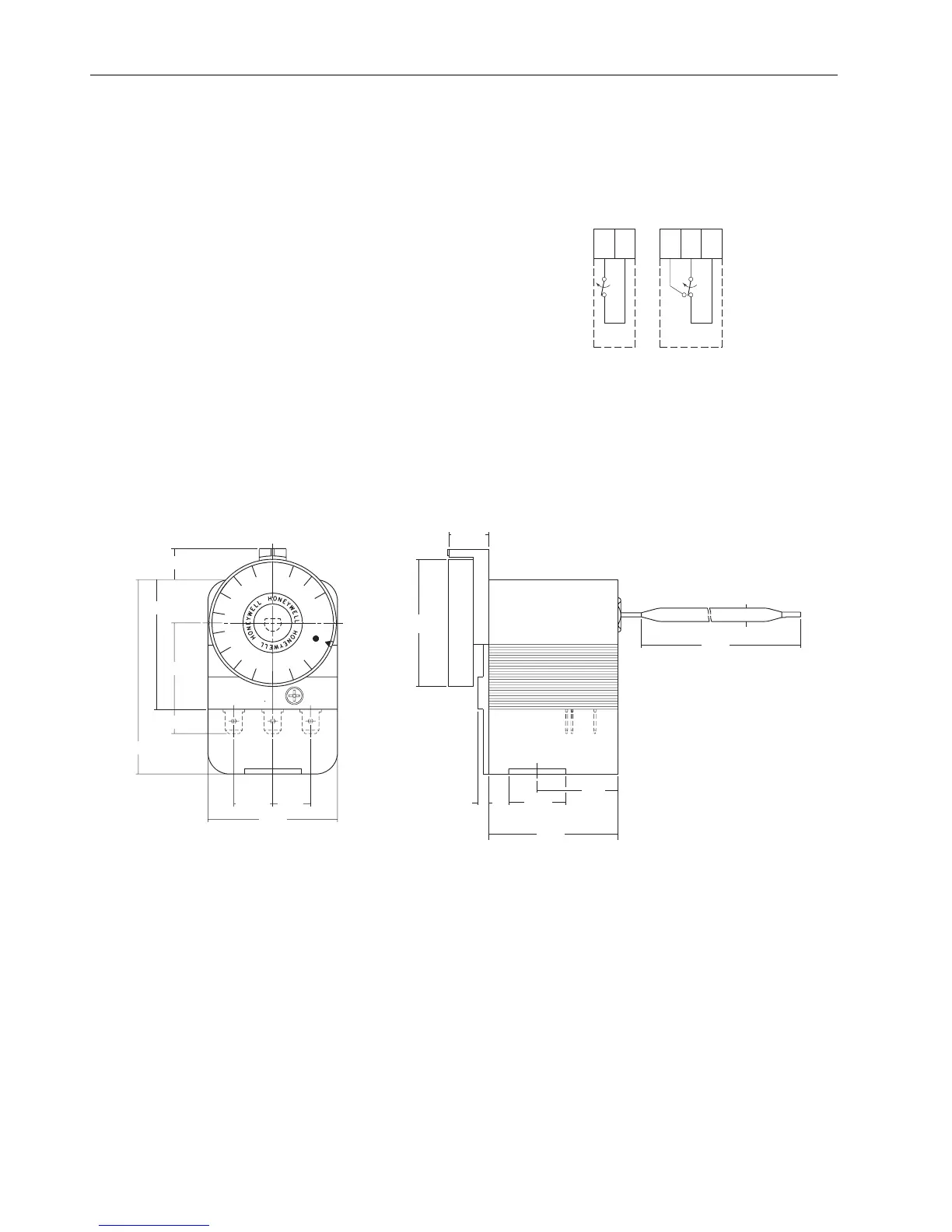

Fig. 1. Internal schematics L4188/L6188
Fig. 2. Dimensional drawing L4188/L6188
+
C
+
1 C
SPDTSPST
12
47.1
21
Pg 13.5
C12
5
11.5
72
48
32
9
14.4
14
48
11.5
14.6
48
4
85
30
