L4189 - L6189 SINGLE AQUASTAT - PANEL MOUNTING (IMMERSION)
SPECIFICATIONS AND DIMENSIONS
Specifications
Ambient temperature limits
0 ... 70°C
Electrical connections
6.3 mm spade terminals
Enclosure
IP40
Electrical rating
10 A at 250 Vac, resistive load
2,5 A at 250 Vac, inductive load
15 A at 250 Vac, locked motor
250 mA at 30 mVdc (special option)
Terminal data
C-1 breaks on temperature rise (SPDT and SPST)
C-2 makes on temperature rise (SPDT only)
Capilliary length
350 mm, 1000 mm, 1500 mm and 2000 mm
Accessories
Immersion wells, see page 18
Fig. 3. Internal schematics L4189/L6189

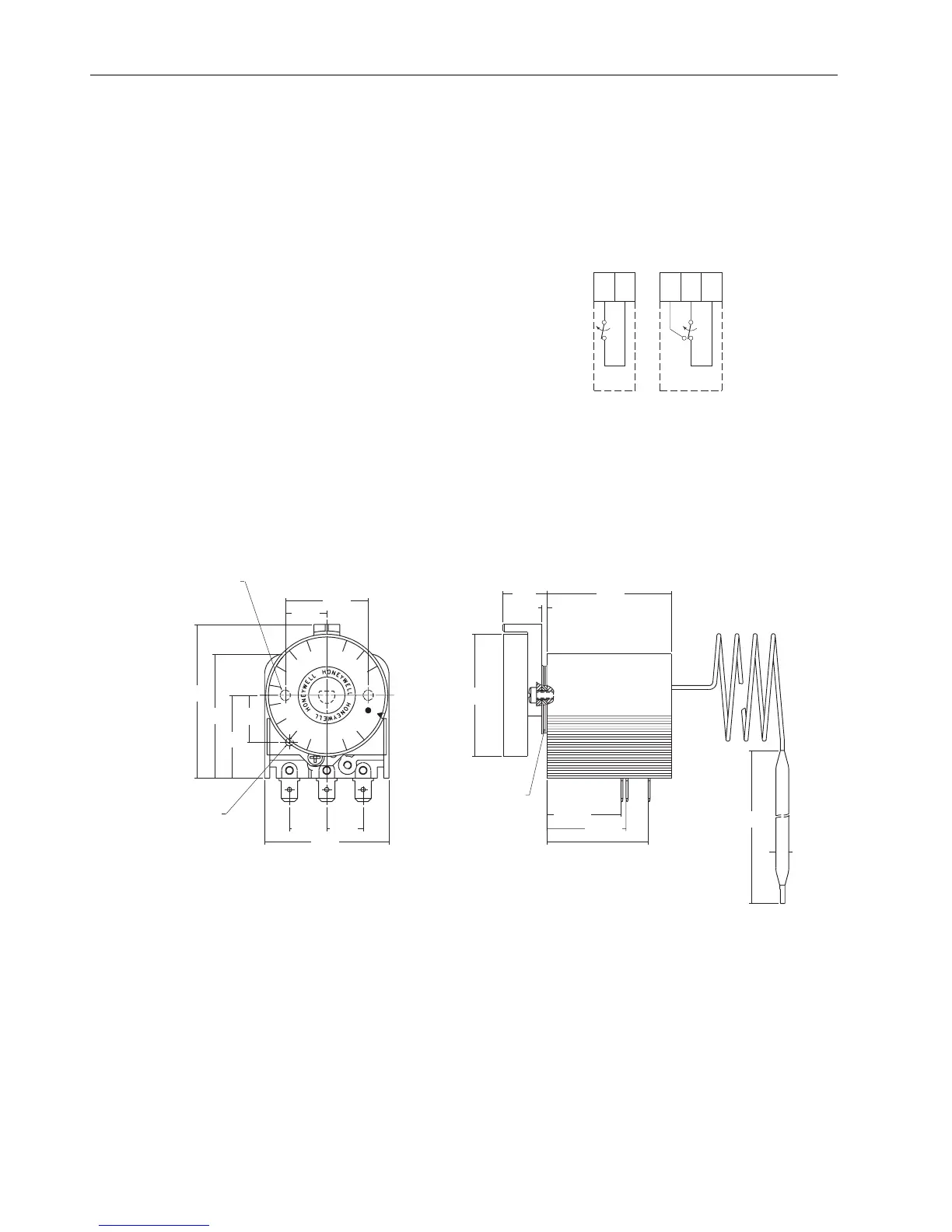

Fig. 4. Dimensional drawing L4189/L6189
+
C
+
1 C
SPDTSPST
12
Panel
C12
Mounting hole (2) for M4x20
tread forming screw
Hole ( 4 min.) in
panel for tool reset
47.1
5
48
48
48
60
1414.4
32
32
16
18
17
85
30.5
28.5
2 mm max
