Honeywell Minitrend QX Installation Instruction

43-TV-33-65 iss.5 GLO Jan 21 UK 2
Panel Mounting
Before a new Touch screen assembly can be fitted the recorder must be removed from the panel. Loosen the mounting
clamp screws, slide the clamp towards the rear of the recorder and remove the clamps and the recorder.
Removing the touch screen assembly
To fit a new Touch screen assembly the case and back panel must be removed. The case and back panel can be
removed as a single assembly. Remove the 2 screws on each side of the case as shown in Fig 1 below
Slide the case and rear panel assembly off the recorder.
Fig 1

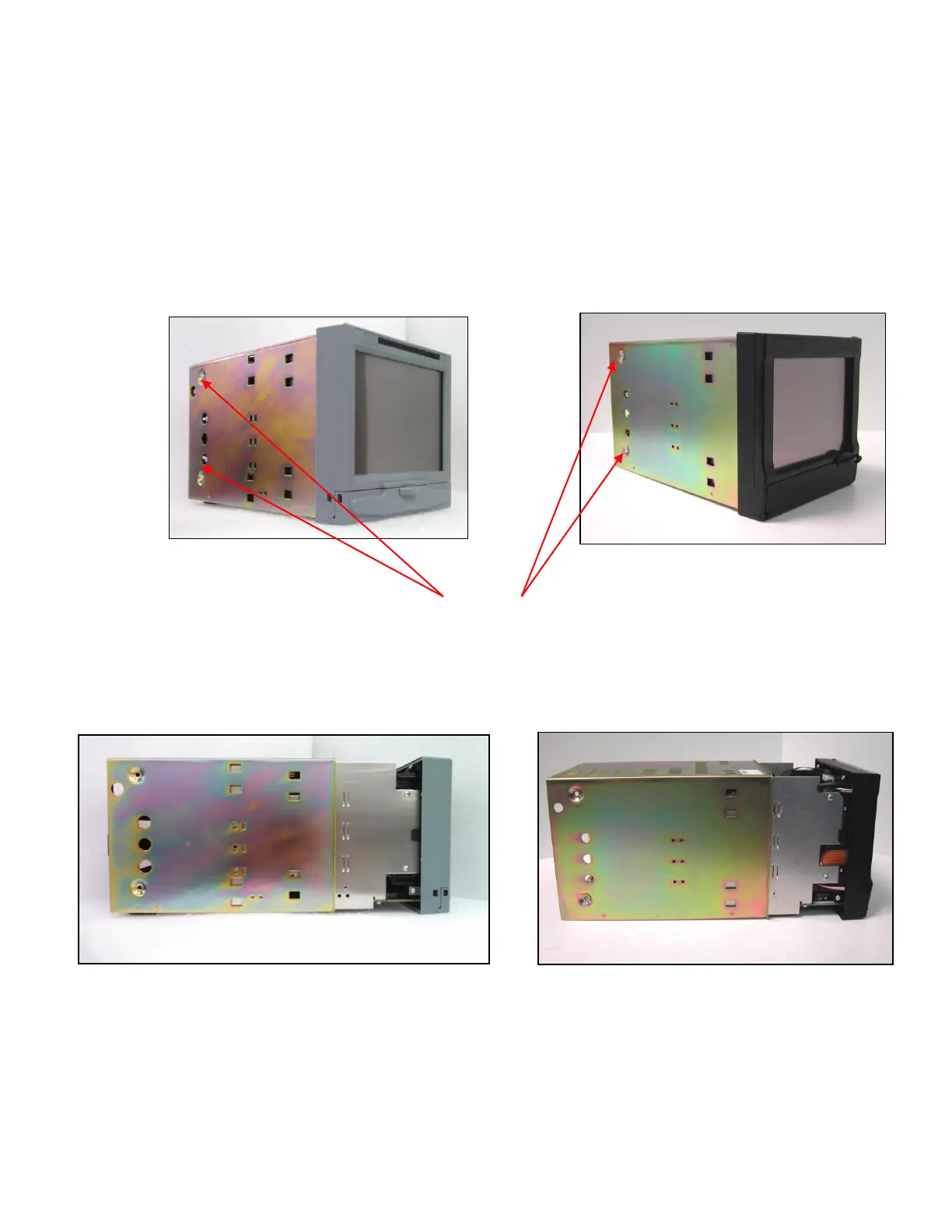

Remove 2 screws from
each side of the case
Fig 2
GR Minitrend
QX Minitrend
GR Minitrend
QX Minitrend
