EGPWS LINE MAINTENANCE MANUAL
CAGE CODE: 97896
SCALE: NONE
SIZE: A
DWG NO.:
060-4199-180
REV:
G
SHEET 31 of 68

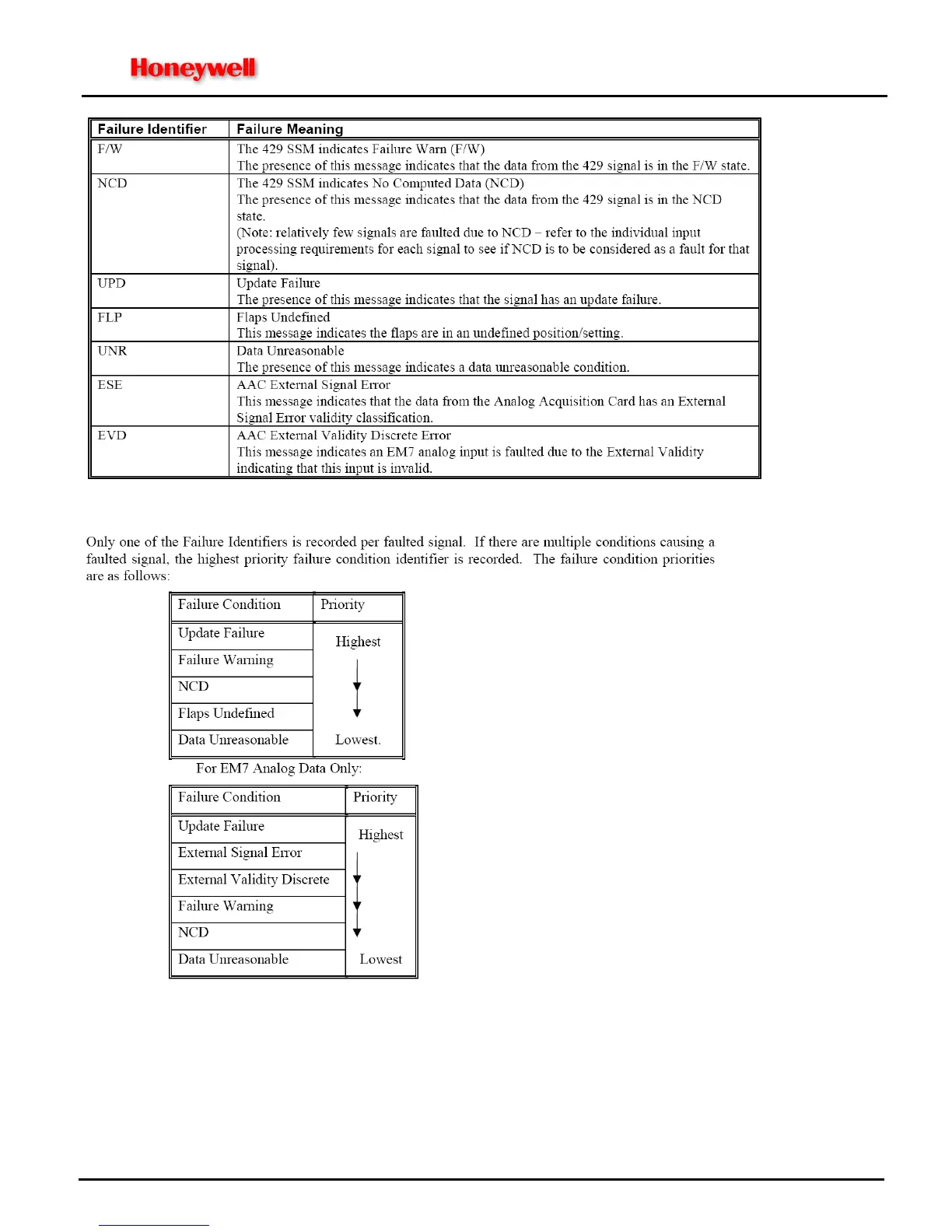

TABLE 3-5: GENERA
L FAILURE CODE IDENTIFIERS
For example, if the Computed Airspeed from Air Data Com
puter #1 is failed (i.e., SSM = Fail Warning), the following
messages would be enunciated:
“CURRENT FAULTS”
“EGPWC OK”
“EXTERNAL FAULTS”
“AIR DATA BUS 1 COMPUTED AIRSPEED FAULT”
“PRESS TO CONTINUE”
30
32
Table of Contents
Default Chapter
5
Table of Contents
5
1 Introduction
8
Scope
8
Applicability
8
Reference Documents
9
2 Description and Operation
10
General System Description
10
Enhanced Ground Proximity Warning Computer (EGPWC)
11
Operation
11
Mode 1 - Excessive Descent Rate
11
Mode 2A/2B - Terrain Closure Rate
11
Mode 3 - Descent after Takeoff
11
Mode 4A/4B/4C - Unsafe Terrain Clearance
11
Mode 5 - Descent below Glideslope
12
Mode 6 - Advisory Callouts (Optional)
12
Mode 7 - Windshear Detection (Optional for MK V/VII Only)
14
Envelope Modulation (Not Available in MK VI/VIII -001)
14
Terrain Clearance Floor and Runway Field Clearance Floor
14
Terrain Alerting and Display (Optional)
15
Peaks Display Mode (Optional)
16
Geometric Altitude (GPS Required)
16
Weather Radar Autotilt (MK V and MK VII Only)
16
System Display and Annunciation
17
Runway Awareness and Advisory System (Option for MK V and MK VII Only)
17
Stabilized Approach Monitor (Option for MK V and MK VII Only)
17
Altimeter Monitor (Option for MK V and MK VII Only)
17
Takeoff Flap Configuration Monitor (Option for MK V and MK VII Only)
18
Long Landing Monitor (Option for MK V and MK VII Only)
18
Low Airspeed Monitor (MK V Boeing 737NG Only)
18
Lamp Format
19
System Maintenance
20
Maintenance Philosophy
20
System Operation During an Inop Condition
20
BIT Description
20
EGPWC Front Panel
21
Self-Test Functions
22
3 Fault Isolation (Troubleshooting)
23
General
23
Troubleshooting Guide
23
Level 1 Self-Test - Go/No Go Test
24
Self-Test Preamble
24
Short Level 1 Self-Test
25
Long Level 1 Self-Test
26
Level 2 Self-Test - Current Faults
26
Current Faults - Internal
27
Current Faults - External
27
Level 3 Self-Test - System Configuration
33
Level 4 Self-Test - Fault History
36
Level 5 Self-Test - Alert History
37
Level 6 Self-Test - Discrete Input Test
37
ARINC 552 / ALT 55 Radio Altitude Validity Flag Discretes
38
GND Landing Gear Discrete
38
Landing Gear Discrete
38
GND Landing Flap Discrete or Flap Override
39
Landing Flap or Flap Override Discrete
39
Flap Position Discretes
40
Self-Test Discrete
40
Steep Approach Discretes
40
GND ILS Tuned Discrete
41
ILS Tuned Discrete
41
Glideslope Validity Discretes
41
GND Glideslope Inhibit Discrete
42
Glideslope Inhibit Discrete
42
GND Glideslope Cancel Discrete
42
Decision Height Discrete
42
Mode 6 Volume Control Discrete
43
Callouts Enable Discrete (MK V and MK VII Only)
43
GND Audio Suppress(Inhibit)/All Modes Inhibit Discrete
43
Audio Suppress(Inhibit)/All Modes Inhibit Discrete
43
AOA Validity Discretes (MK V and MK VII Only)
44
Display Select Discretes
44
Terrain Awareness & TCF Inhibit
44
Simulator Reposition (MK V and MK VII Only)
44
Weather Radar On/Off
45
Localizer Validity Discretes (MK V and MK VII Only)
45
Attitude Validity Discretes
45
Airspeed Validity Discrete
45
Barometric Altitude Rate Validity Discretes
46
Acceleration Self-Test in Progress Discrete
46
Longitudinal Acceleration Validity Discrete
46
Normal Acceleration Validity Discrete
46
Magnetic Heading Validity Discrete
47
AOA Vane Heater Discrete
47
PLI Deselect Switch Discretes (MK V and MK VII Only)
47
Autopilot Disconnect Discretes
47
Tactical Select Discrete
48
Altitude Alert Discrete
48
Corrected Barometric Altitude Validity Discrete
48
Momentary Flap Override Discrete
48
Weight on Wheels Discrete
49
GPWS Inhibit Discrete
49
RAAS Enable Discrete (MK V and MK VII Only)
49
RAAS Inhibit Discrete (MK V and MK VII Only)
49
Stabilized Approach Monitor Enable Discrete (MK V and MK VII Only)
50
Stabilized Approach Monitor Inhibit Discrete (MK V and MK VII Only)
50
Low Airspeed Monitor Inhibit Discrete (MK V - 737NG Only)
50
4 Maintenance Practices
51
General
51
Database Update
51
Database Update Frequency
51
Loading a Database
51
Flight History Downloading
52
Obtaining an EGPWS Flight History Download Card
52
Download Procedure
52
Transcription of the PCMCIA Card
53
Programming the Configuration Module (Mk VI, Mk VIII, Mk XXII Only)
54
Configuration Module Reprogramming (MK VI, MK VIII, MK XXII Only)
55
6 Removal/Installation
57
Egpwc
57
Removal
57
Installation
57
Configuration Module (Mk VI, Mk VIII, and Mk XXII Only )
57
Display Switching Relays (if Installed)
58
Removal
58
Installation
58
5 Servicing
57
General
57
7 Adjustment/Test
58
Adjustment
58
Test
58
EGPWS Ground Tests
58
8 Inspection/Check
59
General
59
9 Cleaning/Painting
59
10 Repairs
59
11 Appendix A: Winviews
60
12 Appendix B: Troubleshooting Do's and Do Not's
61
13 Appendix C: Raas Maintenance Messages (Aural & Displayed)
62
14 Appendix D: Stabilized Approach Monitor Maintenance Messages
64
15 Appendix E: Altimeter Monitor Maintenance Messages
65
16 Appendix F: Takeoff Flap Configuration Monitor Maintenance Messages
66
17 Appendix G: Long Landing Monitor Maintenance Messages
67
CAGE CODE: 97896 SCALE: NONE SIZE: ADWG NO.: 060-4199-180 REV: GSHEET 6 of
68
18 Appendix H: Low Airspeed Monitor Maintenance Messages
68
