It is important that the installation instructions below are followed for successful installation of this
portable air conditioner. Please call Customer Support if you have any difficulties or queries regarding
these installation procedures.

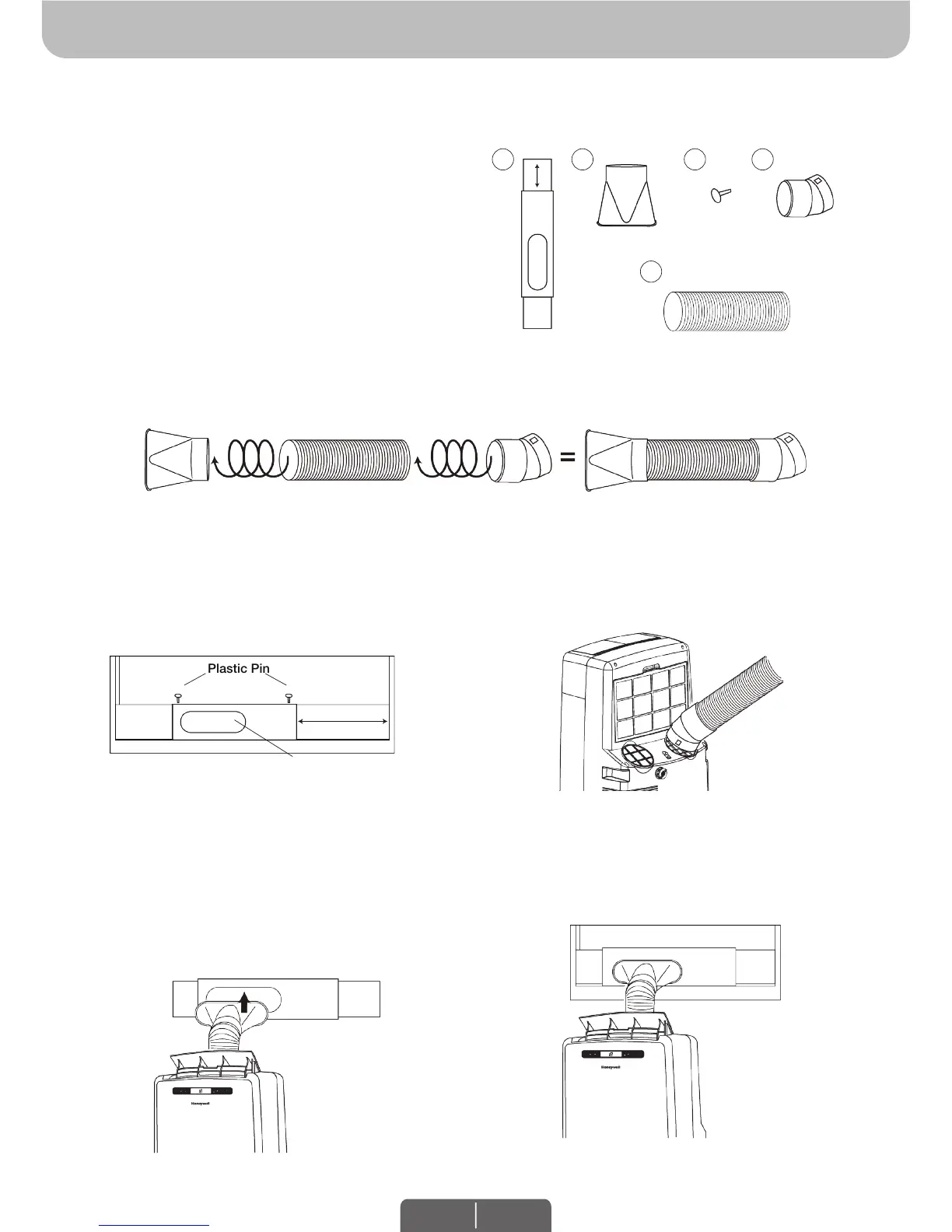

1. Install the plastic hose with window bracket adapter and hose connector on both sides.
Ensure proper fit on both ends.
2. Adjust the window bracket as per width or
height of your window and insert the plastic
pins to fix at the desired position.
There is a hole where the Plastic Hose will be
inserted later. Make sure this hole is not
blocked.
3. Connect the plastic hose to the hose
connector on back of the unit.
Push-in until it is locked in place.
4. Connect the window bracket to the opposite
end of the plastic hose.
Ensure that all connections are tight and
installed properly.
Note:
After setting the window bracket to the size of your
window, please remove it from the window and
follow the instructions below.
INSTALLATION
1.
2.
3.
4.
5.
Window Bracket Kit.............................
Window Bracket Panel Adapter...........
Plastic Pin............................................
Hose Connector..................................
Plastic Hose........................................
Installation
Kit:
Installation Steps:
1 Set
1 Piece
2 Pieces
1 Piece
1 Piece
Plastic Pin
Hole for Plastic Hose20" to 47" (50.5cm to 119cm)
5. Connect the window bracket to the window.
6. The Portable Air Conditioner is now ready to use.
1
2
5
3
x 1
x 1x 1
x 2 x 1
4
EN 3
Plastic Hose:
Dia. 5" (12.7cm)
Length: 12" to 47" (30cm to 120cm)
