Honeywell MS 10 Series User Manual

MSXX10, MSXX20 SERIES
13 63-2607—26

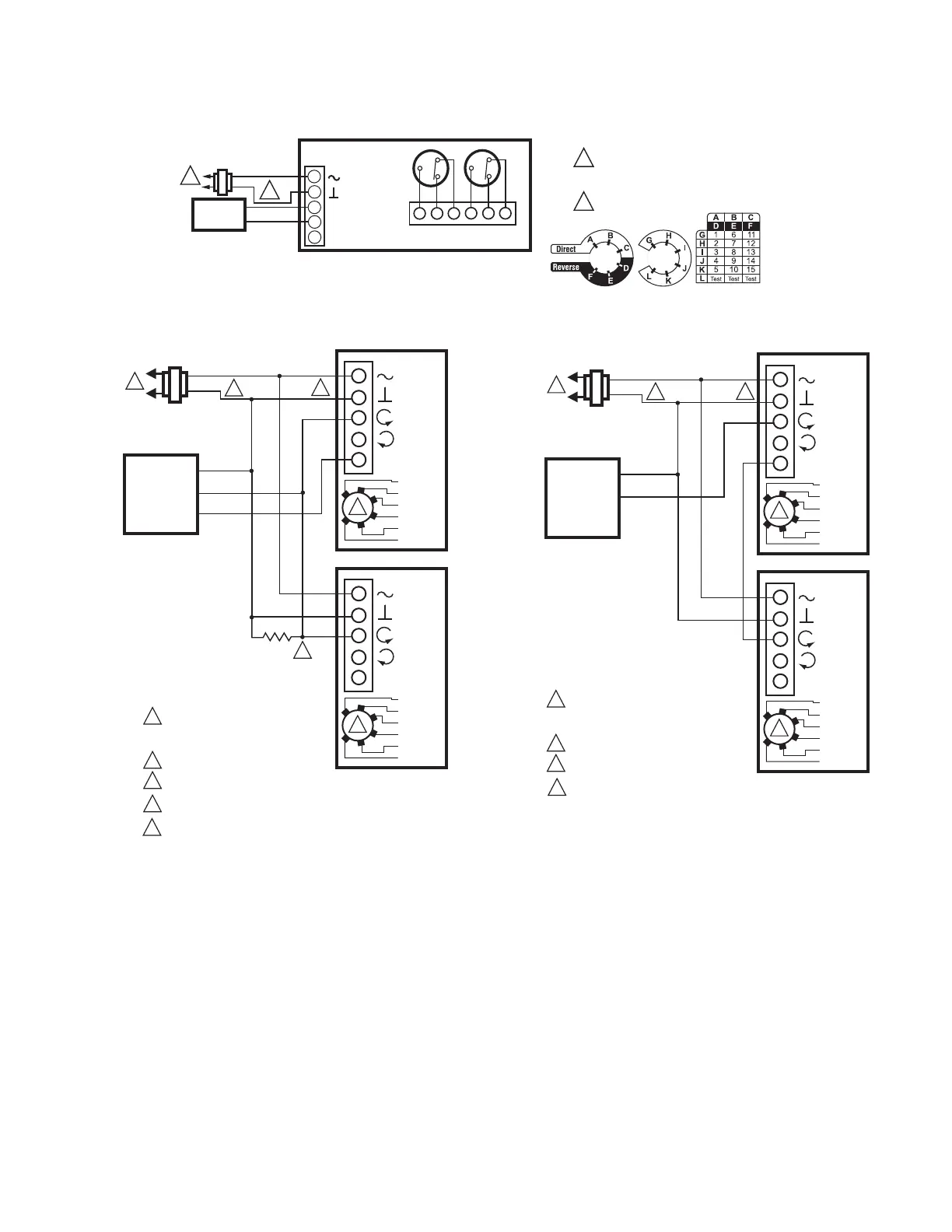

Fig. 25. Wiring for Sylk BUS, MS31 series.
Fig. 26. Wiring for 4-20 mA modulating controller
operating multiple actuators.
Fig. 27. Wiring for 0/2-10 Vdc modulating controller
operating multiple actuators as master/drone.
S-BUS
LINE VOLTAGE POWER SUPPLY. PROVIDE
DISCONNECT MEANS AND OVERLOAD
PROTECTION AS REQUIRED.
24 VDC SUPPLY ACCEPTABLE.
M35129
1
2
1
2
S-BUS
24 VAC
ACTUATOR
1
2
3
4
5
S-BUS
S-BUS
V
S1 S2
S3
S4 S5
S6
85º
7º
NOTES: AFTER TRANSFORMER SELV–SAFETY EXTRA LOW
VOLTAGE FOR INTERNAL CIRCUIT AND MOTOR.
ACTUATOR
0/2 TO 10 VDC
PROPORTIONING
CONTROLLER
24 VAC
1
1
2
3
4
4
2
LINE VOLTAGE POWER SUPPLY. PROVIDE
DISCONNECT MEANS AND OVERLOAD
PROTECTION AS REQUIRED.
24 VDC SUPPLY ACCEPTABLE.
SET SWITCH TO MODULATING.
LOCATE RESISTOR AT THE LAST ACTUATOR.
V
OR +
OR N/A
FEEDBACK
–
+
FEEDBACK
5
4
3
1
2
M35098
2-10 VDC
10-2 VDC
0-10 VDC
10-0 VDC
Fltg, fwd
Fltg, rev
3
ACTUATOR
V
OR +
OR N/A
FEEDBACK
5
4
3
1
2
2-10 VDC
10-2 VDC
0-10 VDC
10-0 VDC
Fltg, fwd
Fltg, rev
3
500
OHMS
5
ENSURE PROPER GROUNDING OF ACTUATOR CASE.
5
NOTES: AFTER TRANSFORMER SELV–SAFETY
EXTRA LOW VOLTAGE FOR INTERNAL
CIRCUIT AND MOTOR.
ACTUATOR
0/2 TO 10 VDC
PROPORTIONING
CONTROLLER
24 VAC
1
1
2
3
2
LINE VOLTAGE POWER SUPPLY.
PROVIDE DISCONNECT MEANS AND
OVERLOAD PROTECTION AS REQUIRED.
24 VDC SUPPLY ACCEPTABLE.
SET SWITCH TO MODULATING.
V
OR +
OR N/A
FEEDBACK
–
+
FEEDBACK
5
4
3
1
2
M35099
2-10 VDC
10-2 VDC
0-10 VDC
10-0 VDC
Fltg, fwd
Fltg, rev
3
ACTUATOR
V
OR +
OR N/A
FEEDBACK
5
4
3
1
2
2-10 VDC
10-2 VDC
0-10 VDC
10-0 VDC
Fltg, fwd
Fltg, rev
3
4
ENSURE PROPER GROUNDING OF ACTUATOR CASE.
4
NOTES: AFTER TRANSFORMER SELV–SAFETY
EXTRA LOW VOLTAGE FOR INTERNAL
CIRCUIT AND MOTOR.
