Honeywell Multitrend SX User Manual

6 43-TV-25-30 Iss.6 GLO Aug 07 UK
Mechanical Installation
Mounting and Viewing Angles
Mounting - The Minitrend QX, Multitrend SX and eZtrend QXe recorders have an un-
limited mounting angle.
Viewing - For the best view of the display the v
iewing angle should not exceed:
Minitrend QX 55from the left or right, 40looking down and 50 looking up at the recorder dis-
play.
Multitrend SX 70from the left or right, 45looking down and 55 looking up at the re-
corder display.
eZtrend QXe 45from the left or right, 10looking down and 30 looking up at the recorder display.
Panel cut-out size for the Minitrend QX and eZtrend QXe recorders
NOTICE
The eZtrend QXe recorder is an Emissions Class A product. In a domestic environ-
ment this product may cause radio interference in which case the user may be required
to take adequate measures.
Please note the recommended
spacing for adjacent mounting
Panel
Cut-out
Panel
Cut-out
Panel
Cut-out
138.00
(5.43”)
138.00
(5.43”)
>7.00
(0.28”)
>6.00
(0.237”)
+1
- 0
+1
- 0

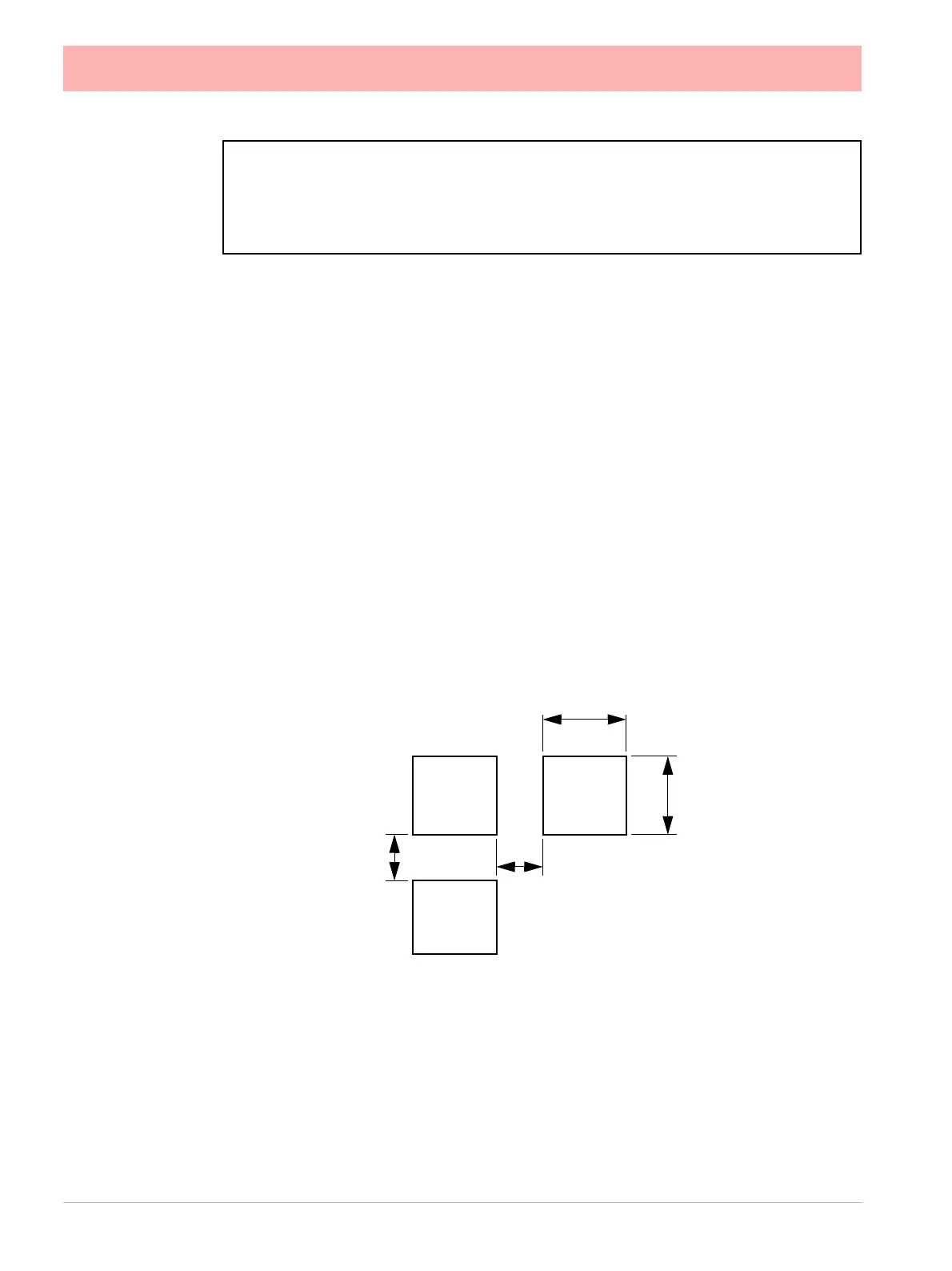

Figure 2.1 Minitrend QX and eZtrend QXe Panel cut-out
