Honeywell NOTIFIER NFS-3030 User Manual

Audio Isolator Modules
Addendum, Canadian Applications PN 52196ADD:A 9/20/2003 3

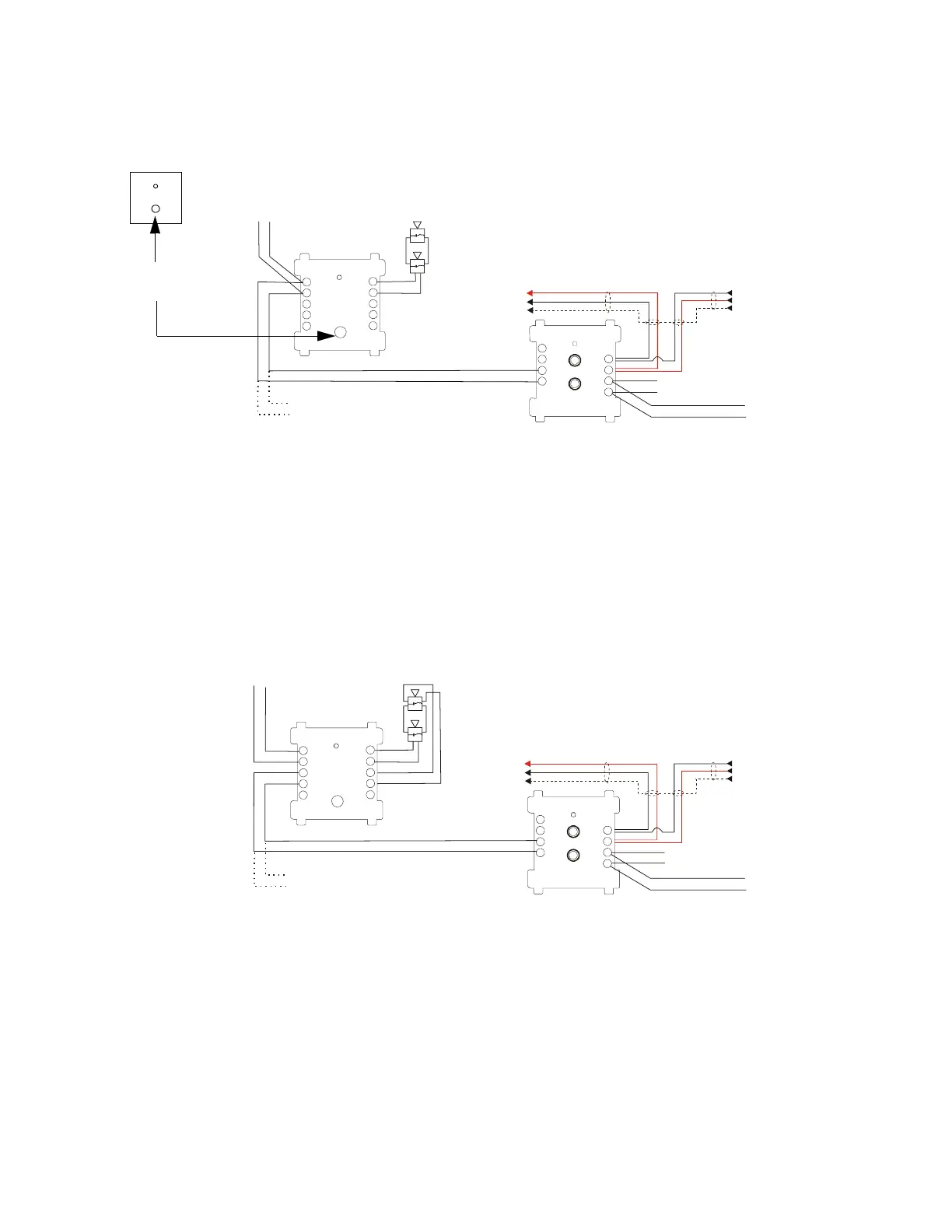

Figure 2 RSM-1/AIM-1 NAC Connections, Unsupervised, Style Y (Class B)
Figure 3 RSM-1/AIM-1 NAC Connections, Supervised, Style Z (Class A)
90
81
72
6
3
54
-
-
+
+
90
81
72
63
54
+
+
+
+
+
-
-
-
-
-
Voice-RSM-1-Ynac.cdr
SLC to next device (Twisted-pair wiring; see
your control panel manual to determine
whether shielding is recommended.)
SLC from control panel
or previous device
(Twisted-pair wiring;
see your control panel
manual to determine
whether shielding is
recommended.)
RSM-1 or AIM-1
24VDC power to end-of-
line resistor or next device
Signaling Devices
150 mA Max
FCM-1
or to NFS-640 NAC
to NAC, 24V OUT from listed
fire panel/power supply
RSM-1
Faceplate
RSM-1
Silence
Button
to supervision relay
or next device
90
81
72
63
54
-
-
+
+
90
81
72
63
54
+
+
+
+
+
+
+
-
-
-
-
-
-
-
Voice-RSM-1-Znac.cdr
SLC to next device (Twisted-pair
wiring; see your control panel
manual to determine whether
shielding is recommended.)
SLC from control panel
or previous device
(Twisted-pair wiring;
see your control panel
manual to determine
whether shielding is
recommended.)
24VDC power to end-
of-line resistor or next
device
Signaling Devices
150 mA Max
RSM-1or AIM-1
FCM-1
or to NFS-640 NAC
To supervision
relay or next device
to NAC, 24V OUT from listed
fire panel/power supply
