Wiring
The terminal block for SLC wiring will accept wire sizes from 24 AWG – 12 AWG. Route the SLC wiring through the cabling inlets located on the

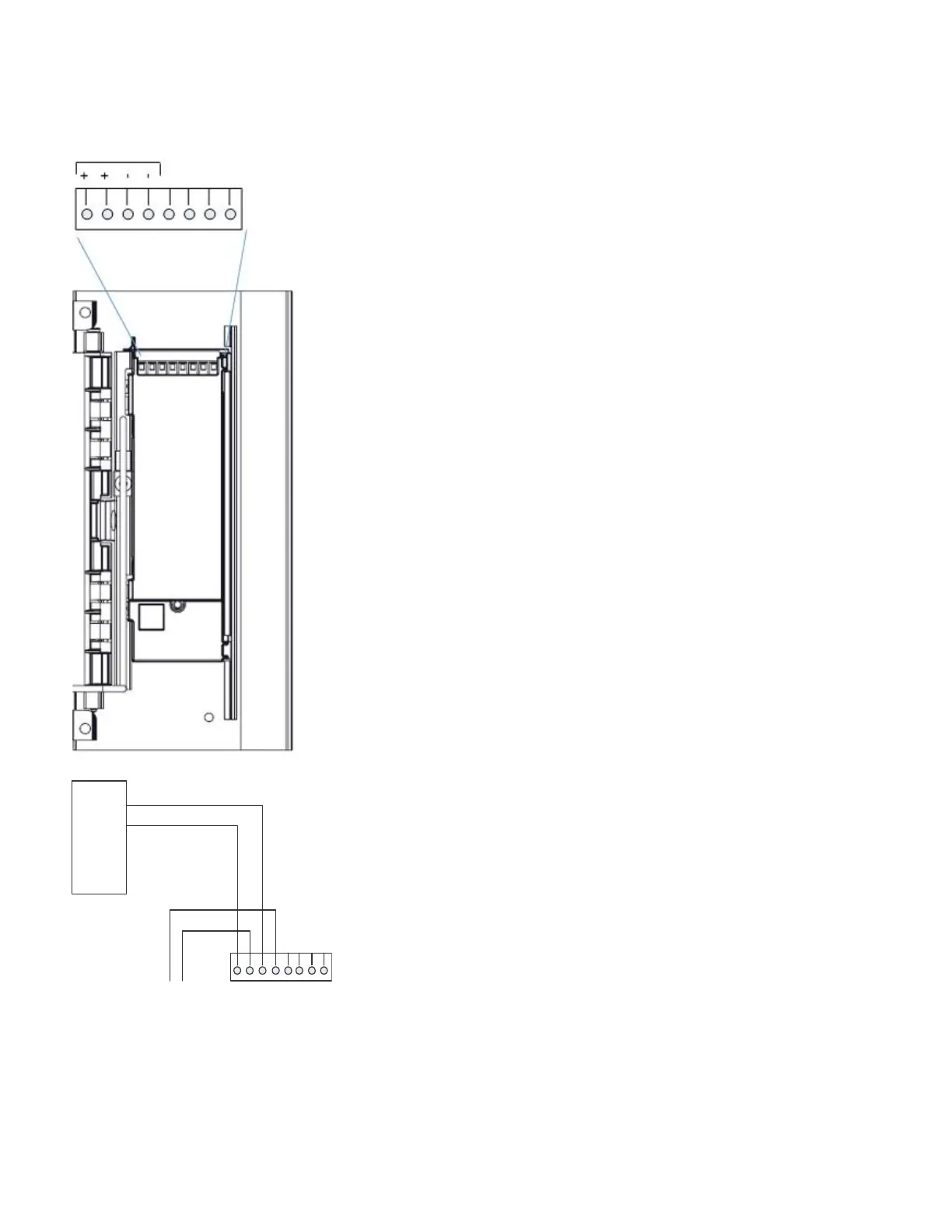

upper and lower sides of the detector base and terminate the wiring on to the respective terminals on the SLC terminal block, as shown in figure
below.
Refer to the diagram below to wire the SLC detector to the FACP.
Communication ports
All of the standard ports of VEA-040-Axx are available except for VESDAnet. VESDAnet is not available to the user in these models of the detec-
tors. However Gateway function is still applicable to this detector model to connect to Xtralis VSC.
SLC Connections
To next
device
Terminal Block on
the Interface module
FACP
SLC +
SLC -
+ + - -
