Honeywell PX4ie

PX4ie and PX6ie High Performance Printer User Guide 19

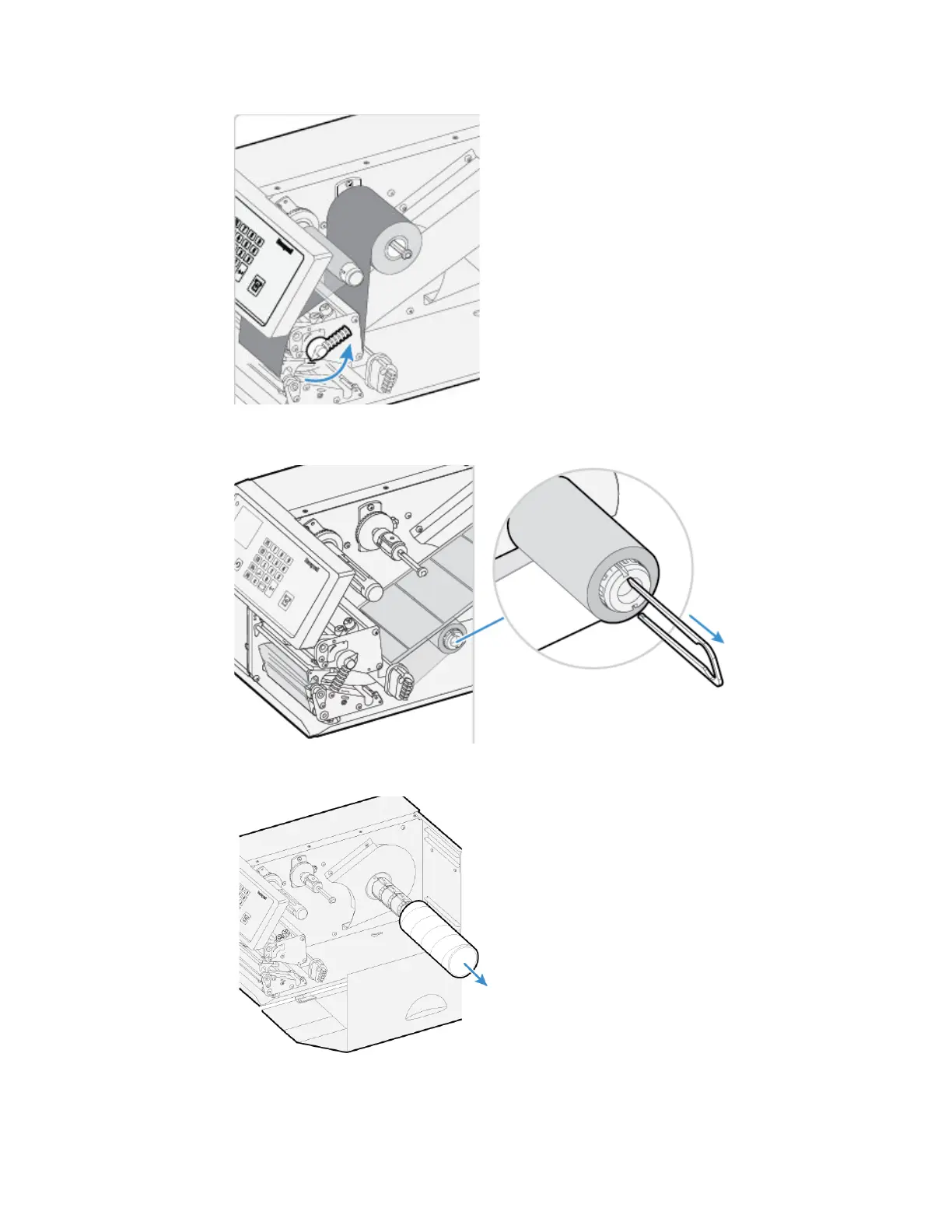

4. Raise the printhead by turning the printhead lift lever counter-clockwise.
5. Pull out the green clip on the liner take-up hub and dispose of any wound-up
liner.
6. Remove any empty core from the media supply hub.
