7 EN1C-9999SZ22 R1104
Wires are identified by color code as follows :
0=black
4=yellow
6=blue
9=white

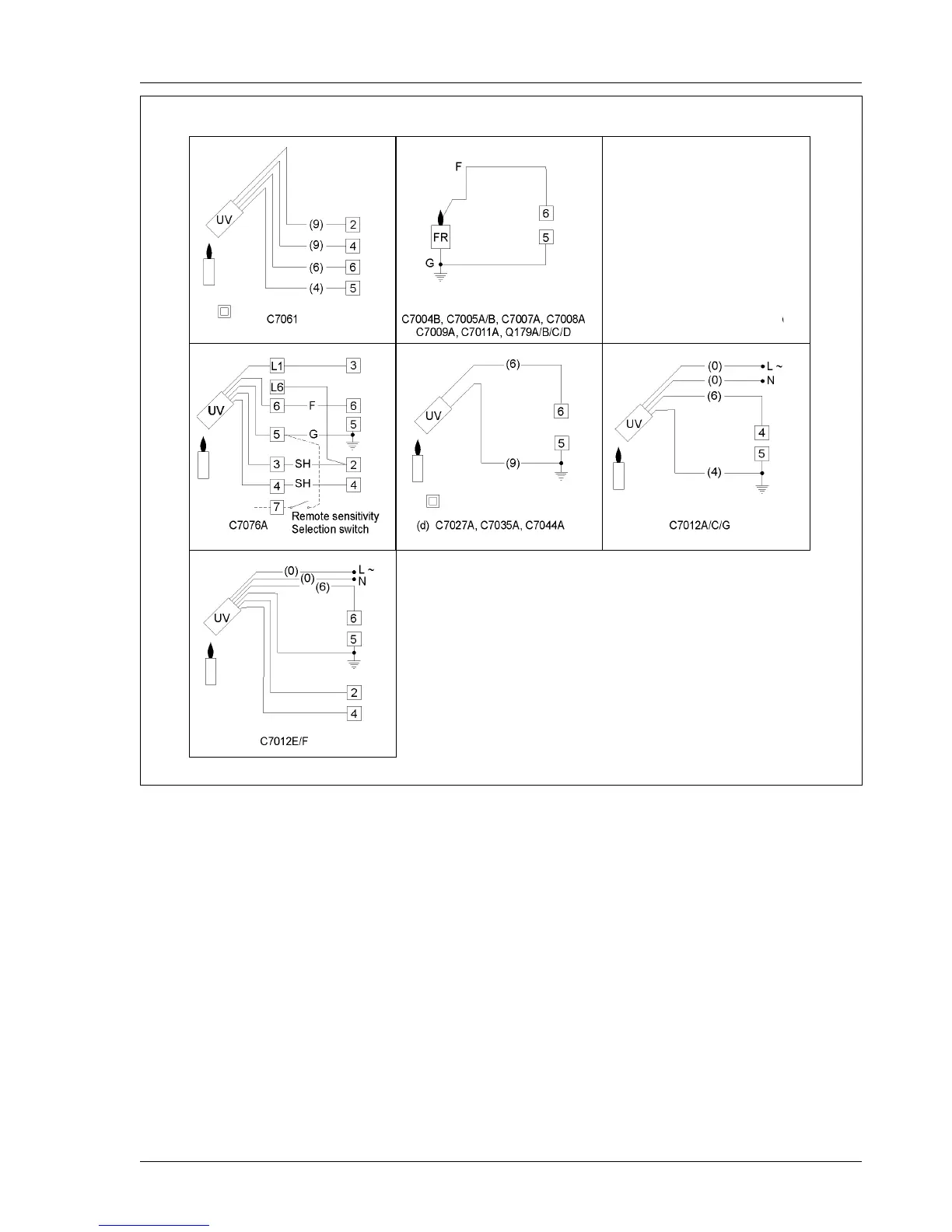

FIG. 4 Flame detector wiring diagrams
