Honeywell RG500 - II - PRODUCT DESCRIPTION; RG500 Auto;Manual Rope Grab - Part A

Tab.2 - RG500 Auto/Manual
Rope Grab - Part A
ITEM Description
1 Attachment hole (for karabiner)
2 Fall indicator
3 Braking lever
4 Roller
5 Opening lever - left
6 Opening lever - right
7 Divider
8 Slot for rope installation
9 Torsion Spring
10 Locking lever with RFID tag
11 Pivot
12 Back plate
13 Front plate
14 Stainless steel rivets
15 RFID Tag*
II - PRODUCT DESCRIPTION
*For further information about RFID tag see chapter 10

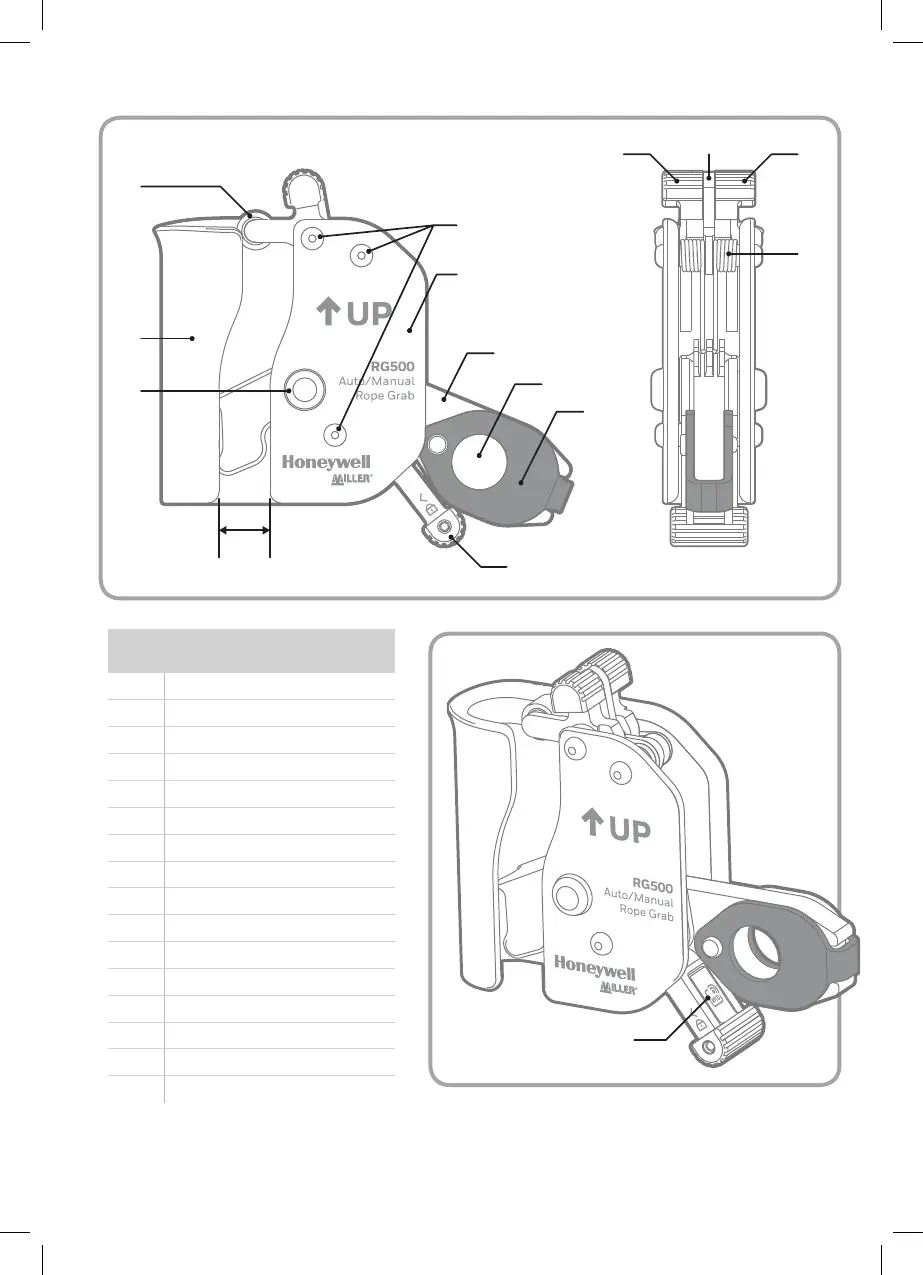

Fig. 1
Fig. 2
15
14
5 6
9
7
13
3
1
10
11
12
8
4
2
* Maximum allowed length of flexible anchor line is 50m.
