Honeywell RTH5100B Installation Guide

Installation Guide
12

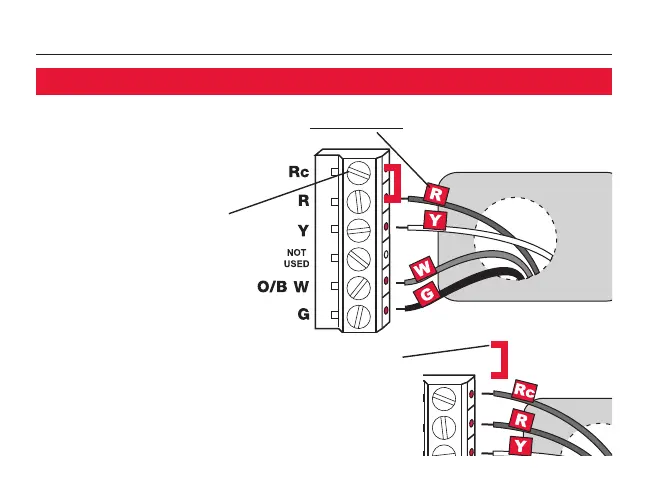

Remove metal
jumper if you
have both R
and Rc wires.
Labels don’t match?
If labels do not match letters
on thermostat, see next page.
1. Match each labeled wire with same letter on terminal.
2. Use a screwdriver to
loosen screw term-
inals, insert wires,
then tighten screws.
3. Push any excess
wire back into the
wall opening.
Connect wires (typical installation)

Honeywell RTH5100B Specifications

General

Brand	Honeywell
Model	RTH5100B
Category	Thermostat
Language	English
