Honeywell RTH7400 series Owner's Manual

6

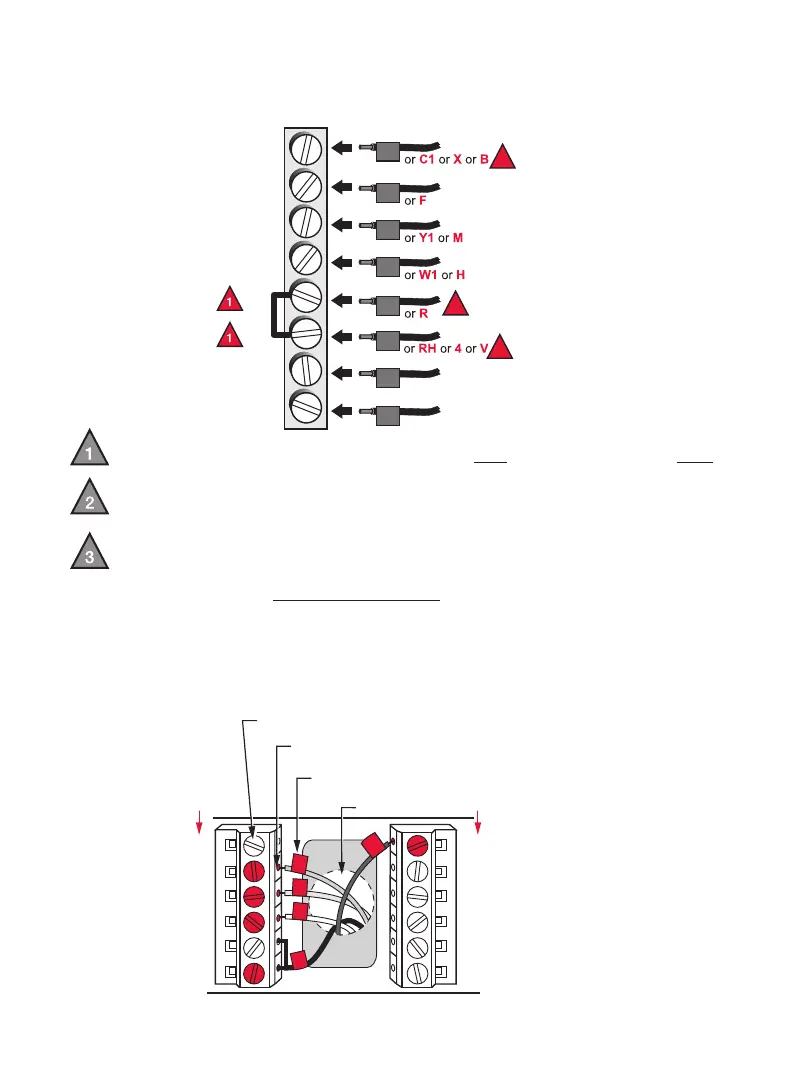

Alternate Wiring (Conventional Systems)
If labels do not match terminals, connect wires as shown here (see notes,
below).
Alternate Wiring (Heat Pump)
If labels do not match letters on thermostat, see page 7.
Remove metal jumper connecting R and Rc only if you must connect both
R and Rc wires.
If your old thermostat had both R and RH wires, remove metal jumper.
Connect the R wire to the Rc terminal, and the RH wire to the R terminal.
If your old thermostat had only 1 C or C1 wire, connect it to the C terminal.
If your old thermostat had 2 C or C1 wires, wrap each separately with
electrical tape and do not connect them.
C
G
Y
W
RC
R
W2
Y2
Y2
W2
W
Y
G
MCR32160
R
2
Rc
2
C
3
NOTE: If E and Aux
do not each have a
wire connected, use a
small piece of wire to
connect them to each
other.
C
G
Y
O/B
RC
R
HEAT PUMP
MCR28104A
Aux
E
L
LABELED WIRES
SCREW
INSERT WIRES
THEN TIGHTEN SCREWS
WIRE HOLE
Y
G
R
O
HEAT PUMP
Aux

Honeywell RTH7400 series Specifications

General

Display Type	Digital
Programmable	Yes
Program Periods Per Day	4
Wi-Fi Connectivity	No
Programmability	7-Day
Voltage	24V
Backlight	Yes
Power Source	Battery
Battery	AA
Temperature Range	40°F - 90°F
