Honeywell RTH7400 series Owner's Manual

5

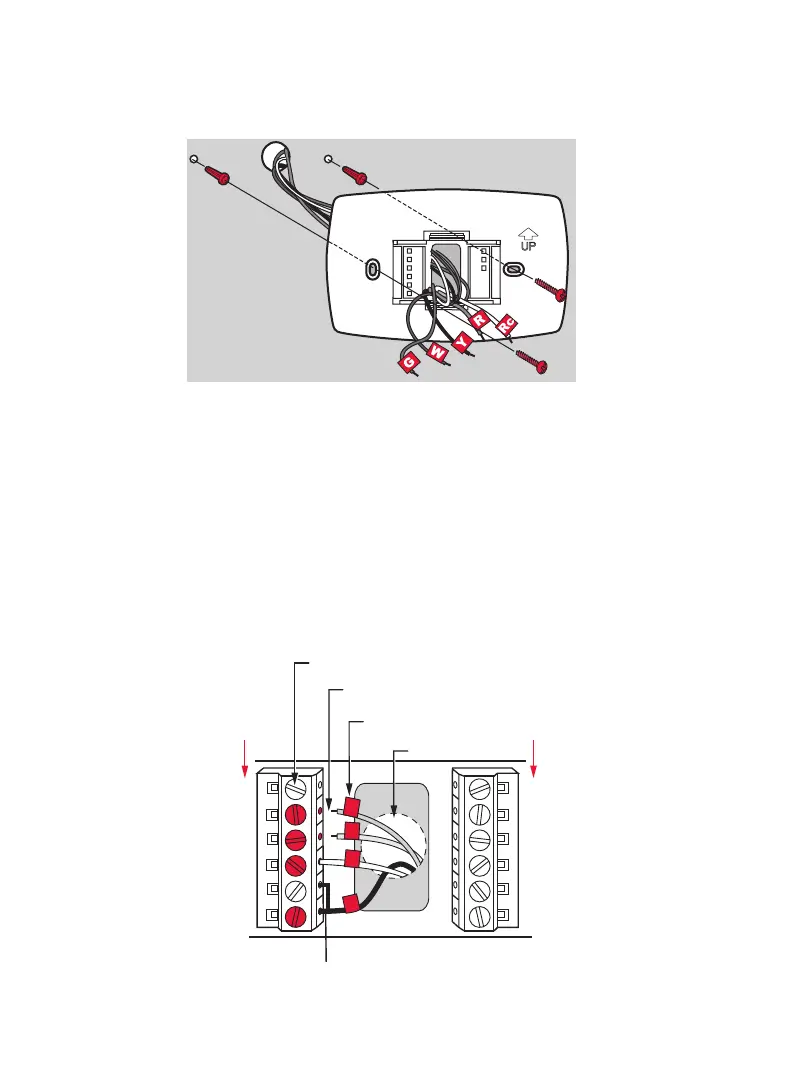

5 Mount Wallplate
Mount the new wallplate using the included screws and anchors.
Drill 3/16-in. holes for drywall
Drill 3/32-in. holes for plaster
6 Connect Wires
Simply match wire labels.
If labels do not match letters on the thermostat, check “Alternate Wiring
(Conventional Systems)” on page 6 and connect to terminal as shown here
(see notes, below).
We are here to help. Call 1-800-468-1502 for wiring assistance.
M28094
Remove metal jumper if you have
both R and Rc wires.
MCR28845
W2
Y2
C
G
Y
W
RC
R
LABELED WIRES
SCREW
CONVENTIONAL
INSERT WIRES
THEN TIGHTEN SCREWS
WIRE HOLE
Y
G
R
W
CONVENTIONAL

Honeywell RTH7400 series Specifications

General

Display Type	Digital
Programmable	Yes
Program Periods Per Day	4
Wi-Fi Connectivity	No
Programmability	7-Day
Voltage	24V
Backlight	Yes
Power Source	Battery
Battery	AA
Temperature Range	40°F - 90°F
