Installing your thermostat

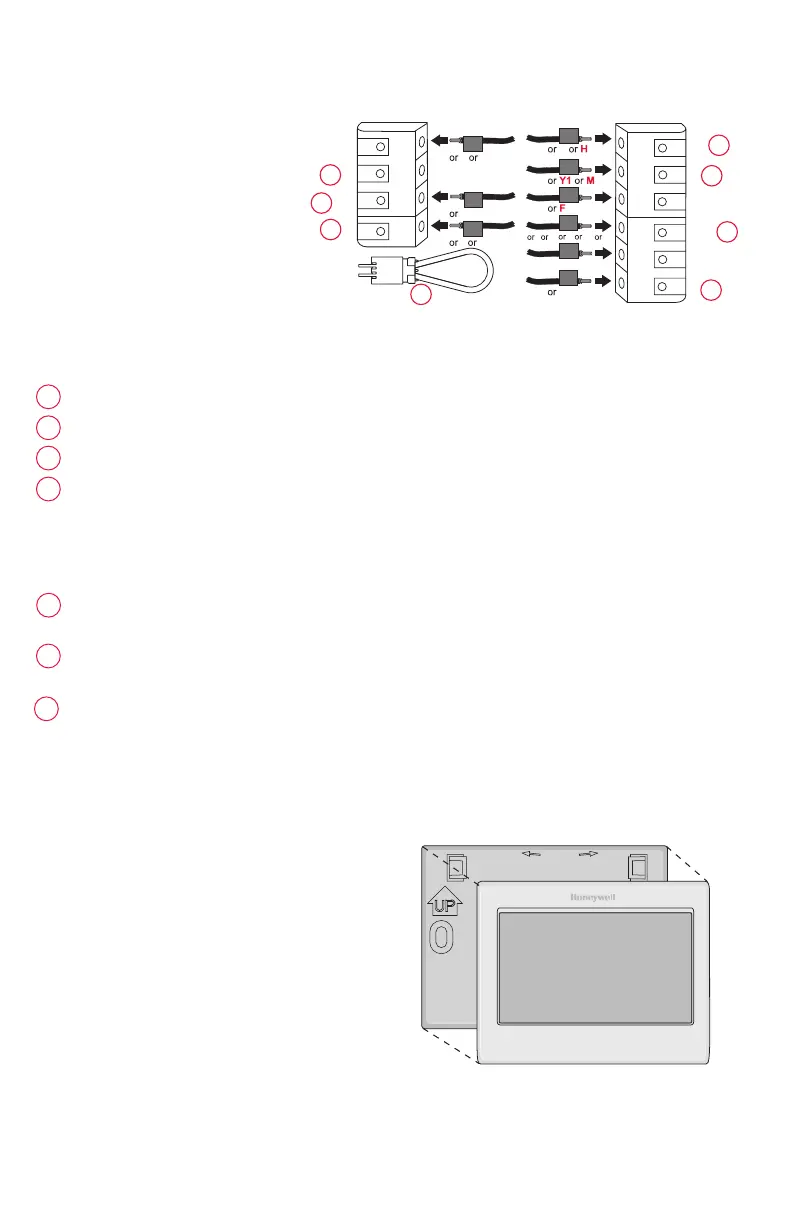

Alternate wiring (Heat Pump System)
Use this if your wire labels
don’t match the terminal labels.
Note: You must have a C wire
or equivalent. See page 5.
MCR34542
C
R
O
Y
G
3
1
C
K
Rc
R
W-
O/B
Y
G
W2-
Aux/E
Y2
L
4
5
6
AUX
X X2
Y2
2
B
7
X
B
Rc
R
V
VR
2
L
F
W W1
W2
Do not use K terminal. For future use.
Leave jumper loop in place.
If your old thermostat had both V and VR wires, check withermostat.com for help.
If your old thermostat had separate O and B wires, attach the B wire to the C
terminal. If another wire is attached to the C terminal, check withermostat.com
for help. Attach the O wire to the O/B terminal. On the Type of Changeover Valve
screen, select Cooling Changeover Valve. See page 28. If your old thermostat
had an O wire and not a B wire, attach the O wire to the O/B terminal.
If your old thermostat had separate Y1, W1, and W2 wires, check
withermostat.com for help.
If the old thermostat has separate wires on Aux and E, use a wire nut to attach
both wires to a separate wire. Slide this third wire into the W2-Aux/E terminal.
This is the system monitor. If the monitor nds a problem, you will see an orange
alert button on the thermostat home screen.
Alternate wiring key (Heat Pump System)
2
3
1
4
6
5
7
7 Attach thermostat to wallplate.
Align the thermostat with the
wallplate and then snap into place.
Thermostat
Wallplate
LEVEL
HERE
M34498

Honeywell RTH9580 Specifications

General

Display	Color touchscreen
Connectivity	Wi-Fi
Programmable	Yes
Temperature Control	Precise temperature control
Product Type	Smart Thermostat
Compatibility with Heating and Cooling Systems	Most 24V heating and cooling systems
