CLOSEMOUNT INSTRUCTIONS

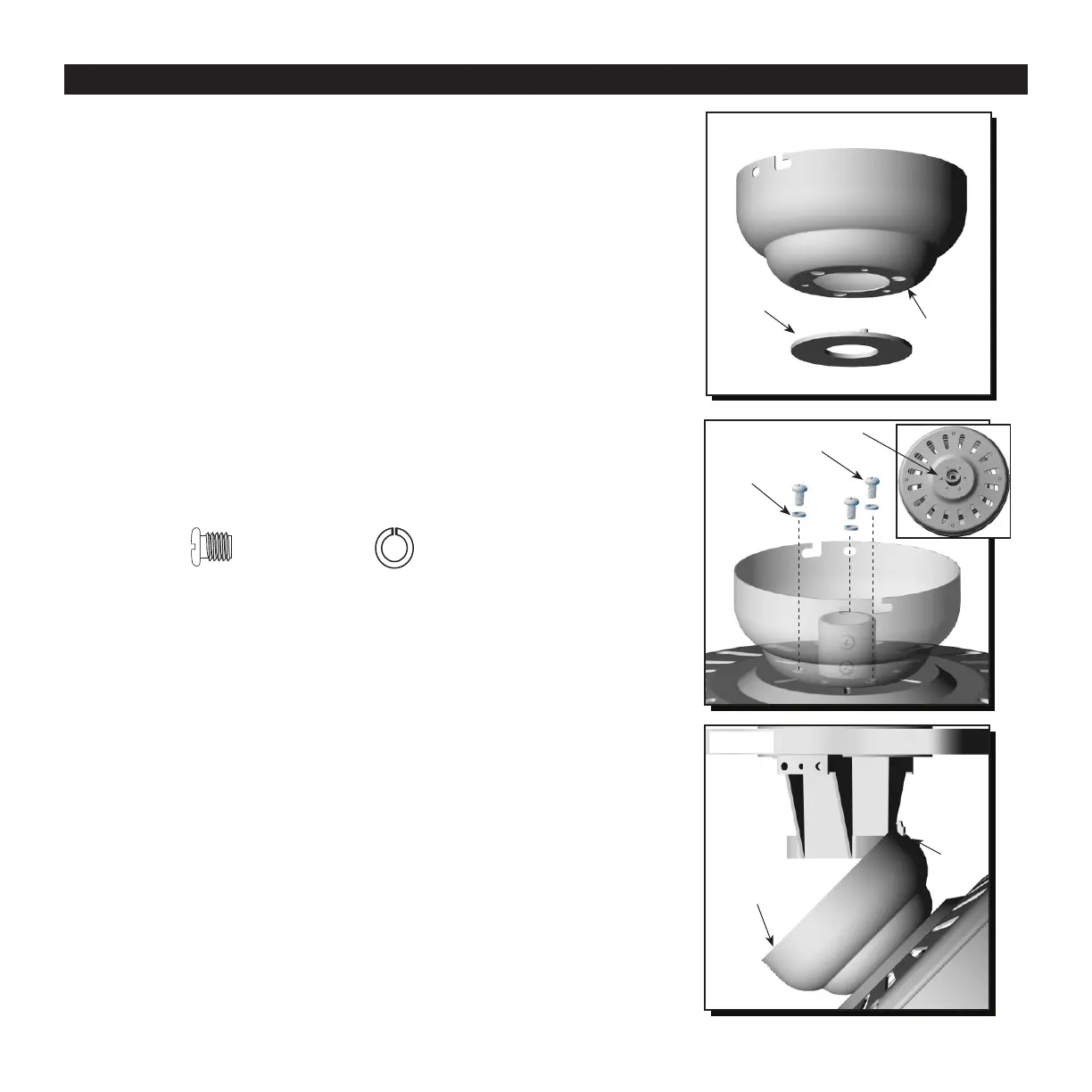

13. Remove the canopy cover from the bottom of the
canopy (Fig. 13)
Helpful Hint: The downrod, hanging ball, and canopy
cover are not used in this type of installation.
15. Raise the fan and place the canopy on the hook
located on the mounting bracket for wiring (Fig. 15).
Canopy
Canopy
Hook
Canopy
Cover
Fig. 13
Fig. 15
14. Align the canopy with the closemount screw holes
in the top of the motor housing. Secure the canopy
to the top of the motor housing with the three
closemount screws and spring washers (Fig. 14).
Closemount Screw
Spring Washer
Closemount
Screws
Spring
Washer
Fig. 14
