Honeywell SCS-8 User Manual

198 SCS Series Manual — P/N 15712:L 7/18/16
AM2020/AFP1010 Control-By-Event Programming Examples
A.6 Programming Examples
Options

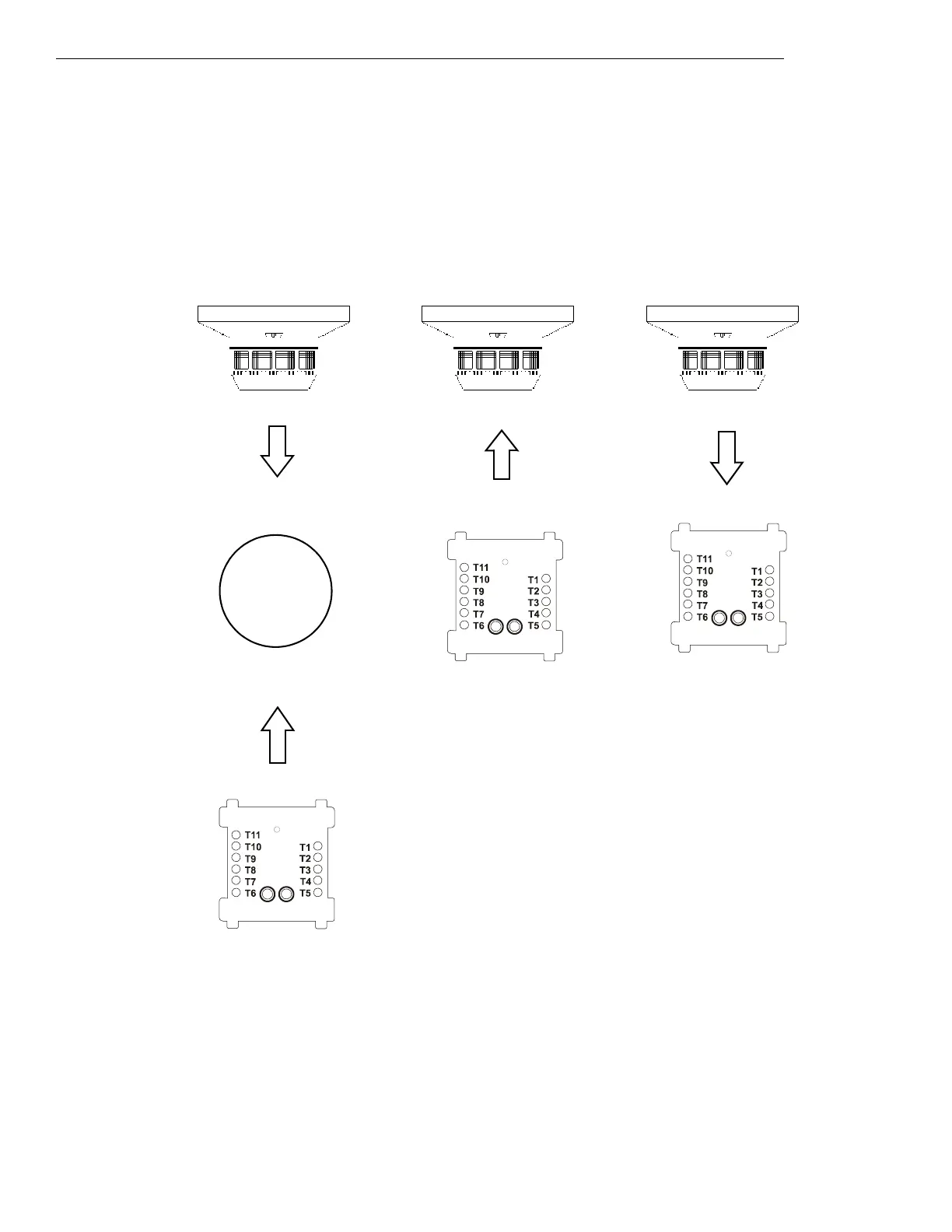

The example below illustrates three ways to accomplish the simple programming task of programming a Notification Appliance (control
module) on SLC Loop 1 to indicate activation of an Initiating Device (smoke detector) also on SLC Loop 1.
Solution A
Program the smoke
detector with the
Control-By-Event:
(Z1)
Solution B
No Control-by-Event
required for the smoke
detector.
Solution C
Program the smoke
detector with the
Control-By-Event:
(L1M1)
Software
Zone Z1
Type: FZON
Program the control
module with the
Control-by-Event
OR(L1D1)
No Control-by-Event
required for the control
module.
Program the control
module with the
Control-by-Event
OR(Z1)
