SCS-8L⁄SCE-8L Installation The SCS⁄SCE
The maximum output current for each LED or Lamp is 50 mA if powered by 24 VDC or 20 mA if powered by 5 VDC.
NOTE: All LEDs must be located in the same room as the modules.
Trouble Lamps (groups 1-8 f
8L, groups 9-16 for SCE
Trouble Lamp group 1 or 9
Trouble Lamp group 2 or 10
Trouble Lamp group 3 or 11
Trouble Lamp group 4 or 12
Trouble Lamp group 5 or 13
Trouble Lamp group 6 or 14
Trouble Lamp group 7 or 15
Trouble Lamp group 8 or 16
ON/OFF Lamps
(groups 1-4 for SCS-8L,
groups 9-12 for SCE-8L)
OFF Lamp group 4 or 12
ON Lamp group 4 or 12
OFF Lamp group 3 or 11
ON Lamp group 3 or 11
OFF Lamp group 2 or 10
ON Lamp group 2 or 10
OFF Lamp group 1 or 9
ON Lamp group 1 or 9
ON/OFF Lamps
(groups 5-8 for SCS-8L,
groups 13-16 for SCE-8L)
ON Lamp group 5 or 13
OFF Lamp group 5 or 13
ON Lamp group 6 or 14
OFF Lamp group 6 or 14
ON Lamp group 7 or 15
OFF Lamp group 7 or 15
ON Lamp group 8 or 16
OFF Lamp group 8 or 16

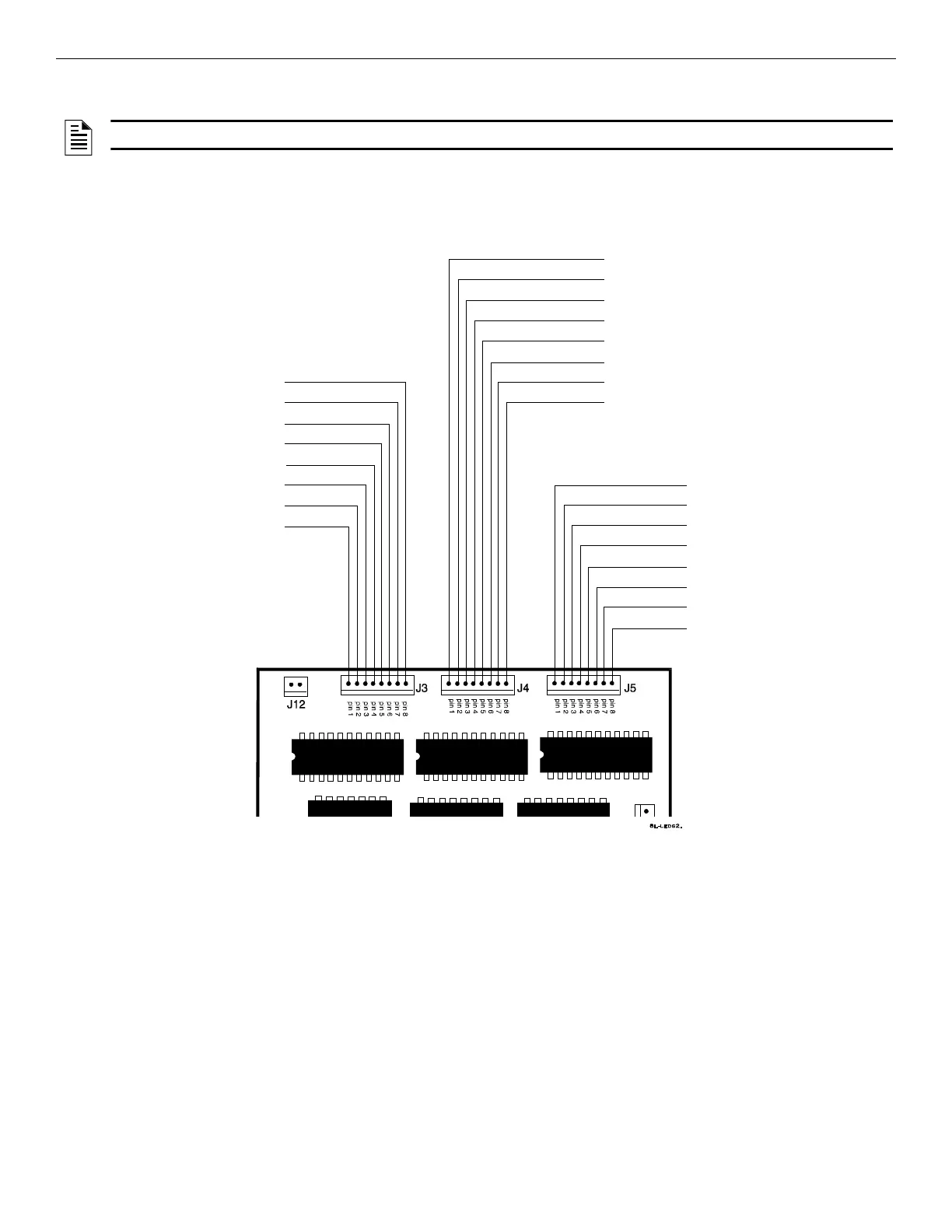

Figure 3.20 Lamp Wiring for SCS-8L⁄SCE-8L
