8 Connection of Room Devices
For Smile controllers several variants of room devices (wall
modules) are provided.
8.1 Room Sensor RF20
Configuration:
Configuration and allocation is done via parameter 08, 09 or 10 in
the “Hydraulic” menu.
Electrical connection occurs according to the assignment to
variable input 1 (VE1) … variable input 3 (VE3) (Wall socket).

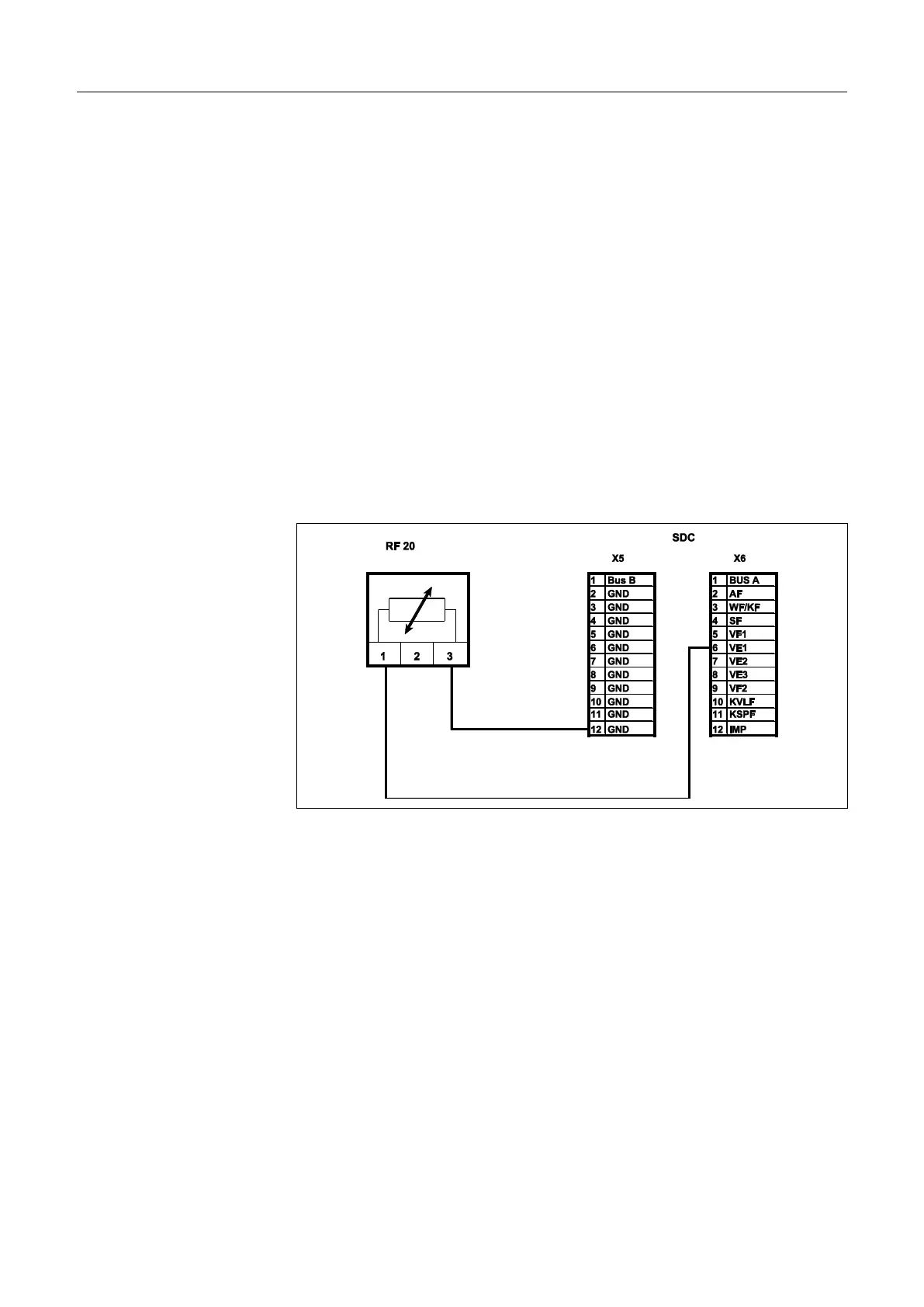

Example: Assignment of room sensor to input VE1
1 Actual value
3 GND
