Honeywell SDC 9-21 - Page 67

SDC Εφαρμογές θέρμανσης / Heating applications
MU1H-0438GE51 R0313 67

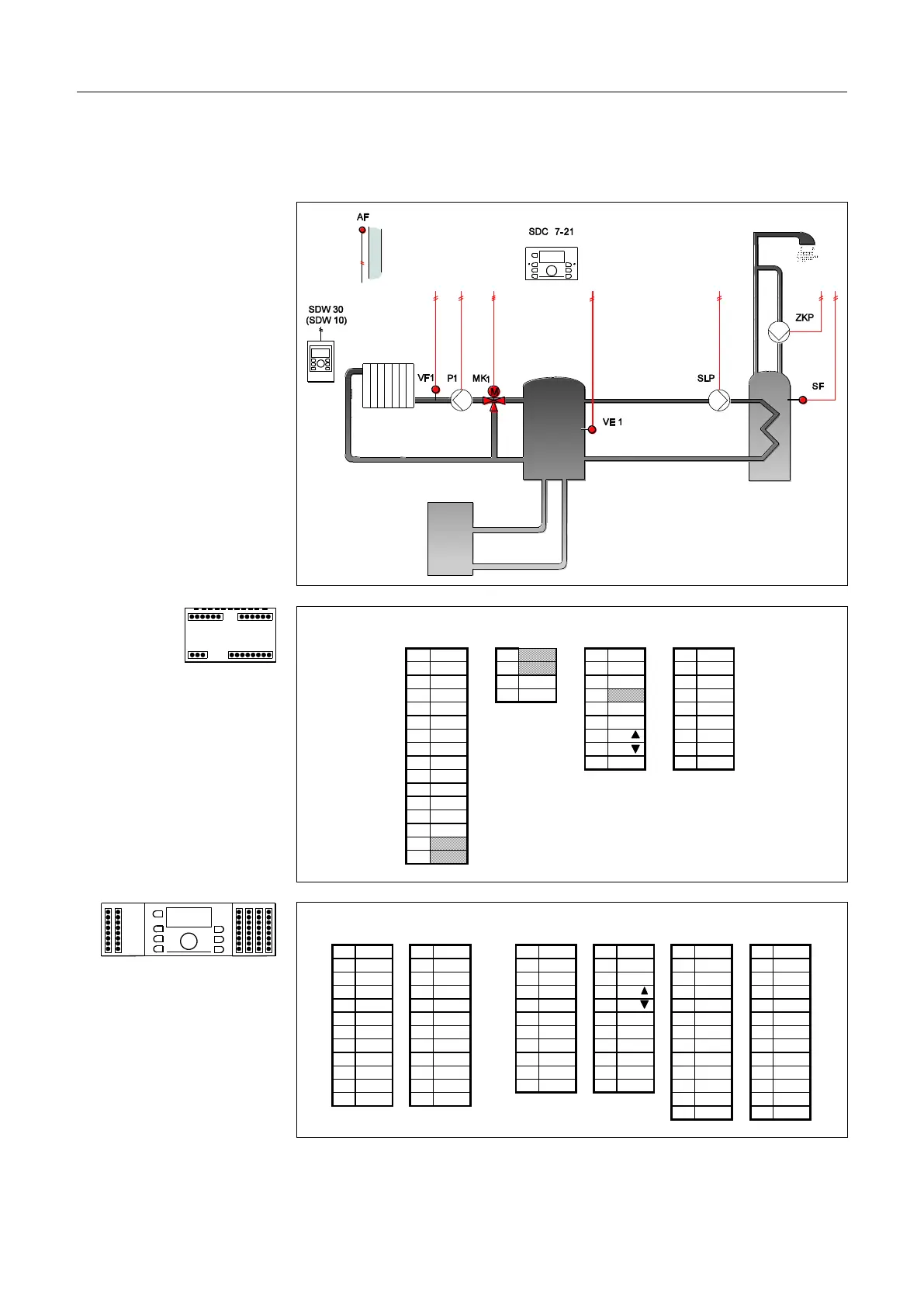

10.12 Υδραυλικό σύστημα 0406 (SDC 7-21)
Hydraulics 0406 (SDC 7-21)
X 1 X 2 X 3 X 4
23 GND 19 1 10
24 BUS A 20 2 11
25 BUS B 21 N 3 ZKP 12
26 AF 22 L1 4 13
27 5 SLP 14
28 SF 6 L 1 15
29 VF1 7 MK1 16
30 VE1 8 MK1 17
31 9 P1 18
32
33
34
35
36
37
38
X 5 X 6 X 7 X 8 X 9 X 10
1 Bus B 1 Bus A 1 1 1 N 1 PE
2 GND 2 AF 2 2 DKP 2 N 2 PE
3 GND 3 3 3 SLP 3 N 3 PE
4 GND 4 SF 4 4 MK1 4 N 4 PE
5 GND 5 VF 1 5 L 1 5 MK1 5 N 5 PE
6 GND 6 VE1 6 6 P 1 6 N 6 PE
7 GND 7 7 7 7 N 7 PE
8 GND 8 8 8 8 N 8 PE
9 GND 9 9 9 9 N 9 PE
10 GND 10 10 10 10 N 10 PE
11 GND 11 11 11 11 N 11 PE
12 GND 12 12 N 12 PE
13 N 13 PE
Εισαγωγή παραμέτρων βλ. 10.12.1 σελ. 68.
For parameter entry, see 10.12.1 pg. 68.
