Honeywell T5 Quick Install Guide

11

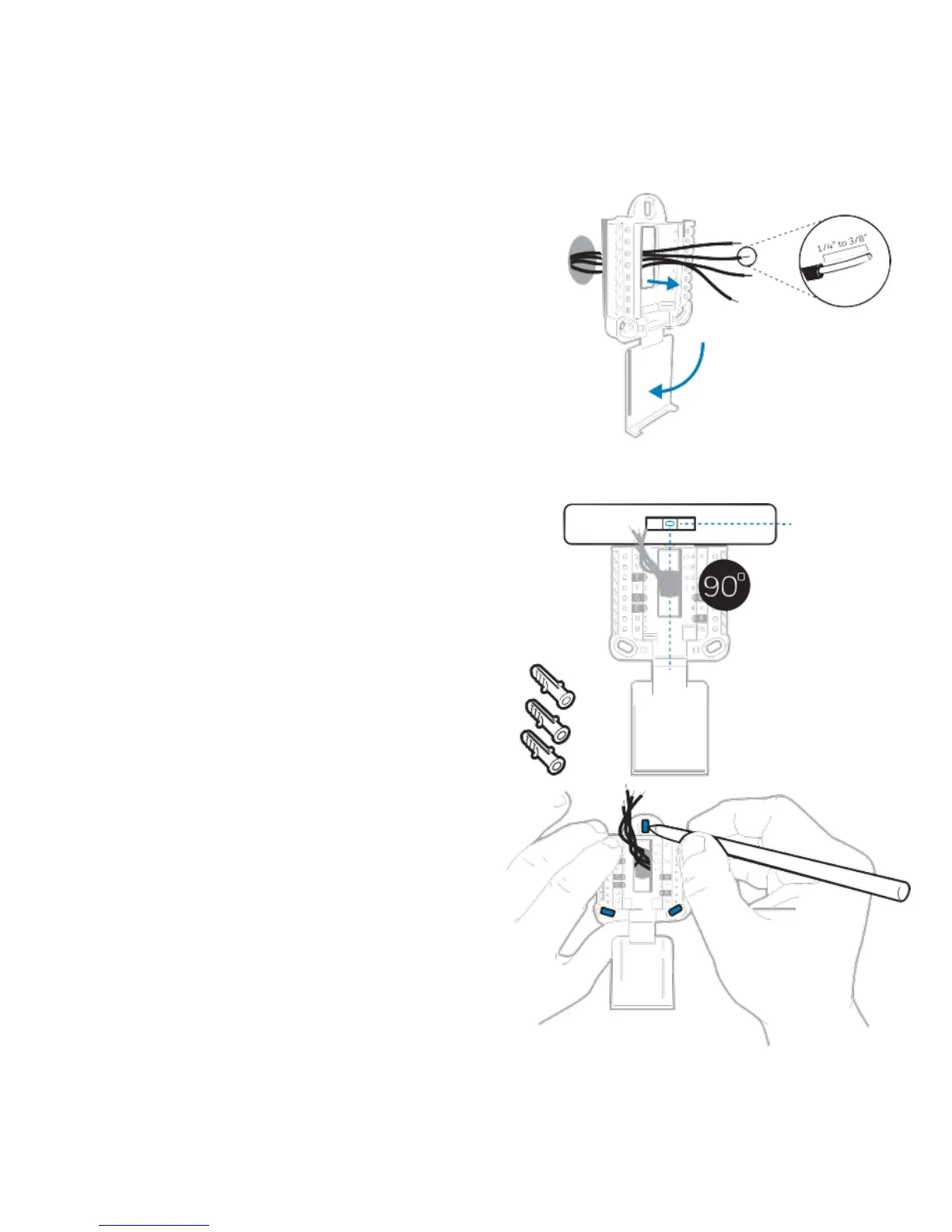

10 Bundle and insert wires through
the UWP
Pull open the UWP and insert the
bundle of wires through the back of
the UWP.
Make sure at least 1/4-inch of each
wire is exposed for easy insertion into
the wire terminals.
11 Insert the wall anchors
It is recommended that you use the
wall anchors included in the box to
mount your thermostat.
You can use the UWP to mark where
you want to place the wall anchors.
a) Level the wall plate.
b) Mark the location of the wall
anchors using a pencil.
c) Drill the holes.
d) Insert wall anchors.
e) Make sure anchors are flush with
wall.
Tip: Use a 7/32 drill bit.

Honeywell T5 Specifications

General

Model	T5
Type	Programmable Thermostat
Connectivity	Wi-Fi
Display	Touchscreen
Temperature Range	40°F to 99°F (4°C to 37°C)
Humidity Control	No
Remote Access	Yes, via Honeywell Home App
Compatibility	Amazon Alexa, Google Assistant, Apple HomeKit
Scheduling	7-day programmable
Stages	1 Heat / 1 Cool
Features	Smart Alerts
Dimensions	4.06 in. high x 4.06 in. wide x 1.06 in. deep
