Honeywell T5 Quick Install Guide

12
2.

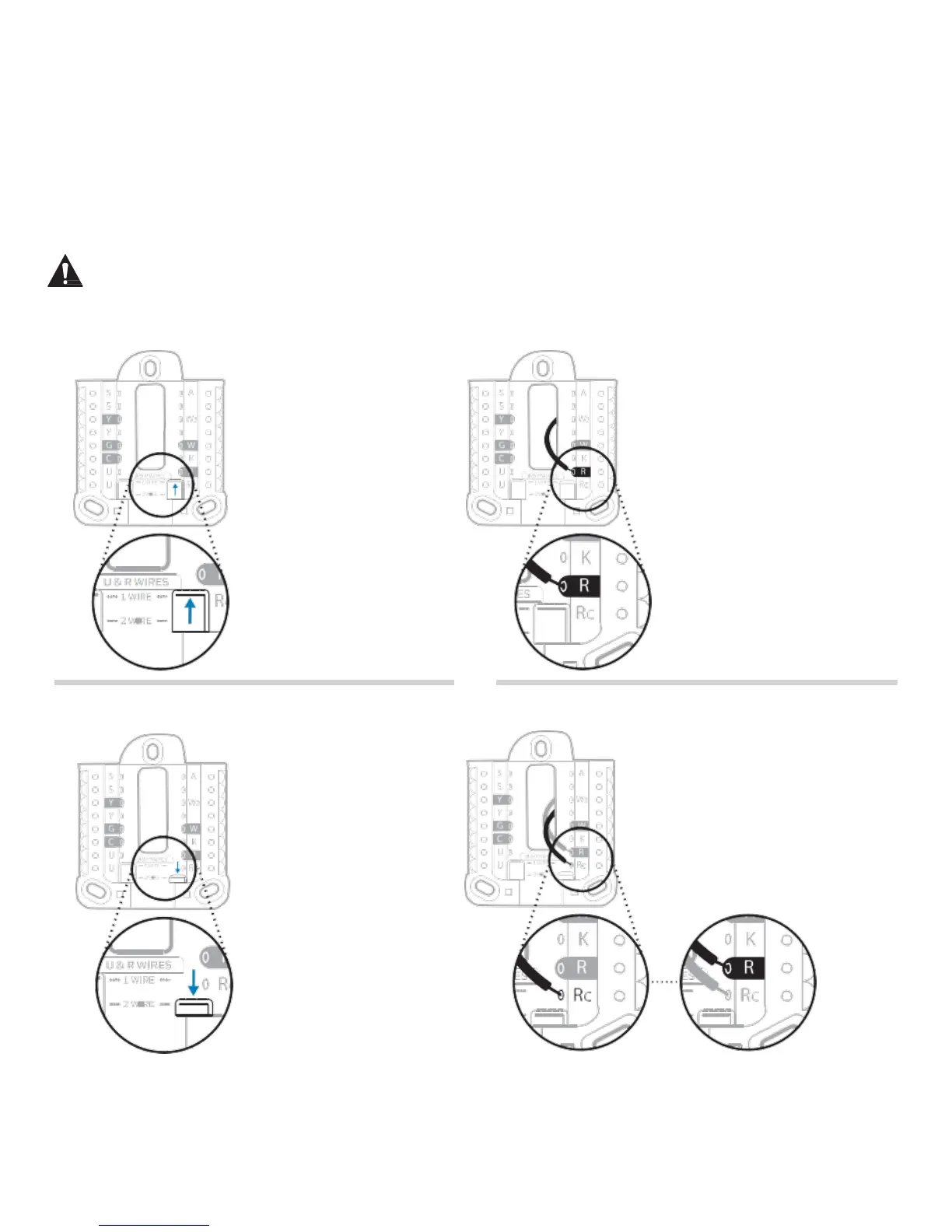

12 Set R-switch position and insert R-wire or wires
Set the R-switch up or down based on your wiring notes in Step 7.
Insert wires into the inner holes of the terminals on the UWP. The tabs will
stay down once the wire is inserted.
If you have 1 R-wire (R, Rh, or Rc)
Insert your R-wire
(R, Rh or Rc) into
R-terminal.
or
If you have 2 R-wires (R or Rh, and Rc)
1. Set R-switch
to the down
position.
2. Insert your Rc wire
into Rc-terminal.
3. Insert your R or Rh
wire into R-Terminal.
1. Set R-switch to
the up position.

Honeywell T5 Specifications

General

Model	T5
Type	Programmable Thermostat
Connectivity	Wi-Fi
Display	Touchscreen
Temperature Range	40°F to 99°F (4°C to 37°C)
Humidity Control	No
Remote Access	Yes, via Honeywell Home App
Compatibility	Amazon Alexa, Google Assistant, Apple HomeKit
Scheduling	7-day programmable
Stages	1 Heat / 1 Cool
Features	Smart Alerts
Dimensions	4.06 in. high x 4.06 in. wide x 1.06 in. deep
