Honeywell T5 Quick Install Guide

13

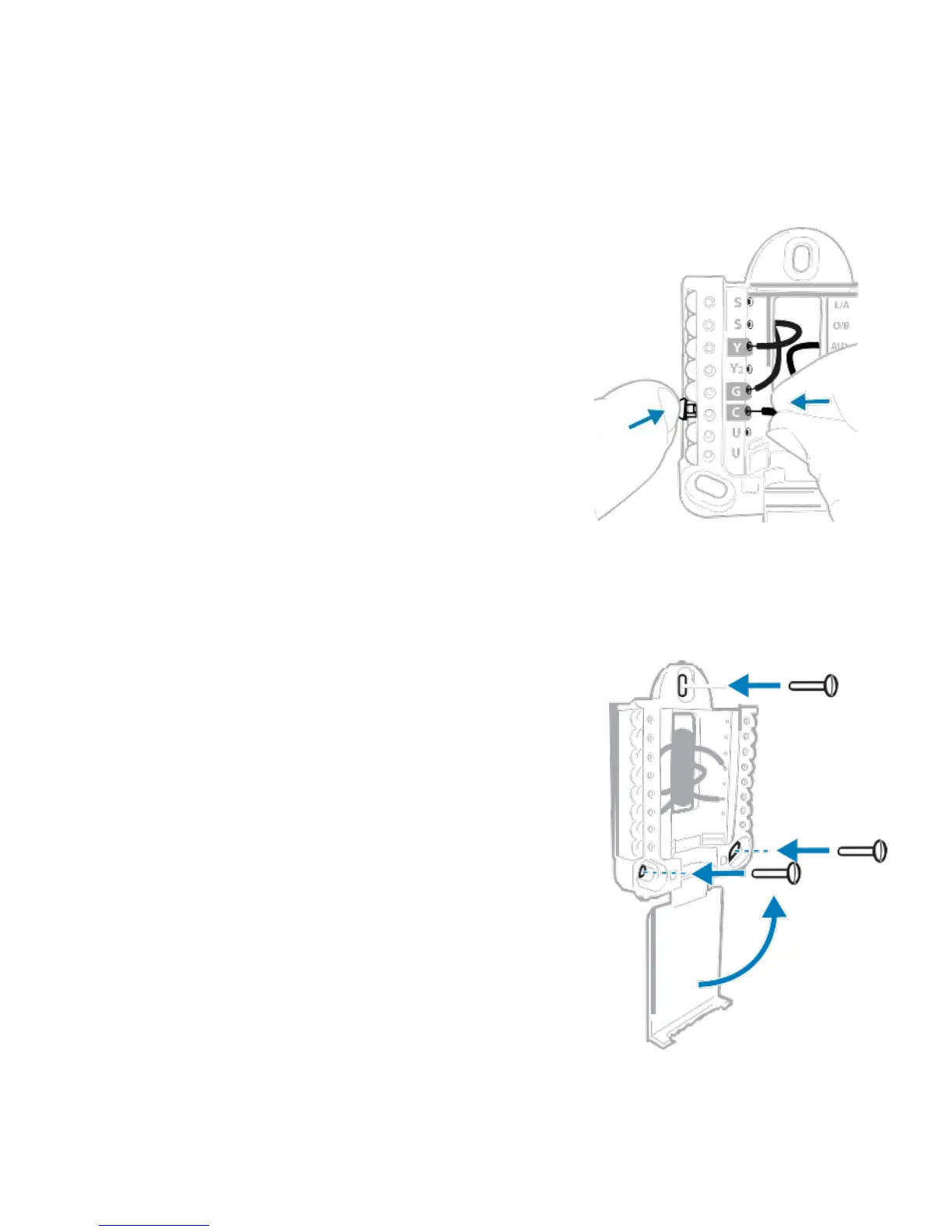

13 Connect remaining wires from Step 8
Tip: Do not mount the UWP to the wall
prior to connecting the wires.
Depress the tabs to put the wires into
the inner holes of their corresponding
terminals on the UWP (one wire per ter-
minal) until it is firmly
in place.
Gently tug on the wires to verify they
are secure.
Tip: If you need to release the wires
again, push down the terminal tabs on
the sides of the UWP.
14 Mount the UWP and close the door
Mount the UWP using the provided
screws. Install all three screws for a
secure fit on your wall. Close the door
after you’re finished.
This wiring is just an example,
actual wiring may vary.
Use 3x
supplied
screws #8
1-1/2”

Honeywell T5 Specifications

General

Model	T5
Type	Programmable Thermostat
Connectivity	Wi-Fi
Display	Touchscreen
Temperature Range	40°F to 99°F (4°C to 37°C)
Humidity Control	No
Remote Access	Yes, via Honeywell Home App
Compatibility	Amazon Alexa, Google Assistant, Apple HomeKit
Scheduling	7-day programmable
Stages	1 Heat / 1 Cool
Features	Smart Alerts
Dimensions	4.06 in. high x 4.06 in. wide x 1.06 in. deep
