T7200D,E, T7300D,E,F AND Q7300 SERIES 2000 PROGRAMMABLE COMMERCIAL THERMOSTATS AND SUBBASES

63-4355—2 6

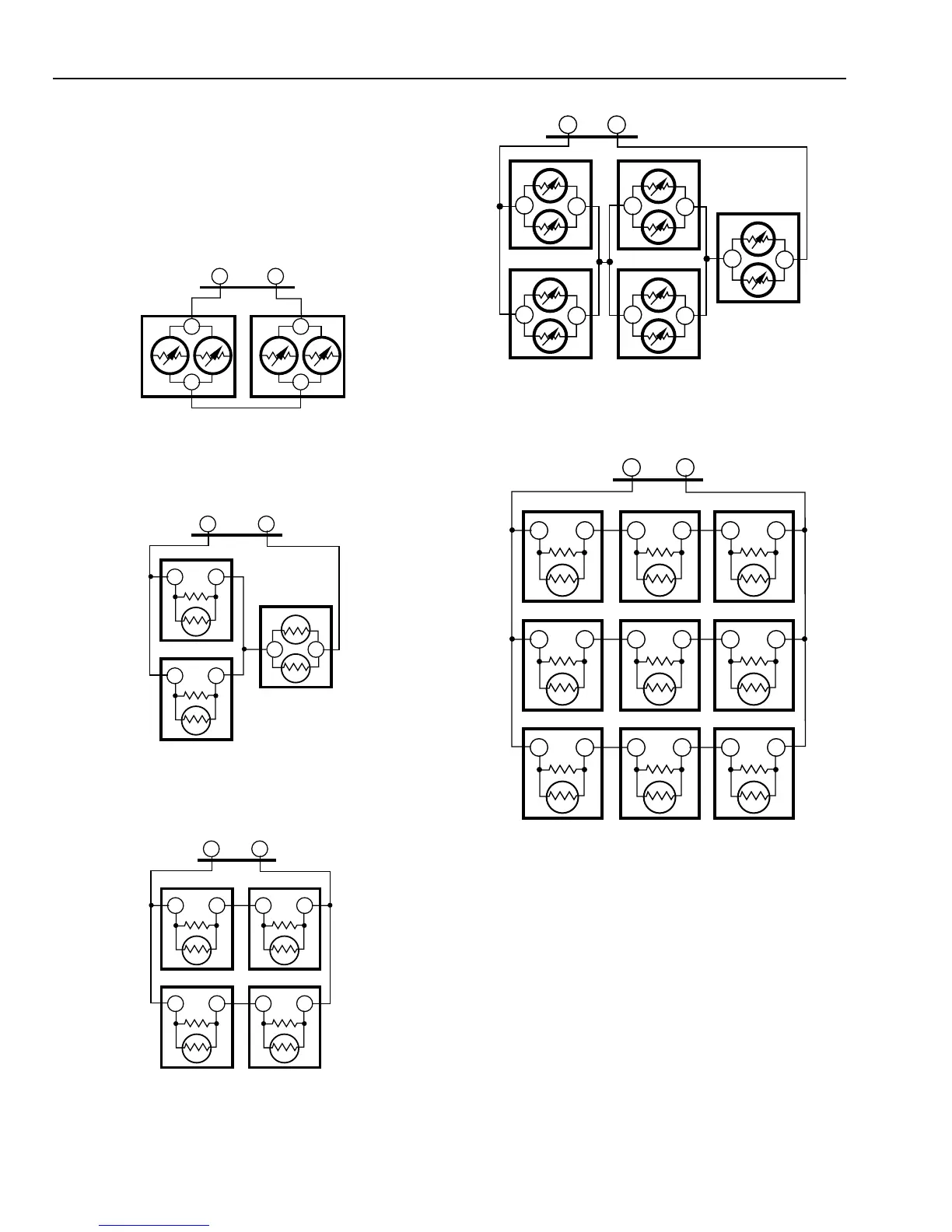

Fig. 3. Two T7047G Sensors providing

temperature averaging network for

T7300/Q7300 Thermostat/Subbase.

M4838

SUBBASE

T7047GT7047G

M4839

SUBBASE

T7047C

T7047G

M4840

SUBBASE

T7047C

M4841

SUBBASE

T7047G

M4842

SUBBASE

T7047C

IMPORTANT

To avoid electrical interference, which can cause

erratic performances, keep wiring runs as short as

possible and do not run thermostat wires adjacent to

the line voltage electrical distribution systems. Use

shielded cable (Belden type 8762 or equivalent for

2-wire and Belden type 8772 or equivalent for 3-wire).

The cable shield must be grounded only at the

controlled equipment case.

Fig. 4. Two T7047C Sensors and one T7047G Sensor

providing temperature averaging network for

T7300/Q7300 Thermostat/Subbase.

Fig. 5. Four T7047C Sensors providing

temperature averaging network for

T7300/Q7300 Thermostat/Subbase.

Fig. 6. Five T7047G Sensors providing

temperature averaging network for

T7300/Q7300 Thermostat/Subbase.

Fig. 7. Nine T7047C Sensors providing temperature

averaging network for T7300/Q7300 Thermostat/Subbase.

NOTE: When thermostat is configured for temperature

averaging network (remote and internal sensing), the

internal sensor has 50% authority of the averaged

temperature.

Mounting Subbase or Wallplate

The subbase or wallplate mounts horizontally on the wall or a

2 in. x 4 in. wiring box. Position the subbase or wallplate

horizontally on the wall or on a 2 in. x 4 in. wiring box.

1. Position and level the subbase or wallplate (for

appearance only). The thermostat functions properly

even when not level.

2. Use a pencil to mark the mounting holes. See Fig. 8.
