T7560A,B,C DIGITAL WALL MODULES
EN0B-0237GE51 R0509 2

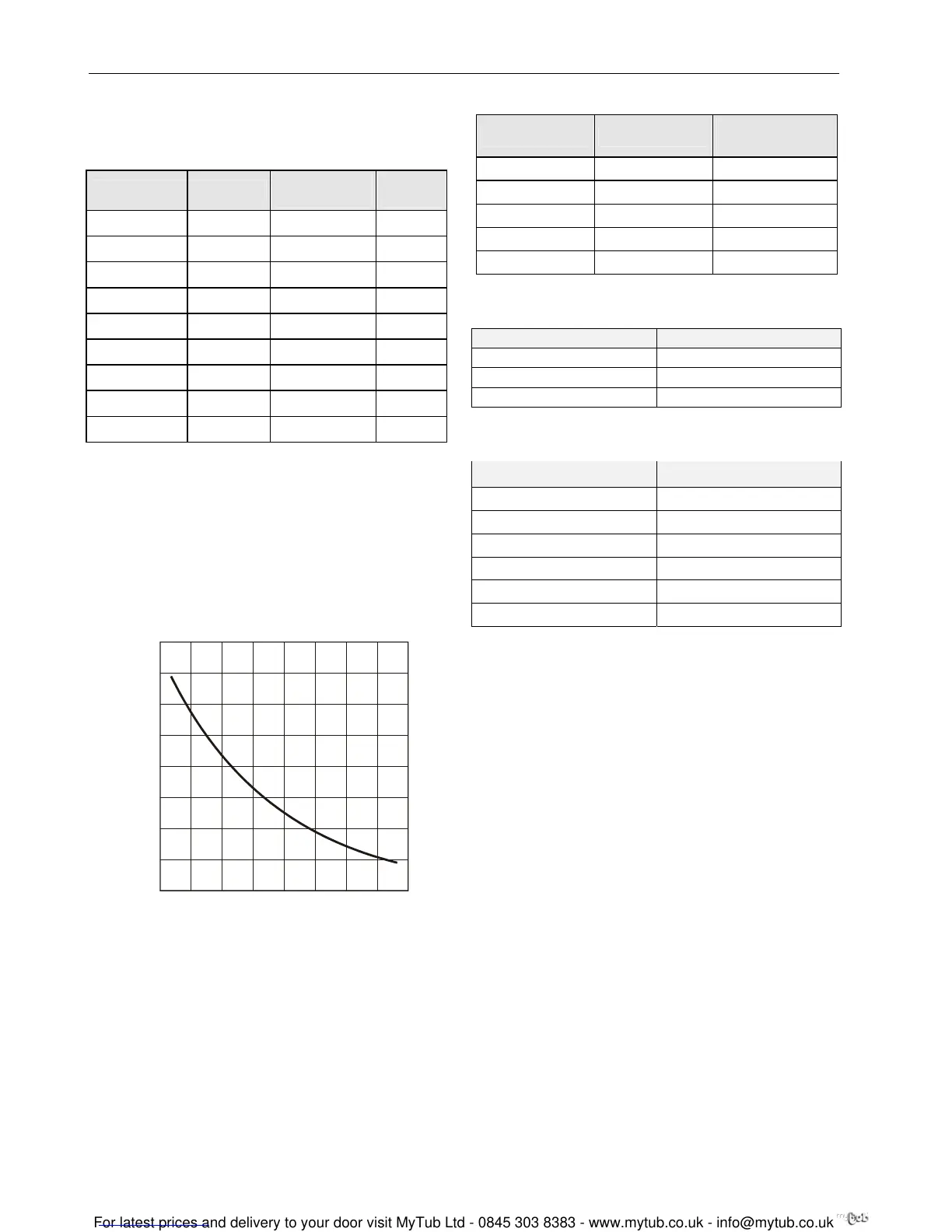

SPECIFICATIONS
Models
Table 1. Types of DWM
sensor
1
colors
(dial / housing)
pre-conf.
units
T7560A1000 Tmp blue/white °C
T7560A1026 Tmp white/white °C
T7560A1018 Tmp white/white °F
T7560A1042* Tmp white/white °F
T7560B1008 Tmp/Hum blue/white °C
T7560B1024 Tmp/Hum white/white °C
T7560B1016 Tmp/Hum white/white °F
T7560B1032* Tmp/Hum white/white °F
T7560C1006 Tmp/Hum blue/white n.a.
1
Tmp = Temperature sensor; Hum = Humidity sensor
*U.S. versions with mounting base.
Temperature Sensor Accuracy
The DWM is furnished with a 20kΩ NTC temperature sensor
that follows a specific temperature-resistance curve. See Fig.
1. Honeywell controllers used with the DWM employ an
algorithm providing readings close to the actual temperature.
Table 2 summarizes the DWM sensor accuracy for normal
operating temperatures. Across the range of 43 to 104°F (6 to
40°C), the accuracy is better than ±0.75°F (±0.42°C).
80 K
70 K
60 K
50 K
40 K
30 K
20 K
10 K
30
0 10 20 30 40
40 50 60 70 80 90 100 110
°
F
°C
temperature (degrees)
elec
t
r
ical
r
e
s
i
s
t
ance (
o
h
m
s
)
Fig. 1. Temperature vs. resistance for 20kΩ sensor
Table 2. Temperature sensor accuracy
ambient tem. (°C) max. error (°C)
nominal re-
sistance (Ω)
15.5 ±0.29 31543
18.3 ±0.27 27511
21.1 ±0.27 24047
26.7 ±0.27 18490
29.5 ±0.29 16264
Humidity Sensor
Table 3. Humidity sensor specifications
parameter value
humidity sensing range 10…95% r.h.
output signal 1…10 Vdc (10…100% r.h.)
accuracy ±5% (full-scale)
Fan Speed Button (T7560A,B, only)
Table 4. Switch position and fan behavior
switch position fan behavior
auto runs as scheduled
0 OFF
1 runs at speed 1
2 runs at speed 2
3 runs at speed 3
bypass activated unchanged
NOTE: If connected to Excel 10 UV Controller W7753, fan
output will not be shorted to ground on pressing the
BYPASS button; with every other Excel 10
Controller, it will be shorted.
See T7560A,B,C Installation Instructions (product
literature no.: EN1B-0146GE51) for configuration.
Power Supply
24 Vac/dc with a valid range of 18...30 V
5 Vdc via LED input with a valid range of 5...15 V
See T7560A,B,C Installation Instructions (product literature
no.: EN1B-0146GE51) for details.
Power Consumption
<0.2 VA at 24 Vac, 50/60 Hz
DWM Setpoint Adjustment
The setpoint accuracy is ± 0.3 K (± 0.54 °F).
