T8601D CHRONOTHERM
®
IV DELUXE ZONE THERMOSTATS
69-1413—2 2

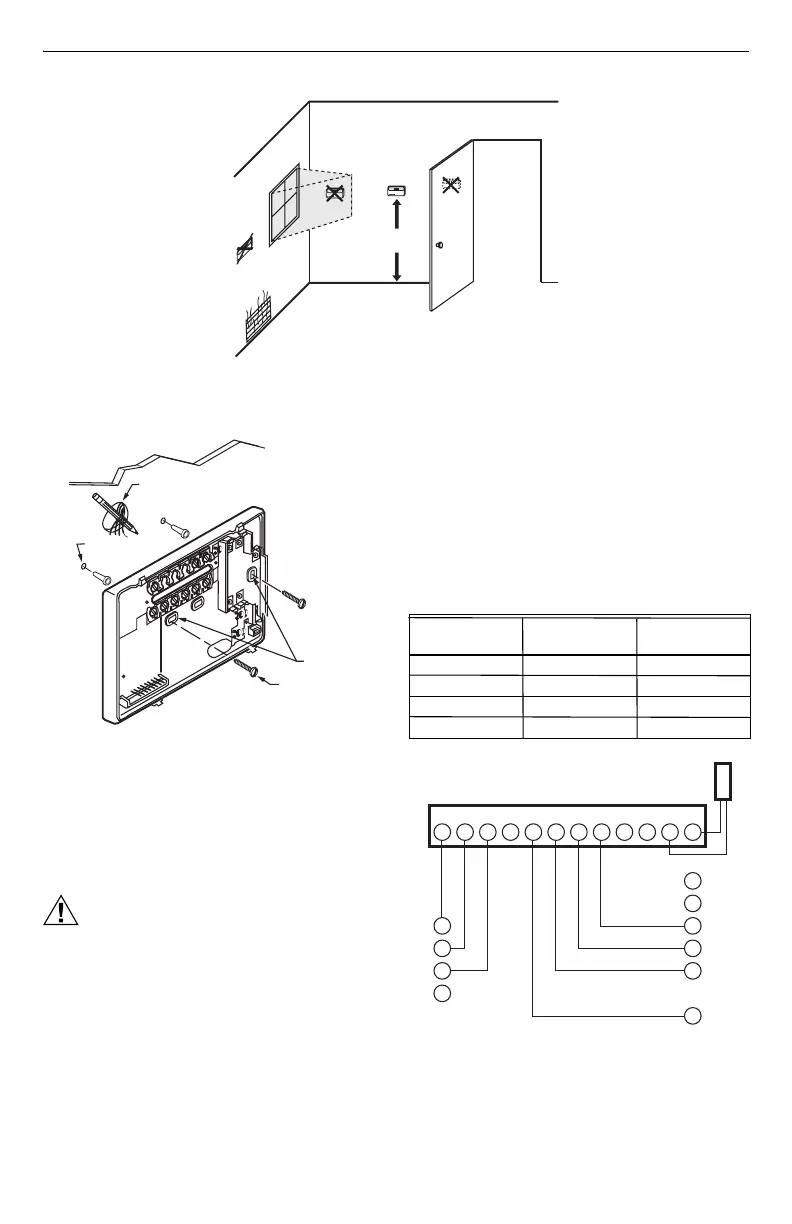

Fig. 1. Typical location of thermostat.
Fig. 2. Mounting the wallplate.
WIRING
All wiring must comply with local electrical codes and
ordinances. Refer to Fig. 3 and 4 for typical hookups. A
letter code is located near each terminal for identification.
CAUTION
Electrical Hazard.
Can cause electrical shock or equipment
damage.
Disconnect power before wiring.
1. Loosen the terminal screws on the wallplate and
connect the system wires. See Fig. 5.
IMPORTANT
Use 18 gauge, color-coded thermostat cable for
proper wiring.
2. Securely tighten each terminal screw.
3. Push excess wire back into the hole.
4. Plug the hole with nonflammable insulation to pre-
vent drafts from affecting the thermostat.
The two OC terminals can be wired to the TZ-3 panel for
remote operation of the Zone-A-Lone feature during the
Leave and Sleep periods. See Table 2 and the TZ-3
Installation Instructions, form 68-0223, for more
information.
Table 2. Occupied Terminal Operation.
Fig. 3. Typical wiring diagram for T8601D on zone 1
of MiniZone™ or MABS II control panels.
5 FEET
[1.5 METERS]
YES
NO
NO
NO
M10106
WIRES
THROUGH WALL
WALL
MOUNTING
HOLES
M15044
MOUNTING
SCREWS
WALL
ANCHORS (2)
Mode
OC Contacts
Closed Display
Wake No None
Leave Yes None
Return No None
Sleep Yes None
OGB CWRYOCOCOTOT
O1
T8
G1
T7
B1
T6
E1
T5
T4
M1
THERMOSTAT
CHANGEOVER
CONTROL
OUTDOOR
TEMPERATURE
SENSOR
ZONE 1
M12182
