T8601D CHRONOTHERM
®
IV DELUXE ZONE THERMOSTATS
69-1413—2 10
THERMOSTAT INFORMATION

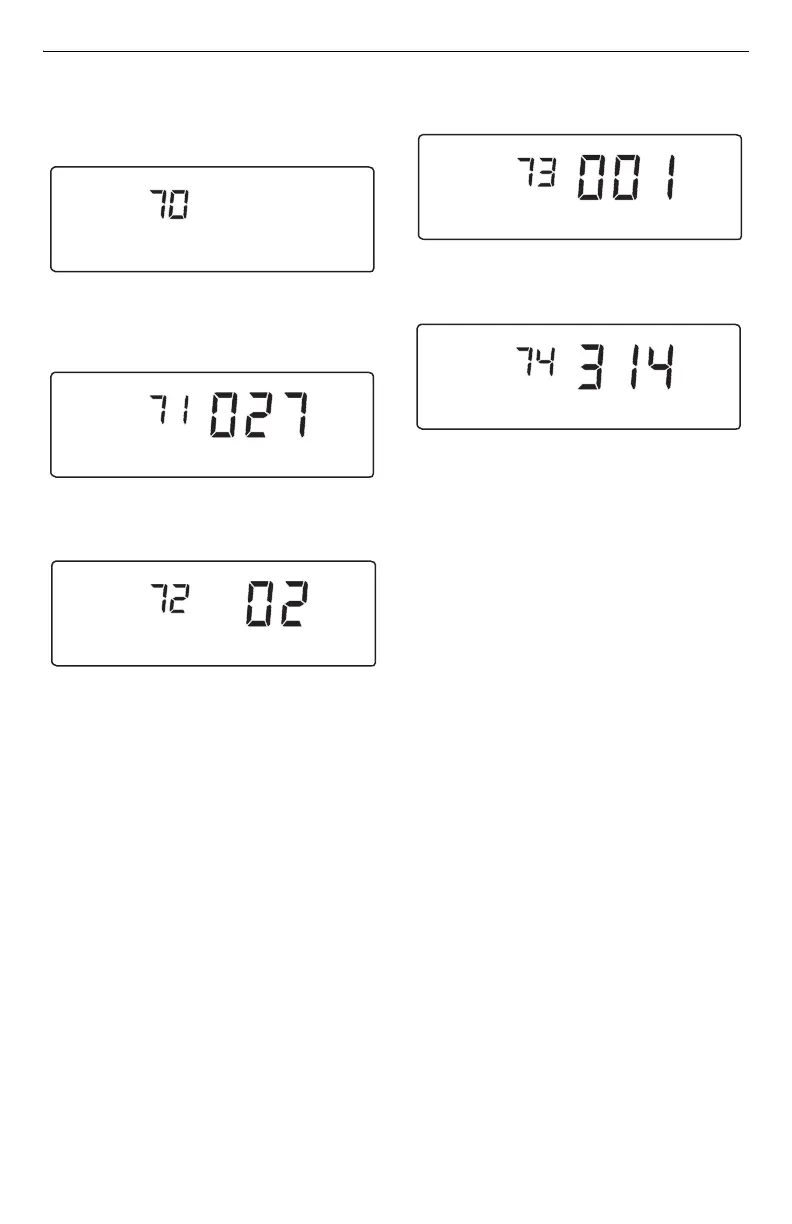

1. Press the Time ∆ key to access the thermostat
information.
2. Press the increase s key to display the production
date code. The first two large digits are the month
and the third digit is the last digit of the year.
(Example: 027 = February 1997).
3. Press the increase s key again to display the soft-
ware identification code. (Example: 02 = software
ID code 2).
4. Press the increase s key again to display the soft-
ware revision number. (Example: 001 = Revision
number 1).
5. Press the increase s key again to display the
EEPROM identification code. (Example: 314 =
EEPROM ID 314).
6. Press the Run Program key to exit the system test.
The system test times out after four minutes
without any key presses.
CHECKOUT
Outdoor Temperature Sensor
(Select Models)
Allow the outdoor temperature sensor to absorb the
outdoor air for a minimum of five minutes before taking a
reading.
M14613
M14614
M14615
M14616
M14617
