T8601D CHRONOTHERM
®
IV DELUXE ZONE THERMOSTATS
3 69-1413—2

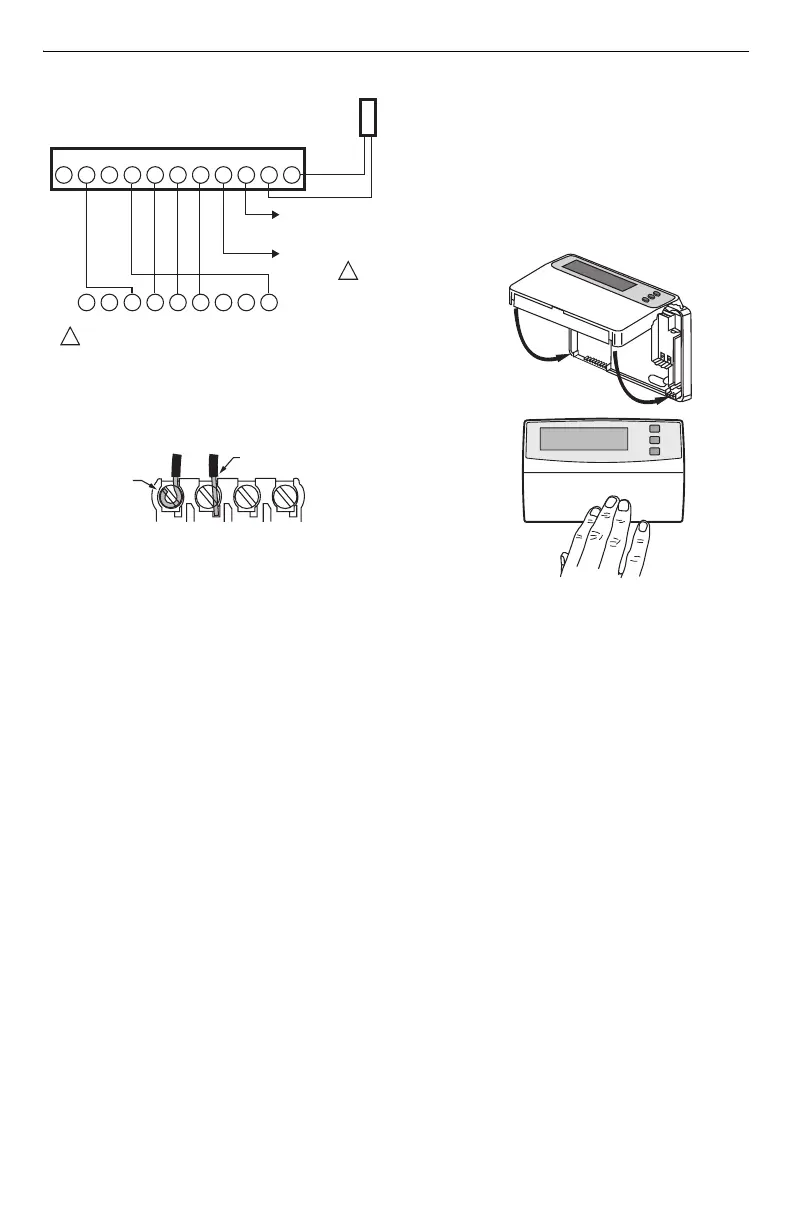

Fig. 4. Typical wiring diagram for T8601D TotalZone®,
EMM-3, EMM-3U, EZ-2, EZ-4 control panels.
Fig. 5. Correct wiring technique.
Mounting Thermostat
1. Engage tabs at the top of the thermostat and wall-
plate. See Fig. 6. Be sure to align subbase pins to
avoid damage to thermostat.
2. Press lower edge of case to close and latch.
NOTE: To remove the thermostat from the wall, first pull
out at the bottom of the thermostat; remove top
last.
Fig. 6. Mounting thermostat on wallplate.
OGB CYRWOCOCOT
W2 L G Y R W M6 M4 M1
OT
THERMOSTAT
TotalZone® PANEL THERMOSTAT CONNECTIONS
C7089B
OUTDOOR
TEMPERATURE
SENSOR
(OPTIONAL)
M12183A
TO OC ON TZ-3
(USE ON ZONE 1
THERMOSTAT ONLY)
TO OC ON TZ-3
1
1
O,B AND STAGE JUMPER MUST BE CONFIGURED FOR TZ-3.
M4826
FOR WRAPAROUND
INSERTION STRIP
7/16 IN. (11 MM).
FOR STRAIGHT INSERTION
STRIP 5/16 IN. (8 MM).
M14634
PRESS LOWER
EDGE OF CASE
TO LATCH.
ENGAGE TABS
AT TOP OF
THERMOSTAT
AND WALLPLATE.
A.
B.
69-1413-2.fm Page 3 Wednesday, July 13, 2005 10:07 AM
