T8601D CHRONOTHERM
®
IV DELUXE ZONE THERMOSTATS
9 69-1413—2

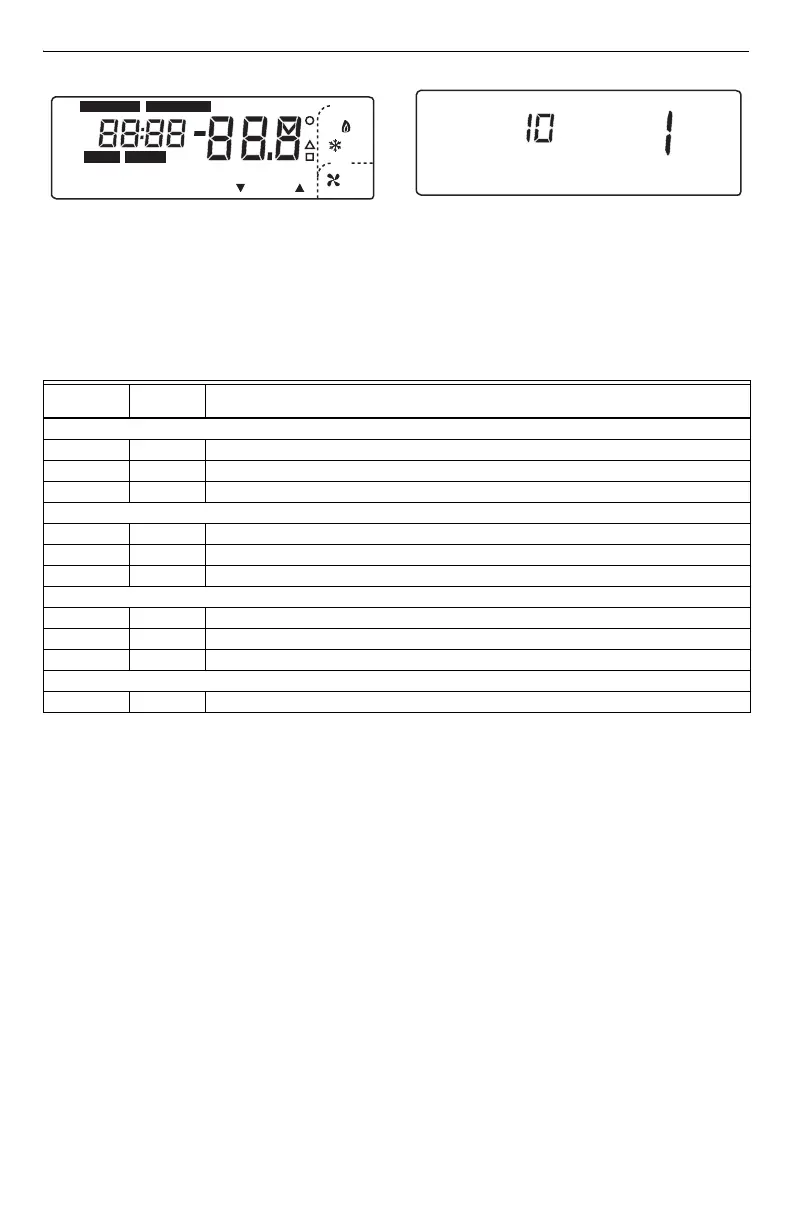

Fig. 10. Display of all LCD segments.
Fig. 11. Display of test number.
Refer to Table 6 for the directions and results of the
specific tests.
NOTE: Press Time ∆ to advance to the next test and
Time ∇ to go back to the previous test. Press
Run Program to exit the system test.
Table 6. Installer System Test Options.
NOTE: Press any key and the displayed numbers change. Press Time ∇ to go to the previous test and Time ∆ to go to
the next test. The Run Program key does not exit this test. Press Time ∆ or Time ∇ and then the Run Program
key to exit.
M14559
Aux Ht
Set Day/TimeSet Program
Mon
Wake Leave Return Sleep
OutdoorRoom
Filter
Wait
System
Fan
Em Heat
On
Auto
Off
Cool
Auto
AM
PM
Hold for
Heat
Cool
Repl Batt
Recovery
DST
Tue Wed Thu Fri Sat Sun
Days
Temporary Setting
Em Ht
M14612
Keys to
Press
Test
Number Description
Heating Equipment Self-Test
Time ∆ 10 Enter heating equipment self-test.
s
11 Heat comes on. When Installer Setup number 2 is 1, the system fan is also energized.
t
10 Heat and system fan turn off.
Cooling Equipment Self-Test
Time ∆ 30 Change from heating to cooling equipment self-test.
s
31 Cool and system fan come on.
t
30 Cool and system fan turn off.
Fan Equipment Self-Test
Time ∆ 40 Change from cooling to fan equipment self-test.
s
41 Fan comes on.
t
40 Fan turns off.
Key Operation Self-Test
Time ∆ 60 Change from fan to key operation self-test.
69-1413-2.fm Page 9 Wednesday, July 13, 2005 10:07 AM
