Operating Manual
2
33-00251EFS—01
Quick reference
The RedLINK Internet Gateway connects to an internet router with a standard
Ethernet cable (provided). The Gateway is then connected to the power adapter
(provided) and plugged into a wall outlet as shown below.

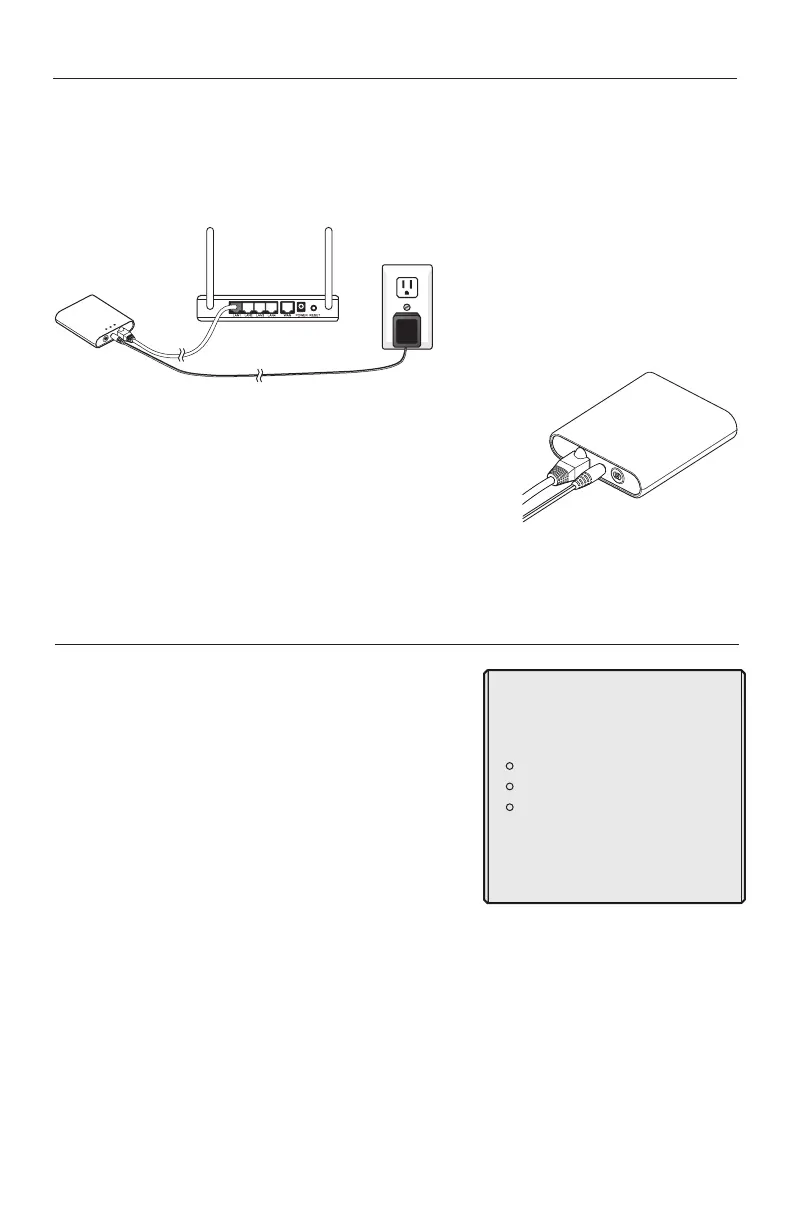

Connect RedLINK Gateway to a router
or modem with Ethernet cable.
Connect power
cord to an
electrical outlet
not controlled by
a wall switch.
The MAC ID and MAC CRC, found on the bottom of
the device, are used to register the Gateway at
www.mytotalconnectcomfort.com for on-line remote
access of your climate control system.
INTERNET
POWER
REDLINK
INTERNET
POWER
RED
LINK
Internet LED
Solid Red: No Ethernet Connection (cable disconnect-
ed or Ethernet connection error)
Solid Amber: Ethernet Connection Detected (cable
connected and Gateway is retrieving the IP address)
Blinking Amber: Acquiring DHCP
Blinking Green: Data Exchange with TCC
Solid Green: Normal, Connected to TCC
RedLINK LED
Off: The Gateway is not connected to the RedLINK
system
Green (flashing): The Gateway is connecting to the RedLINK system
Green: The Gateway is connected to the RedLINK system
Red: The RedLINK Internet Gateway is not communicating with the RedLINK system.
Power LED
Solid Green: The Gateway is powered
Quick reference to LEDs
INTERNET
POWER
REDLINK
