Honeywell GmbH 6 MU1H-1369GE23 R0511
GB

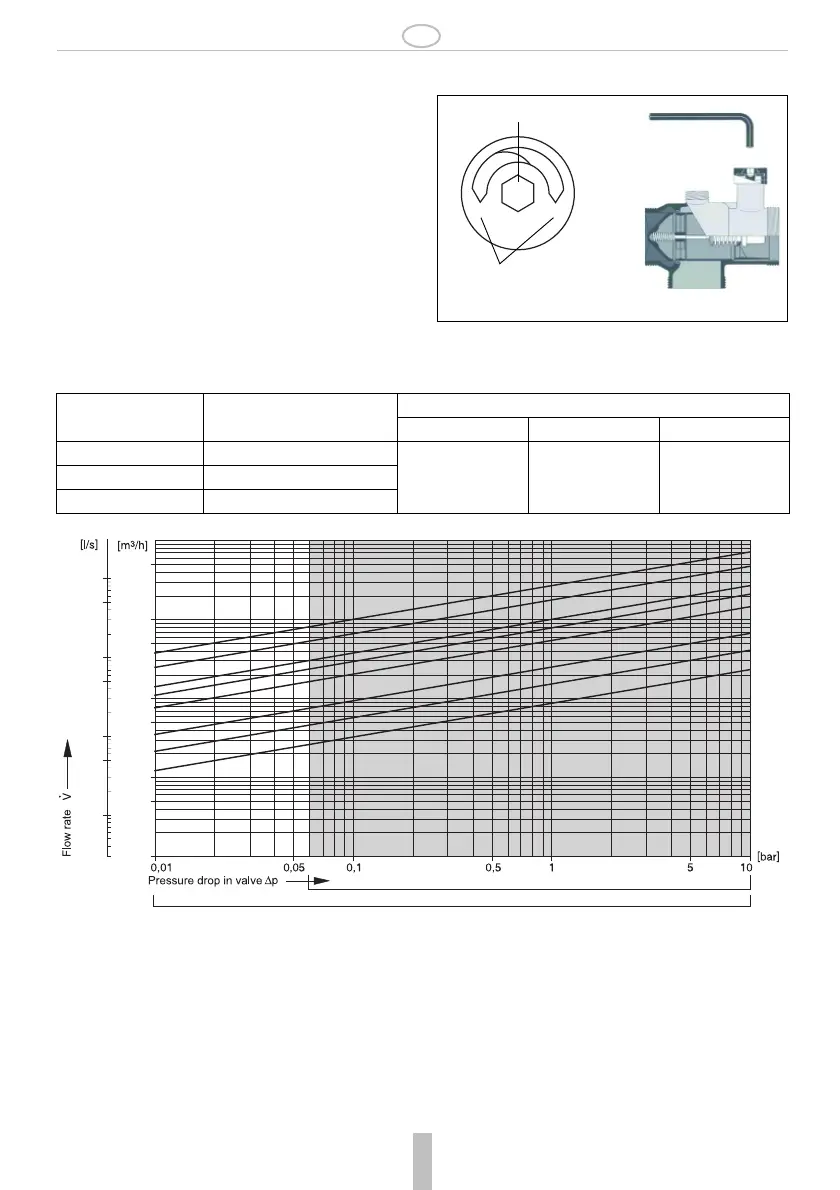

9. Commissioning
Changing the standard temperature
TM3400 - TM3410 thermostatic mixing valves are fitted with
a thermostatic element set to a standard temperature and are
adjusted at the factory to the standard temperature (shown in
the centre of temperature plate F, and on the packaging).
This temperature can only be changed within the limits of the
corresponding adjustment range for the mixed water.
To make a change proceed as follows:
1. Temperature plate is pierced in the centre using hexa-
gonal key included in the packaging.
2. Turning the screw clockwise raises the temperature of
mixture; accordingly to lower it, turn the key in an anti-
clockwise direction.
The temperature of the hot water should be at least 5 K more
than that of the mixed water.
48
36 53
°C
Pre-set adjustment value
Limits for the mixed water
adjustment range
10. Disposal
Red bronze housing
Stainless steel cut-off switch
Standard temperature
set in the factory °C
Limits of the mixed water adjust-
ment ranges °C
Adjustment of the mixed water temperature with 1 key turn
GN ½ - 1 GN 1¼ -2 DN 65 and 80
40 30-45
aprox. 6 K aprox. 4 K aprox. 2 K48 36-53
55 45-65
Tolerance of the adjustment value ±1 °K
Tolerance of the adjustment value ±2 °K
0,01
0,05
0,01
1
/2"
3
/4"
1"
1
1
/4"
1
1
/2"
2"
DN65
DN80
0,1
0,5
1,0
5,0
10
0,05
0,1
0,5
1,0
5,0
10
50
