AUTOMATIC OPPOSED BLADE DAMPERS (AOBD)
7 68-0246

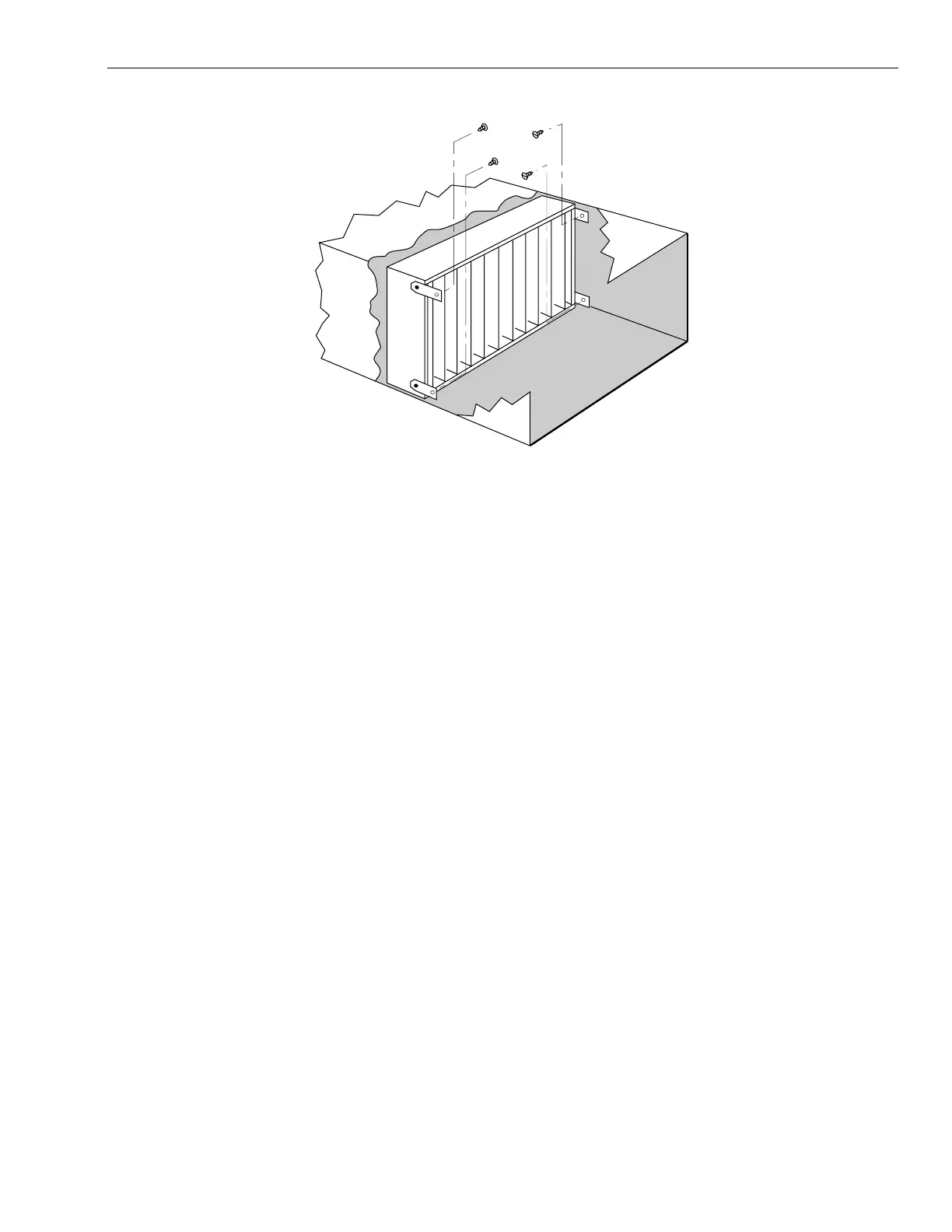

Fig. 10. Installing IOBD.
USE 1/4 IN. (6 MM)
SHEET METAL SCREWS
(PROVIDED) THROUGH
MOUNTING TABS.
M515A
