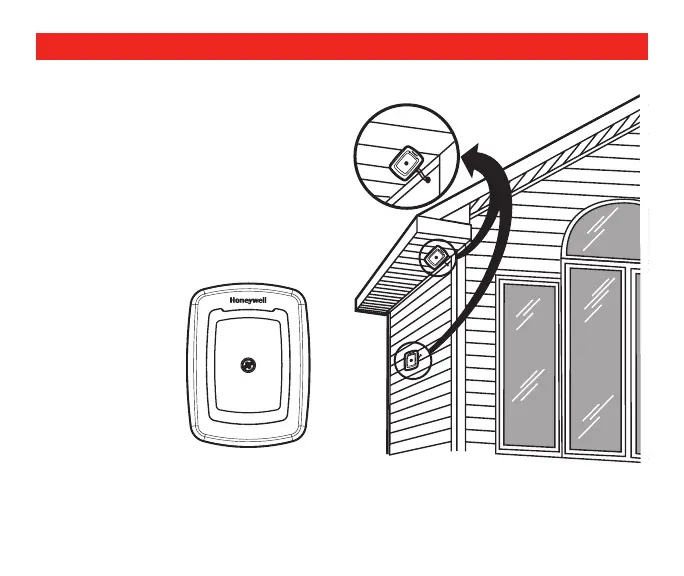

Mounting the outdoor sensor
1. Do not mount on the south side of the house or in direct exposure to sunlight.
2. Keep at least 4 feet away from exhaust
vents.
3. If in an air intake, place 1 foot closer to
outside wall.
4. Place at least 6 inches higher than
possible snow buildup.
5. Do not route sensor wire near high
voltage wires.
Note: The sensor can be extended using
18-gauge wire.
M24821
M24822
