V4055A,B,D,E ON-OFF FLUID POWER GAS VALVE ACTUATOR
60-2309—10 4
Accessories:
133533A Short Stem Adapter for mounting actuator on V5034
Valve.
133534A Long Stem Adapter for mounting actuator on V5034
Valve.
133568 Auxiliary Switch Bag Assembly (not for models with
maximum flow limit switch).
133569 Valve-Closed Indication Switch Bag Assembly (not for
use with V5034 Valve body).
7616BR Damper Crank Arm (damper arm and clip).
Q5055A1001 Adapter Assembly (adapts ITT General V710
Gas Valve to accept Honeywell gas valve actuators.
Replaces ITT General AH2 Gas Valve actuators).
Available Models: V4055 with NEMA 4 enclosure
(weatherproof).

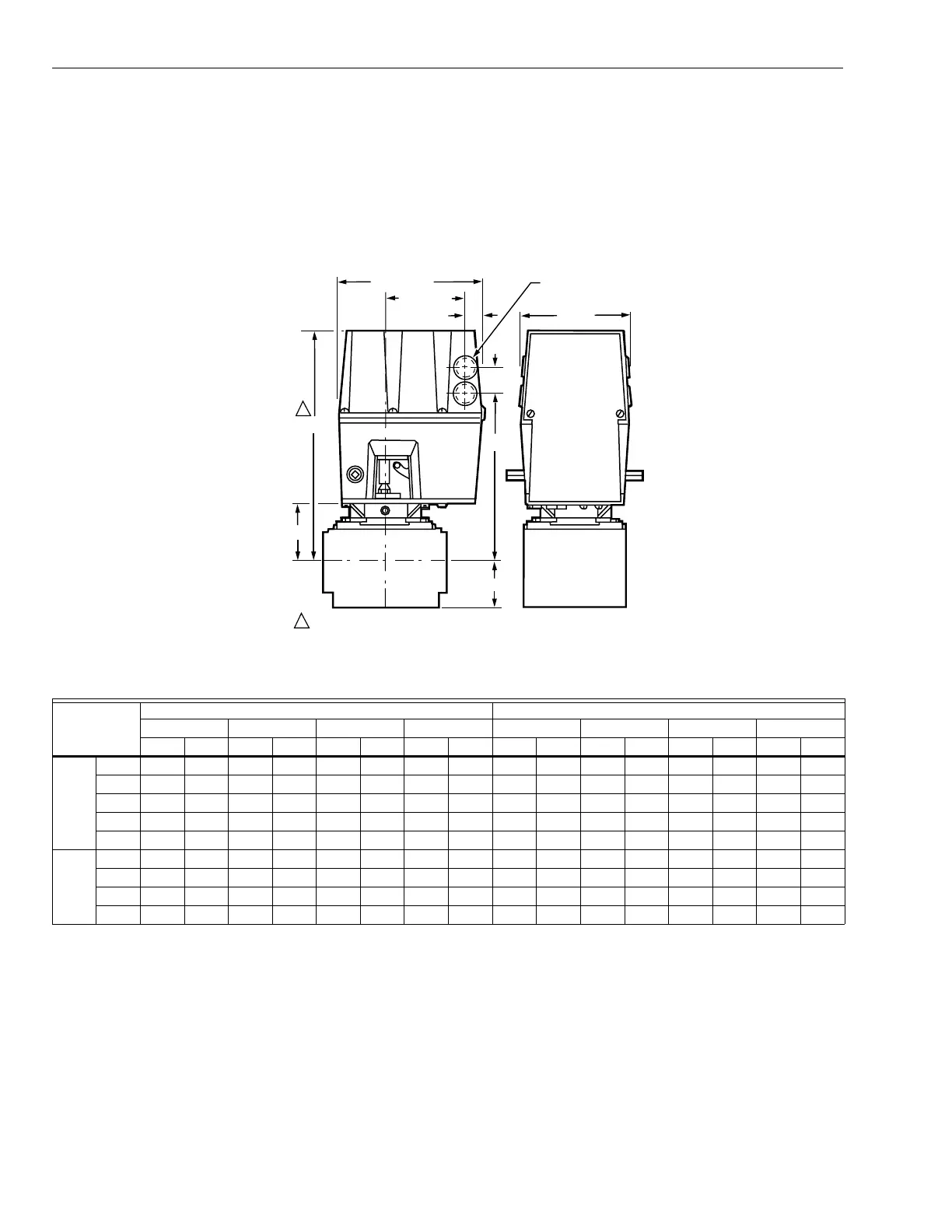

Fig. 1. Approximate mounting dimensions of V4055 Actuators in in. (mm).
Table 7. Approximate Mounting Dimensions of V4055 Actuators with V5055 and V5097 Valves.
a
Valve size using accessory pipe adapter fitting.
Valve Size
a
(in.)
V5055 V5097
Dim. A Dim. B Dim. C Dim. D Dim. A Dim. B Dim. C Dim. D
in. mm in. mm in. mm in. mm in. mm in. mm in. mm in. mm
Small
Body
3/4 11-1/8 283 2-3/4 70 8-3/16 208 5-3/4 146 11-1/8 283 2-3/4 70 8-3/16 208 2-1/2 64
1 11-1/8 283 2-3/4 70 8-3/16 208 5-3/4 146 11-1/8 283 2-3/4 70 8-3/16 208 2-/12 64
1-1/4 11-1/8 283 2-3/4 70 8-3/16 208 5-3/4 146 11-1/8 283 2-3/4 70 8-3/16 208 2-1/2 64
1-1/2 11-1/8 283 2-3/4 70 8-3/16 208 5-3/4 146 11-1/8 283 2-3/4 70 8-3/16 208 2-1/2 64
2 11-1/8 286 2-7/8 73 8-5/16 211 8-3/8 213 11-3/4 298 3-3/8 86 8-3/8 213 4 102
Large
Body
2 11-3/4 298 3-3/8 86 8-13/16 224 9-1/4 235 1-3/4 298 3-3/8 86 8-3/8 213 4 102
2-1/2 11-3/4 298 3-3/8 86 8-13/16 224 9-1/4 235 11-3/4 298 3-3/8 86 8-3/8 213 4 102
3 11-3/4 298 3-3/8 86 8-13/16 224 9-1/4 235 11-3/4 298 3-3/8 86 8-3/8 213 4 102
4 14-1/8 359 5-13/16 148 11-7/32 285 12-1/2 318 — — — — — — — —
D
A
1
1
(33)
KNOCKOUT FOR
1/2 INCH CONDUIT (4)
5 (127)
1-9/32
27/32 (21)
3-23/32 (95)
6-3/4 (172)
C
B
ALLOW 4 INCH (102 MM) CLEARANCE FOR ACTUATOR REMOVAL. M1775
VALVE
VALVE
