Honeywell VERSAFLOW MAG 1000 - Flange Deviation; Pump; Control Valve

INSTALLATION 2
13
VERSAFLOW MAG 1000
www.honeywellprocess.com34-VF-25-54 iss.3 GLO July 14 US
2.8.6 Flange deviation
2.8.7 Pump
2.8.8 Control valve
CAUTION!
Max. permissible deviation of pipe flange faces:
L
max
- L
min
≤ 0.5 mm / 0.02"

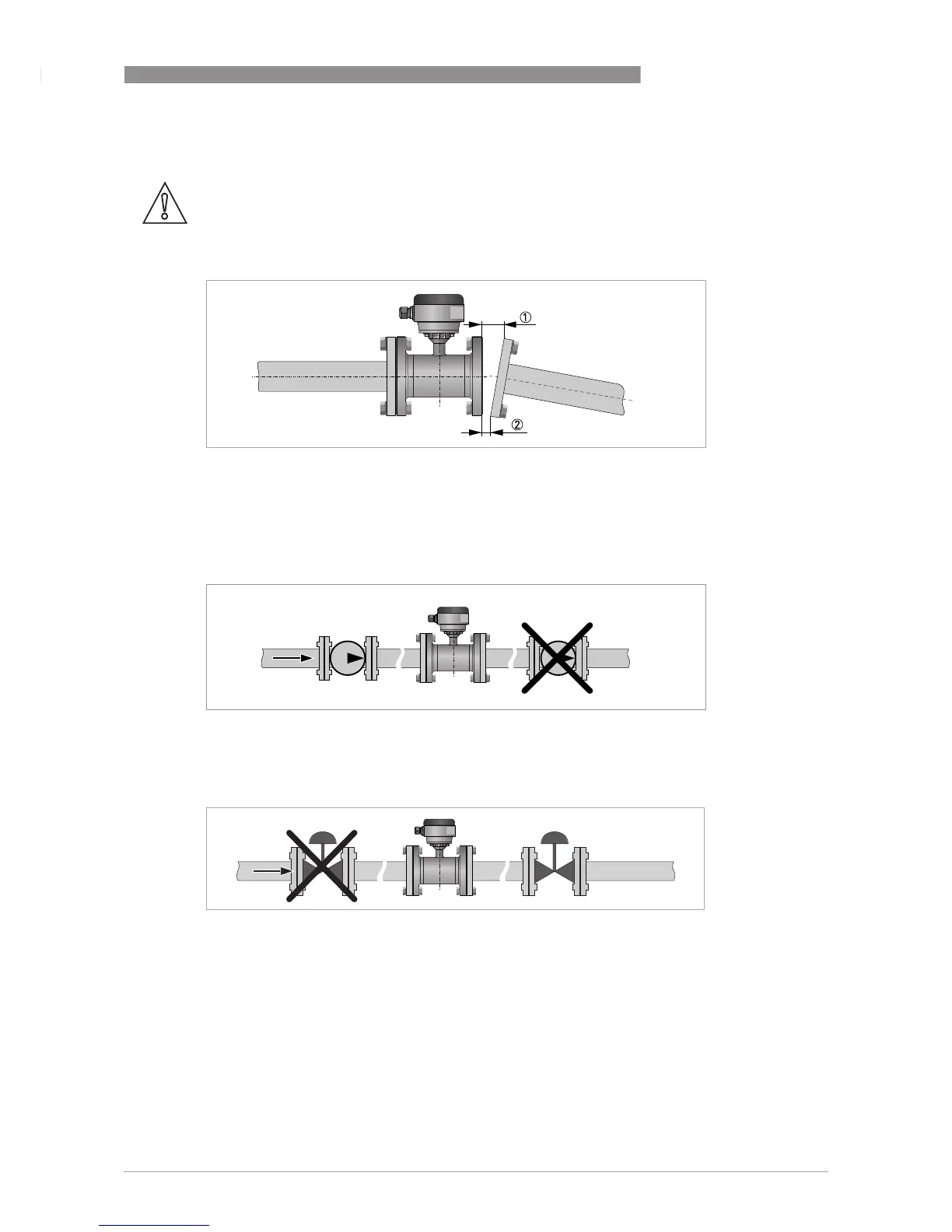

Figure 2-13: Flange deviation
1 L
max
2 L
min
Figure 2-14: Installation behind a pump
Figure 2-15: Installation in front of a control valve
