2.1 Device description
Vortex flowmeters measure and display the flow of flammable and non-flammable gases and
liquids. The signal converter includes either a 4...20 mA signal output with optional HART
®
communication or a bus connection. There are bus connections available for connecting to a
Foundation Fieldbus or Profibus PA. Signal converters with signal output have a separate binary
output and a separate current input.
The VersaFlow Vortex 200 remote version consists of the VersaFlow Vortex 200F flow sensor and
the TWV 9200...-Ex signal converter.
2.2 Marking
The marking of the devices in accordance with the description code is shown on the nameplates
below. On both the compact devices and the remote versions, the main plate is located on the
signal converter housing. On the remote versions there is an additional marking on the flow
sensor.
Compact versions with two signal converters for dual measurement (dual version) are each
marked with a nameplate, which is attached to each of the signal converter housings.
The details relevant to explosion protection are identical on both nameplates.

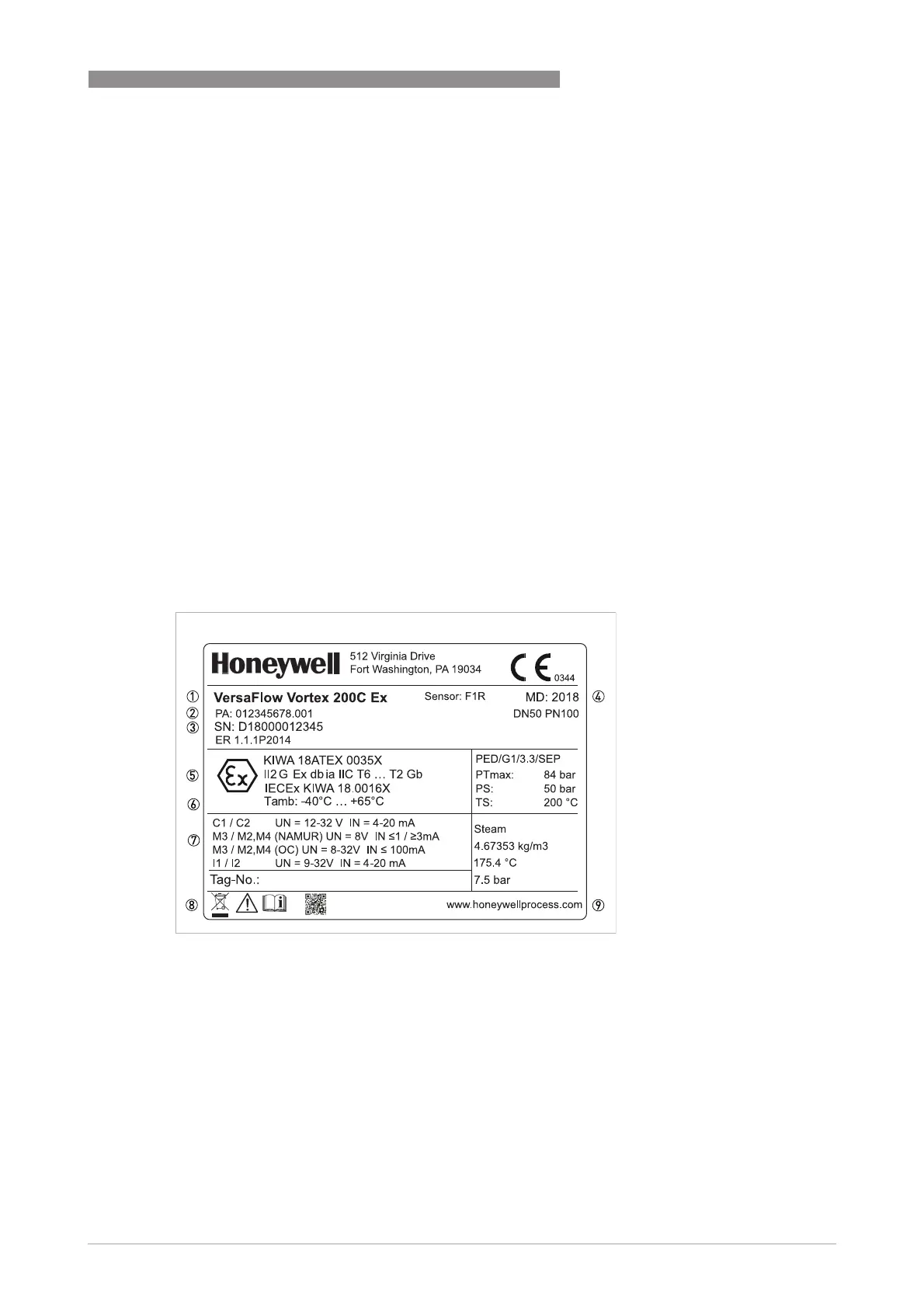

Figure 2-1: Example of a nameplate for the compact version
1 Device version VersaFlow Vortex 200 C
2 Production order number
3 Serial number
4 Year of manufacture
5 Marking according to KIWA 18 ATEX 0035X and IECEx KIWA 18.0016X
6 Permissible ambient temperature range
7 Electrical connection data
8 Safety instructions, disposal and data matrix
9 Internet address of the manufacturer
