11 EN2R-9004 0606R20-NE

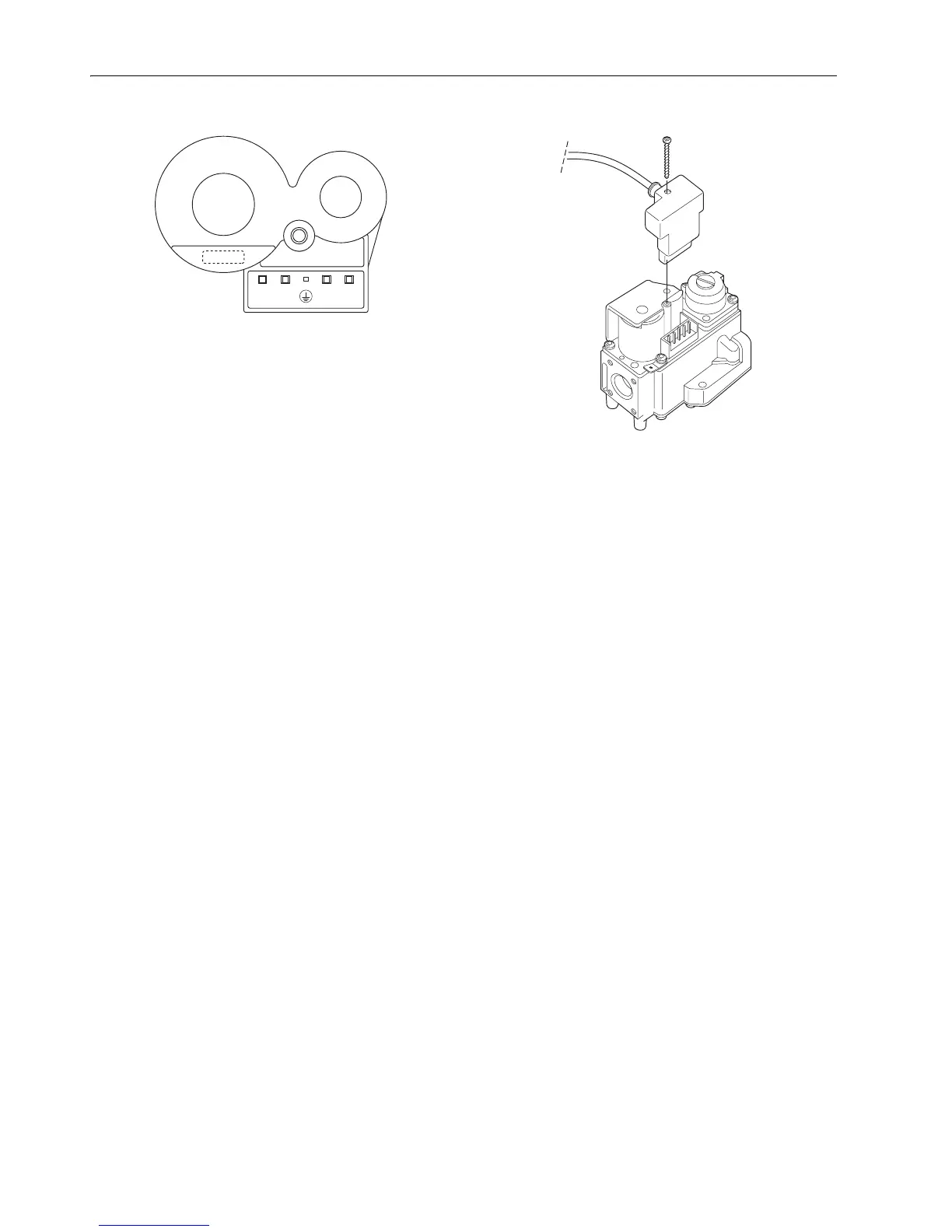

Fig. 1. Coil connection
Rectifier plug
The 220/240 V,110V and 24 V versions of the VK4105/
VK8105 series gas controls can be connected to any standard
DBI control with a 220/240 Vac, 110V or 24 Vac output by
using a rectifier plug 45.900.441- See table 11.
Electical protection of gas control with rectifier plug
IP 40
Mounting of rectifier plug
fig. 2 .
Mounting screw
Torque: 40 Ncm max.
Fig. 2. Mounting of rectifier plug
IMPORTANTIMPORTANT
Warranty claims are not accepted if not the specified
plug/rectifier circuit is used.
V1
1Pin number 2 3 4 5
V2
